3000SH - 2012-2015 - 2T2000383/M12 - Mountfield Ride On Mower Cylinder Barrel Diagram

Name: 3000SH - 2012-2015 - 2T2000383/M12 - Mountfield Ride On Mower Cylinder Barrel Diagram
SKU: 3000sh_2t2000383_m12_cylinder_barrel-group
Price: 0.81 GBP
Availability: InStock

Part No. 3000sh_2t2000383_m12_cylinder_barrel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

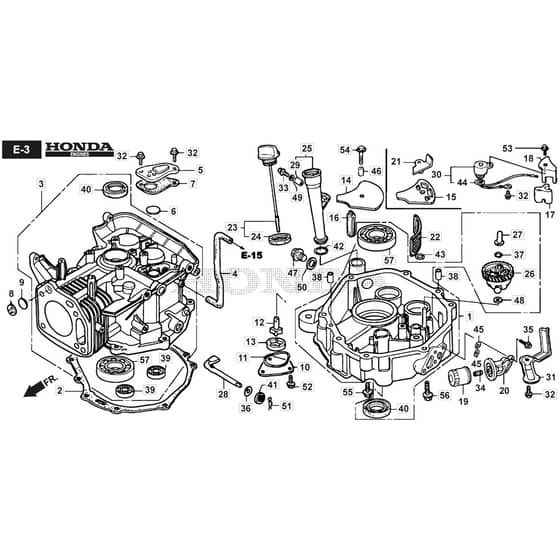

3000SH - 2012-2015 - 2T2000383/M12 - Mountfield Ride On Mower Cylinder Barrel Diagram

Description

Mountfield 3000SH Parts Diagram

Product Name - 3000 SH

Model Year - 2012-2015

Model Type - MP 84 Hydro

Art.N - 2T2000383/M12

Engine Model - Honda GXV 390

	Part No.	Details
-1	HP11300-Z1E-407 Available to backorder		£395.28 £329.40

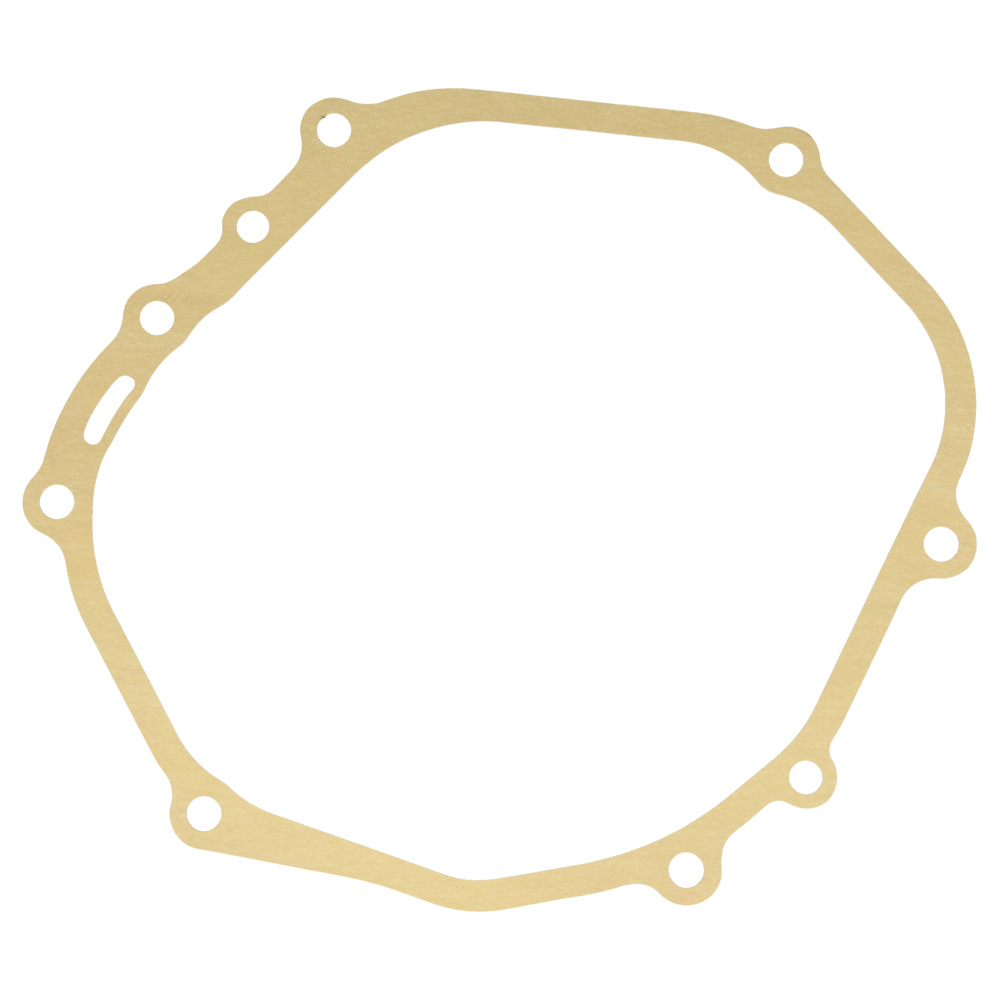

2	HP11381-ZE9-801 Available to backorder	Packing. Oil Pan	£13.91 £11.59
3	HP12000-Z1E-405 Available to backorder	Barrel Assy. Cylinder	£1,029.60 £858.00
4	HP12315-ZF5-000 Available to backorder	Tube. Breather	£11.52 £9.60
7	HP12373-ZE8-000 Available to backorder	Packing. Breather Cap	£2.41 £2.01
10	HP15130-ZE8-000 Available to backorder	Cover. Oil Pump	£8.20 £6.83
11	HP15131-ZE9-003 Available to backorder	O-Ring. Pump Cover	£3.42 £2.85
12	HP15330-ZE8-000 Available to backorder	Rotor Comp. Inner	£26.20 £21.83
13	HP15332-891-003 Available to backorder	Rotor. Oil Pump Outer	£20.83 £17.36
22	HP15421-ZE9-003 Available to backorder	Screen. Oil Filter	£17.54 £14.62

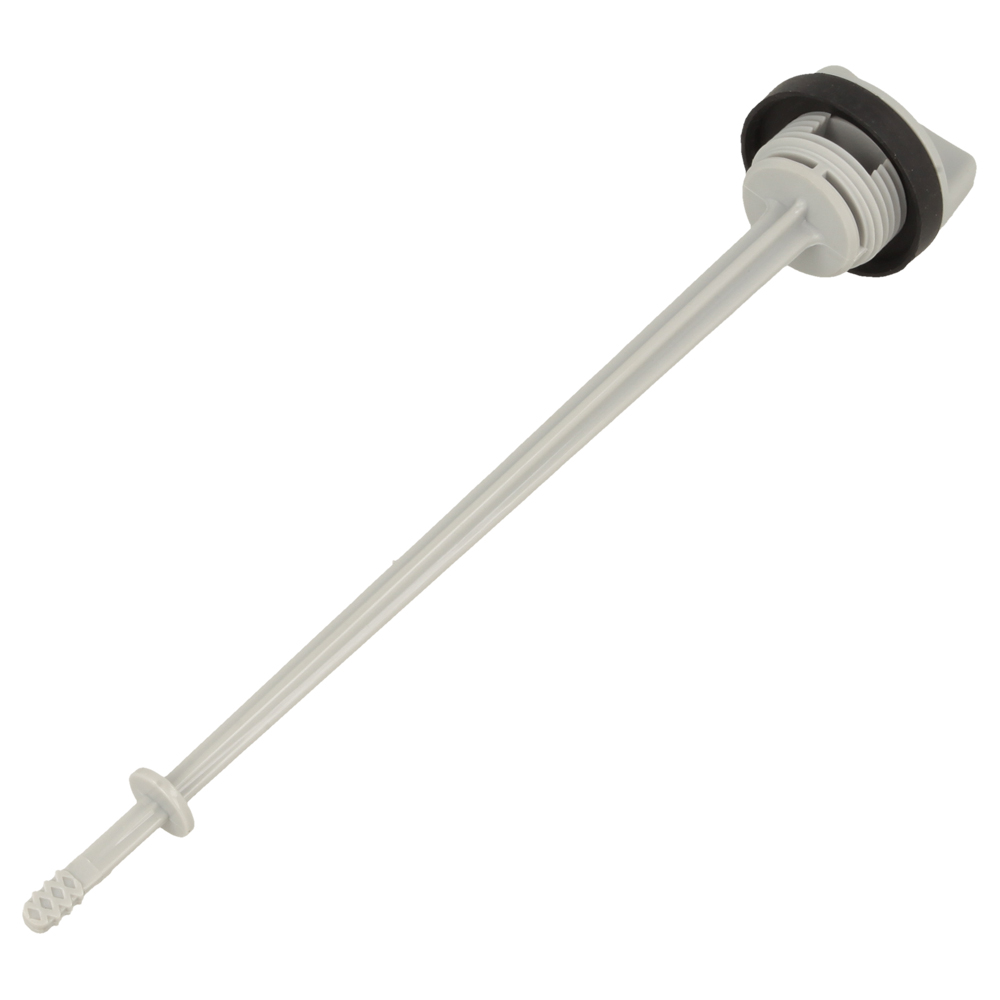

23	HP15600-Z5N-800 Available to backorder	Cap Assy. Oil Filler	£17.23 £14.36
24	HP15625-ZE8-000 Available to backorder	Packing. Oil Filler Cap	£4.09 £3.41

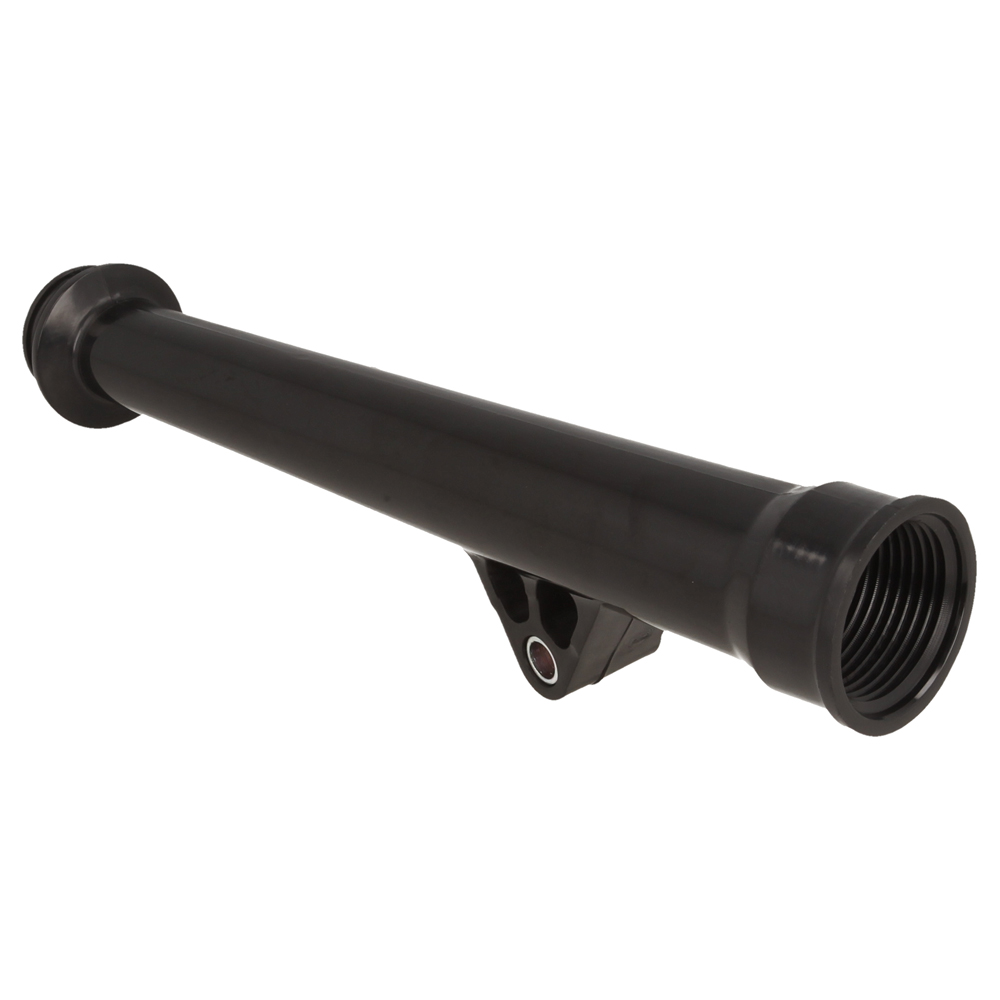

25	HP15630-Z5N-800 Available to backorder	Extension Comp. Oil Filler	£26.10 £21.75

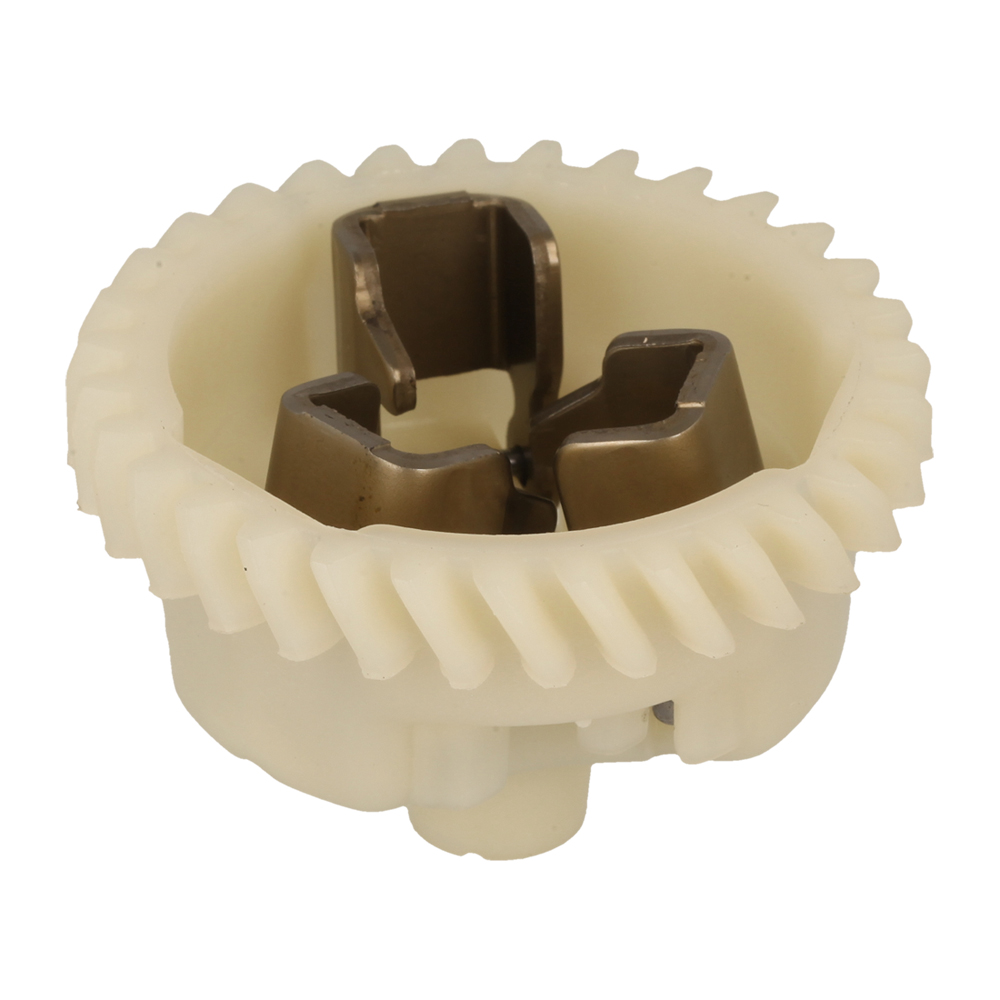

26	HP16510-ZE3-000 Available to backorder	Governor Assy.	£34.98 £29.15
27	HP16531-Z0A-000 Available to backorder	Slider. Governor	£3.16 £2.63
28	HP16541-ZE8-010 Available to backorder	Shaft. Governor Arm	£12.07 £10.06
32	HP90013-883-000 Available to backorder	Bolt. Flange. 6X12 (Ct200)	£4.34 £3.62
33	HP90014-ZE6-000 Available to backorder	Bolt. Flange. 6X35 (Ct200)	£3.55 £2.96
37	HP90602-ZE1-000 Available to backorder	Clip. Governor Holder	£3.73 £3.11
38	HP90701-HC4-000 Available to backorder	Dowel Pin. 8X12	£3.35 £2.79
39	HP91001-ZF5-003 Available to backorder	Bearing. Radial Ball. 6202	£15.78 £13.15

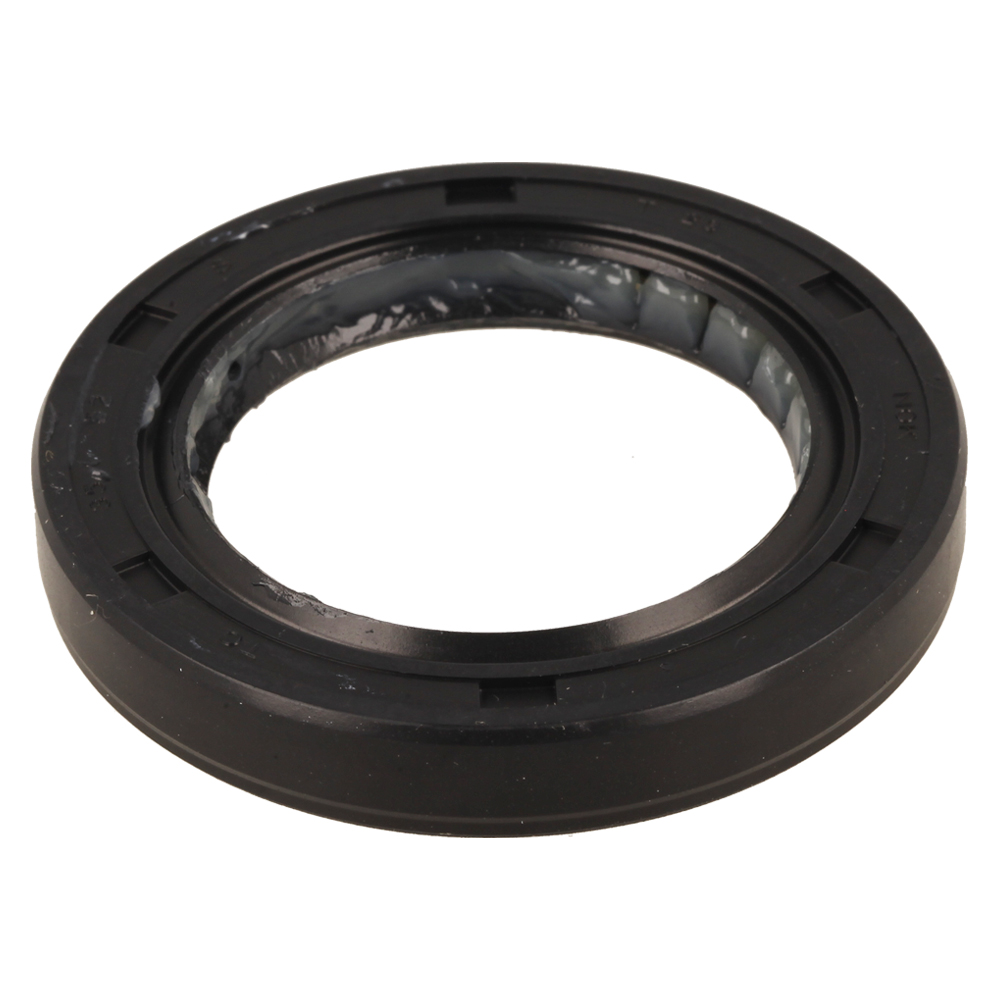

40	HP91201-Z1C-003 In stock	Oil Seal. 35X52X8 (Nok)	£15.42 £12.85
41	HP91201-ZE9-003 Available to backorder	Oil Seal. 8X14X5	£4.33 £3.61
42	HP91301-ZE9-003 Available to backorder	O-Ring. 22.1X2.2	£1.90 £1.58
43	HP91302-ZE9-003 Available to backorder	O-Ring. 11.8X2.4	£3.94 £3.28
48	HP94101-06800 Available to backorder	Washer. Plain. 6mm	£1.03 £0.86
49	HP94103-06700 Available to backorder	Washer. Plain. 6mm	£1.20 £1.00
50	HP94109-20000 Available to backorder	Washer. Drain Plug. 20mm	£1.20 £1.00
51	HP94251-10000 Available to backorder	Pin. Lock. 10mm	£1.68 £1.40
52	HP95701-0601200 In stock	Bolt. Flange. 6X12	£0.97 £0.81
54	HP95701-0602500 Available to backorder	Bolt. Flange. 6X25	£1.12 £0.93
55	HP95701-0804008 In stock	Bolt. Flange. 8X40	£2.03 £1.69
56	HP95701-0806008 In stock	Bolt. Flange. 8X60	£2.21 £1.84
57	HP96100-6207000 Available to backorder	Bearing. Radial Ball. 6207	£32.94 £27.45

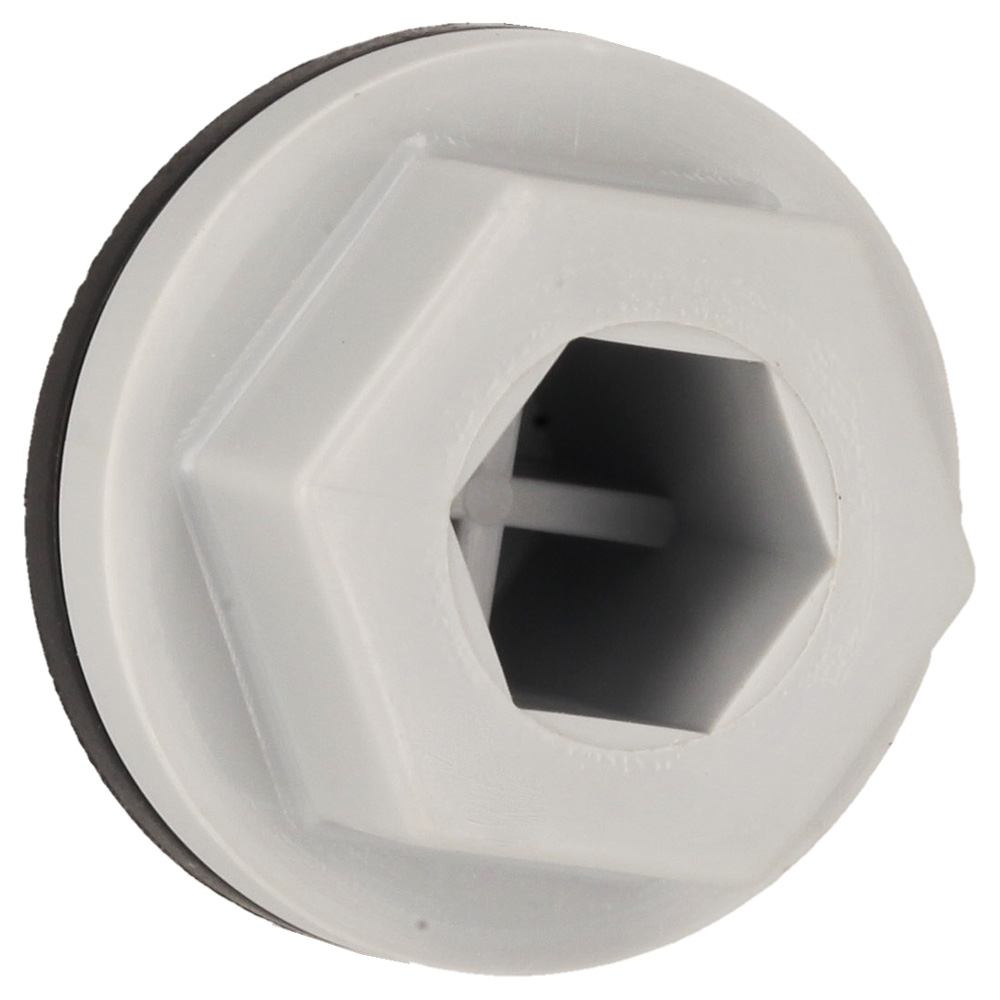

58	HP15550-Z0A-810 Available to backorder	Cap Assy. Drain	£8.92 £7.43
59	HP15625-ZE1-003 Available to backorder	Packing. Oil Filler Cap	£4.62 £3.85
