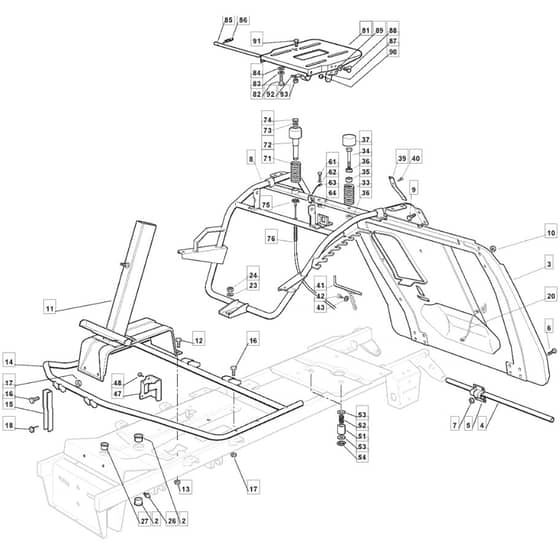

2800SH - 2011-2013 - 2T0210383/M10 - Mountfield Ride On Mower Frame Diagram

Description

Mountfield 2800SH Parts Diagram

Product Name - 2800 SH

Model Year - 2011-2013

Model Type - F 72 Hydro

Art.N - 2T0210383/M10

	Part No.	Details
1	MO125034002/1 Available to backorder	Bushing	£3.79 £3.16
3	MO384545057/3 Available to backorder	Rear Plate	£161.89 £134.91
4	MO127037000/1 Available to backorder	Rear Plate Fulcrum	£8.86 £7.38
5	MO325547012/1 Available to backorder	Plate	£4.24 £3.53
6	MO112791213/1 In stock	Screw	£1.55 £1.29
7	MO112292102/0 In stock	Nut	£1.70 £1.42
9	MO112792611/0 In stock	Screw	£1.55 £1.29
11	MO384783027/0 Available to backorder	Steering Column Support	£53.50 £44.58
14	MO384801107/3 Available to backorder	Footboard Support	£50.69 £42.24
15	MO327787025/0 Available to backorder	Support	£3.10 £2.58
20	MO384040300/0 Available to backorder	Rear Plate	£3.38 £2.82
24	MO112155000/0 In stock	Nut	£1.55 £1.29
26	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
27	MO125034001/0 Available to backorder	Brass	£3.79 £3.16
33	MO127430575/0 Available to backorder	Spring	£6.19 £5.16
35	MO112293200/0 In stock	Nut	£1.55 £1.29
36	MO112293201/0 In stock	Nut	£1.70 £1.42
37	MO325122000/2 Available to backorder	Cap	£1.63 £1.36
39	MO127430600/0 Available to backorder	Spring	£2.82 £2.35
40	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
41	MO127294001/0 Available to backorder	Rear Conveyor Guide	£20.40 £17.00
42	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
43	MO112523040/0 In stock	Washer	£1.55 £1.29
47	MO327772095/0 Available to backorder	Micro Handbrake Stirrup Support	£1.55 £1.29
48	MO112735105/0 Available to backorder	Screw	£1.55 £1.29
51	MO127047012/0 Available to backorder	Fast Release Bush Rider	£13.09 £10.91
52	MO127430577/0 Available to backorder	Spring	£5.92 £4.93
53	MO325670008/1 In stock	Washer	£1.55 £1.29
54	MO112000955/0 Available to backorder	Benzing Ring	£1.33 £1.11
61	MO112791200/1 In stock	Screw	£1.55 £1.29
62	MO112521340/0 Available to backorder	Washer	£1.46 £1.22
63	MO125430239/1 Available to backorder	Spring	£1.97 £1.64
71	MO127430581/0 Available to backorder	Spring	£4.24 £3.53
75	MO112609200/0 Available to backorder	Seeger	£1.63 £1.36
76	MO184207106/0 Available to backorder	Cable	£29.57 £24.64
81	MO325547033/1 Available to backorder	Seat Plate To 31-8-2014	£39.42 £32.85
81	MO325547033/2 Available to backorder	Seat Plate From 01-9-2014	£39.42 £32.85
82	MO112793101/0 In stock	Screw	£1.55 £1.29
83	MO112583500/0 In stock	Grower	£1.55 £1.29
84	MO112523060/0 In stock	Washer	£1.55 £1.29
85	MO127864052/1 Available to backorder	Seat Fulcrum Rod	£6.64 £5.53
86	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
87	MO327063021/1 Available to backorder	Cam	£7.86 £6.55
88	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
89	MO112523020/0 In stock	Washer	£1.55 £1.29
91	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
92	MO125430247/0 Available to backorder	Spring	£6.19 £5.16
93	MO112154330/0 In stock	Low Self-Locking Nut M5 Uni7474 Acc.6S	£1.55 £1.29
