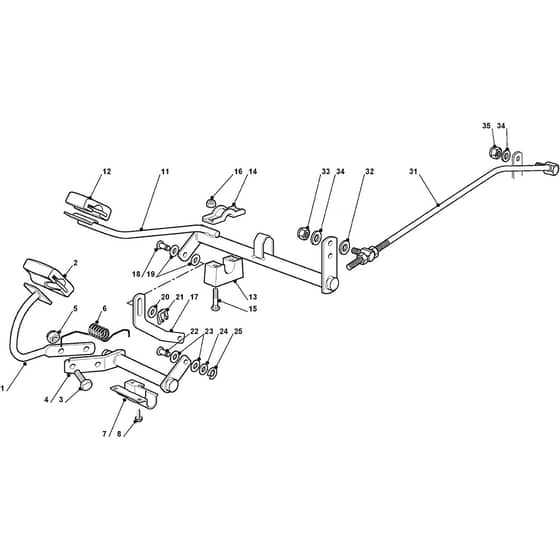

2548H 4WD - 2010 - 2T1525383/M10 - Mountfield Ride On Mower Controls Diagram

Name: 2548H 4WD - 2010 - 2T1525383/M10 - Mountfield Ride On Mower Controls Diagram
SKU: 2548h_4wd_2t1525383_m10_controls-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2548H 4WD - 2010 - 2T1525383/M10 - Mountfield Ride On Mower Controls Diagram

Description

Mountfield 2548H 4WD Parts Diagram

Product Name - 2548H 4WD

Model Year - 2010

Model Type - TH4S 122 HYDRO

Art.N - 2T1525383/M10

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO325110275/0 Out of stock	Clamp Cover	£3.65 £3.04
3	MO112793301/0 Out of stock	Screw	£1.49 £1.24
4	MO382000559/1 Out of stock	Axle	£26.21 £21.84
6	MO125430246/1 Out of stock	Spring	£2.58 £2.15
7	MO325547133/1 Out of stock	Plate	£4.60 £3.83
8	MO112731601/0 Out of stock	Screw	£1.90 £1.58
12	MO325110274/0 Out of stock	Clamp Cover Front	£6.91 £5.76
13	MO325785185/0 Out of stock	Support	£3.53 £2.94
14	MO327546015/2 Out of stock	Plate From 01-9-2013	£1.49 £1.24
15	MO112815245/0 Out of stock	Screw	£1.49 £1.24
17	MO325547207/0 Out of stock	Plate	£7.24 £6.03
21	MO112436050/0 In stock	Plate	£1.75 £1.46
22	MO125510085/1 Out of stock	Pin	£1.49 £1.24
23	MO325670011/0 Out of stock	Antifriction Washer	£1.49 £1.24
24	MO112521350/0 In stock	Washer	£1.63 £1.36
25	MO112000930/0 In stock	Circlip Ø6	£1.63 £1.36
32	MO112523060/0 Out of stock	Washer	£1.49 £1.24
33	MO112155000/0 In stock	Nut	£1.63 £1.36
34	MO112523040/0 In stock	Washer	£1.63 £1.36
35	MO112154510/0 In stock	Nut	£1.63 £1.36
