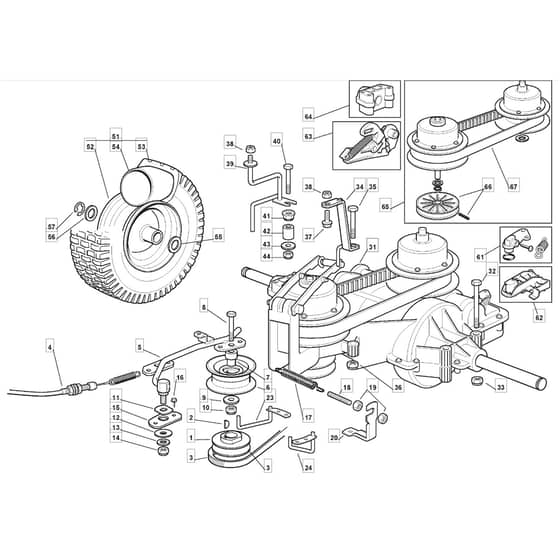

Mountfield 2500SV Parts Diagram

Product Name - 2500 SV

Model Year - 2011-2013

Model Type - ELV 63

Art.N - 2T0313483/UM9

	Part No.	Details
2	MO112139100/0 In stock	Key	£1.55 £1.29
3	MO135061427/0 Available to backorder	Belt	£36.10 £30.08
4	MO384207103/2 Available to backorder	Cable	£17.74 £14.78
5	MO384317091/0 Available to backorder	Lever	£43.63 £36.36
6	MO127604007/0 Available to backorder	Guide Pulley	£50.69 £42.24
8	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
9	MO112523060/0 In stock	Washer	£1.55 £1.29
11	MO327670054/0 Available to backorder	Washer	£13.68 £11.40
12	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
13	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
14	MO112155000/0 In stock	Nut	£1.55 £1.29
16	MO112735122/0 Available to backorder	Screw	£1.55 £1.29
17	MO125430219/1 Available to backorder	Spring	£3.66 £3.05
18	MO125840005/0 Available to backorder	Tie Rod	£2.94 £2.45
19	MO112293200/0 In stock	Nut	£1.55 £1.29
24	MO382270307/0 Available to backorder	Plate	£18.43 £15.36
31	MO118400973/1 Available to backorder	Transmission Unit	£739.15 £615.96
32	MO112692050/0 In stock	Screw	£1.84 £1.53
35	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
37	MO112793102/0 In stock	Screw	£1.55 £1.29
40	MO112793900/0 Available to backorder	Screw	£1.55 £1.29
41	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
42	MO122170950/0 Available to backorder	Spacer	£1.33 £1.11
43	MO112524010/0 Available to backorder	Washer	£1.84 £1.53
44	MO112150000/0 Available to backorder	Nut	£1.39 £1.16
51	MO384680075/0 Available to backorder	Rear Wheel	£92.86 £77.38
52	MO184044013/0 Available to backorder	Rimm	£54.37 £45.31
53	MO127590059/0 Available to backorder	Tyre 13X5.00-6 Kings	£53.50 £44.58
54	MO127590057/0 Available to backorder	Inner Tube	£16.48 £13.73
55	MO112521410/0 Available to backorder	Washer	£1.92 £1.60
56	MO125670005/2 In stock	Washer	£4.08 £3.40
57	MO112001010/0 In stock	Benzing Ring	£1.84 £1.53
61	MO119700059/0 Available to backorder	Brake Kit	£11.09 £9.24
62	MO119700064/0 Available to backorder	Gearbox Switch	£76.02 £63.35
63	MO119700065/0 Available to backorder	Lever	£61.81 £51.51
64	MO119700061/0 Available to backorder	Bushing	£23.02 £19.18
66	MO119700066/0 Available to backorder	Pulley	£19.92 £16.60
