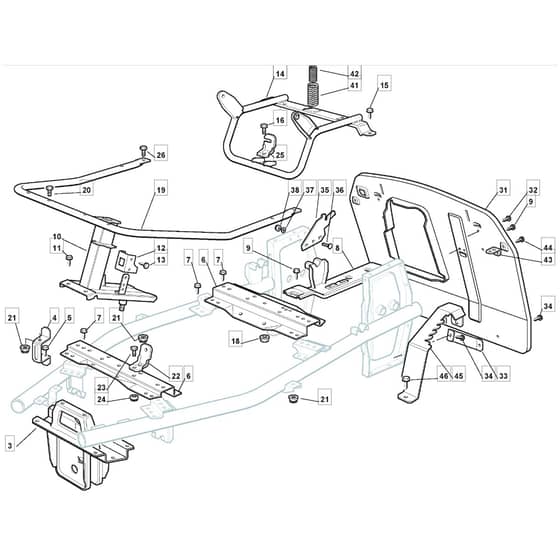

2500SV - 2011-2013 - 2T0313483/UM9 - Mountfield Ride On Mower Frame Diagram

Description

Mountfield 2500SV Parts Diagram

Product Name - 2500 SV

Model Year - 2011-2013

Model Type - ELV 63

Art.N - 2T0313483/UM9

	Part No.	Details
12	MO327772095/0 Available to backorder	Micro Handbrake Stirrup Support	£1.55 £1.29
13	MO112735105/0 Available to backorder	Screw	£1.55 £1.29
16	MO112793701/0 In stock	Screw	£1.55 £1.29
18	MO112293201/0 In stock	Nut	£1.70 £1.42
20	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
23	MO112791011/0 Available to backorder	Screw	£1.39 £1.16
24	MO112154510/0 In stock	Nut	£1.55 £1.29
26	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
36	MO112818690/0 In stock	Screw	£1.55 £1.29
37	MO112521350/0 In stock	Washer	£1.55 £1.29
38	MO112155000/0 In stock	Nut	£1.55 £1.29
42	MO127430569/2 Available to backorder	Spring	£2.82 £2.35
44	MO112729600/0 Available to backorder	Screw	£1.55 £1.29
46	MO112735122/0 Available to backorder	Use 112735122.0	£1.55 £1.29
