2448H 4WD - 2010 - 2T1525283/M10 - Mountfield Ride On Mower Options Diagram

Name: 2448H 4WD - 2010 - 2T1525283/M10 - Mountfield Ride On Mower Options Diagram
SKU: 2448h_4wd_2t1525283_m10_options-group
Price: 0.87 GBP
Availability: InStock

Part No. 2448h_4wd_2t1525283_m10_options-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2448H 4WD - 2010 - 2T1525283/M10 - Mountfield Ride On Mower Options Diagram

Description

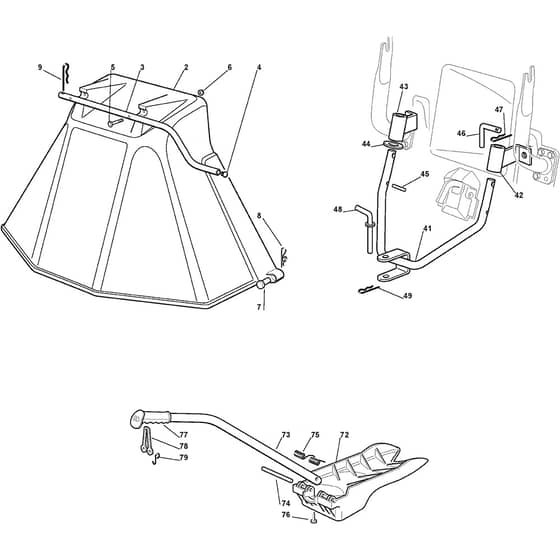

Mountfield 2448H 4WD Parts Diagram

Product Name - 2448H 4WD

Model Year - 2010

Model Type - TH4S 122 HYDRO

Art.N - 2T1525283/M10

Engine Model -

	Part No.	Details
1	MO382400003/1 Available to backorder	Ejection Guard	£61.94 £51.62
3	MO325869043/0 Available to backorder	Rear Support	£18.59 £15.49
4	MO118566112/0 Available to backorder	Polyethylene Push Road D.20Inch	£1.55 £1.29
5	MO112689515/0 Available to backorder	Screw	£1.63 £1.36
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO125510022/1 In stock	Pin	£3.10 £2.58
8	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
41	MO382033113/0 Available to backorder	Rod	£61.94 £51.62
42	MO382774265/0 Available to backorder	Bracket Right Hitch Support	£50.69 £42.24
43	MO382774267/0 Available to backorder	Bracket Left Hitch Support	£50.69 £42.24
44	MO112521395/0 Available to backorder	Washer	£1.97 £1.64
45	MO112620305/0 Available to backorder	Elastic Pin	£1.84 £1.53
46	MO125510118/0 Available to backorder	Pin	£6.64 £5.53
47	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
48	MO125510021/1 In stock	Hitch Pin	£11.10 £9.25
49	MO124487999/0 Available to backorder	Spring Pin	£1.84 £1.53
72	MO125140092/0 Available to backorder	Mulching Deflector	£33.79 £28.16
73	MO325394019/0 Available to backorder	Handle	£32.38 £26.98
74	MO125510077/0 In stock	Pin	£3.38 £2.82
75	MO125430245/0 In stock	Spring	£3.52 £2.93
76	MO112735405/0 Available to backorder	Screw	£1.55 £1.29
77	MO325280000/1 In stock	Handgrip	£3.10 £2.58
78	MO125840011/1 In stock	Tie Rod	£7.18 £5.98
79	MO125253004/0 In stock	Mulch.Kit Fixing Hook	£1.55 £1.29
