2448H 4WD - 2010 - 2T1525283/M10 - Mountfield Ride On Mower Frame Diagram

Description

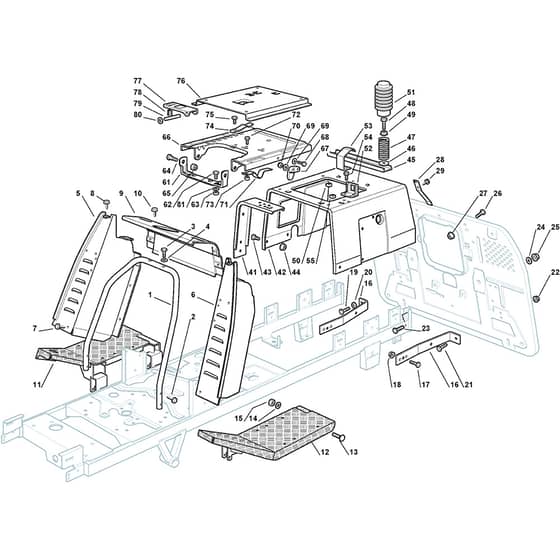

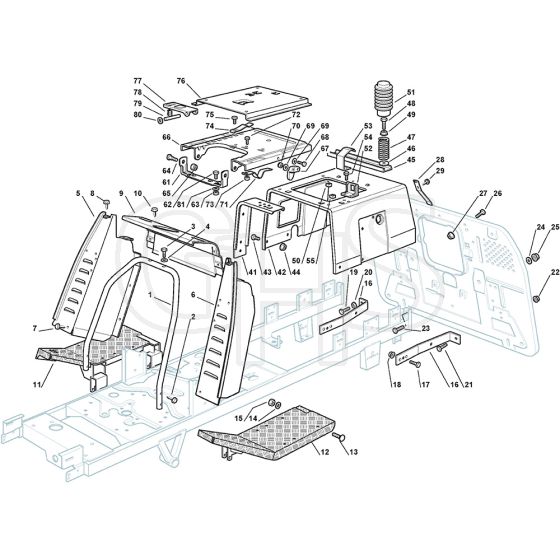

Mountfield 2448H 4WD Parts Diagram

Product Name - 2448H 4WD

Model Year - 2010

Model Type - TH4S 122 HYDRO

Art.N - 2T1525283/M10

Engine Model -

	Part No.	Details
2	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
3	MO112731350/0 Available to backorder	Screw	£1.63 £1.36
4	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
5	MO382785022/8 Available to backorder	Right Dashboard Support	£29.57 £24.64
6	MO382785021/7 Available to backorder	Left Dashboard Support	£29.57 £24.64
13	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
14	MO112523040/0 In stock	Washer	£1.55 £1.29
15	MO112154510/0 In stock	Nut	£1.55 £1.29
16	MO325774273/2 Available to backorder	Stiffening	£8.86 £7.38
17	MO112793102/0 In stock	Screw	£1.55 £1.29
19	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
20	MO112293200/0 In stock	Nut	£1.55 £1.29
23	MO112794300/0 Available to backorder	Screw	£1.84 £1.53
24	MO112521360/0 In stock	Washer	£1.55 £1.29
25	MO112156602/0 In stock	Nut	£1.39 £1.16
28	MO125430238/1 Available to backorder	Spring	£4.08 £3.40
41	MO325650133/0 Available to backorder	Stiffening	£8.29 £6.91
42	MO325785133/5 Available to backorder	Seat Support	£68.99 £57.49
43	MO112791011/0 Available to backorder	Screw	£1.39 £1.16
44	MO112292102/0 In stock	Nut	£1.70 £1.42
45	MO325650067/1 Available to backorder	Stiffening	£5.92 £4.93
47	MO125430205/1 Available to backorder	Spring	£5.92 £4.93
48	MO125943001/0 Available to backorder	Screw	£1.55 £1.29
50	MO112360420/0 Available to backorder	Nut	£1.55 £1.29
51	MO325737002/0 Available to backorder	Hood	£17.09 £14.24
53	MO325430255/0 Available to backorder	Spring	£3.92 £3.27
54	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
55	MO112437502/0 Available to backorder	Plate	£1.55 £1.29
61	MO382774305/0 Available to backorder	Seat Clamp Support	£11.24 £9.37
62	MO112792611/0 In stock	Screw	£1.55 £1.29
63	MO112293201/0 In stock	Nut	£1.70 £1.42
64	MO122524970/2 Available to backorder	Fulcrum Pin	£1.90 £1.58
65	MO112155010/0 In stock	Nut	£2.11 £1.76
66	MO325785149/2 Available to backorder	Fixed Seat Support	£43.63 £36.36
67	MO325060033/0 Available to backorder	Seat Switch Cam	£2.24 £1.87
68	MO112815050/0 Available to backorder	Screw	£1.55 £1.29
69	MO112521320/0 Available to backorder	Washer	£1.63 £1.36
71	MO125430223/2 Available to backorder	Spring	£6.19 £5.16
72	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
73	MO112154330/0 In stock	Nut	£1.55 £1.29
74	MO125430203/1 Available to backorder	Spring	£3.38 £2.82
75	MO112731580/0 Available to backorder	Screw	£1.63 £1.36
76	MO325785147/2 Available to backorder	Seat Support	£40.82 £34.02
77	MO325318109/1 Available to backorder	Stop Lever	£4.50 £3.75
78	MO125430202/1 Available to backorder	Spring	£1.70 £1.42
79	MO125510000/0 Available to backorder	Pin	£1.39 £1.16
80	MO112604897/0 Available to backorder	Elastic Washer	£1.63 £1.36
81	MO112523070/0 Available to backorder	Washer M8 8.5 X 32 X 2.5	£1.55 £1.29
