2448H 4WD - 2010 - 2T1525283/M10 - Mountfield Ride On Mower Cutting plate lifting. Diagram

Name: 2448H 4WD - 2010 - 2T1525283/M10 - Mountfield Ride On Mower Cutting plate lifting. Diagram
SKU: 2448h_4wd_2t1525283_m10_cutting_plate_lifting_-group
Price: 0.87 GBP
Availability: InStock

Part No. 2448h_4wd_2t1525283_m10_cutting_plate_lifting_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2448H 4WD - 2010 - 2T1525283/M10 - Mountfield Ride On Mower Cutting plate lifting. Diagram

Description

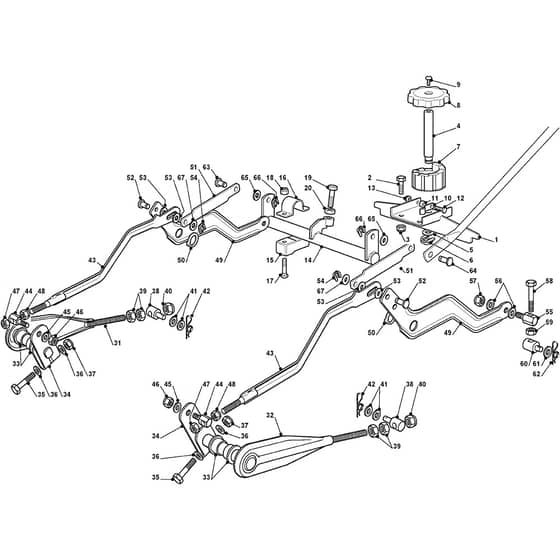

Mountfield 2448H 4WD Parts Diagram

Product Name - 2448H 4WD

Model Year - 2010

Model Type - TH4S 122 HYDRO

Art.N - 2T1525283/M10

Engine Model -

	Part No.	Details
2	MO112818690/0 In stock	Screw	£1.55 £1.29
3	MO112293201/0 In stock	Nut	£1.70 £1.42
4	MO125520009/0 Available to backorder	Axle	£18.30 £15.25
5	MO322672151/0 Available to backorder	Antifriction Washer	£1.84 £1.53
6	MO112436030/0 In stock	Plate	£1.84 £1.53
7	MO325060037/0 Available to backorder	Cam	£55.52 £46.27
8	MO325394530/0 Available to backorder	Knob	£10.14 £8.45
9	MO112760600/1 Available to backorder	Screw	£2.24 £1.87
10	MO325430267/0 Available to backorder	Spring	£6.46 £5.38
11	MO122170600/0 Available to backorder	Spacer	£1.82 £1.52
12	MO112789195/0 Available to backorder	Screw	£1.84 £1.53
13	MO112154320/0 Available to backorder	Nut	£1.55 £1.29
15	MO325785292/0 Available to backorder	Support	£11.47 £9.56
16	MO325547203/0 Available to backorder	Plate	£5.47 £4.56
17	MO112815240/0 Available to backorder	Screw	£1.55 £1.29
18	MO112154510/0 In stock	Nut	£1.55 £1.29
19	MO125943005/0 Available to backorder	Screw	£7.18 £5.98
31	MO382318159/0 In stock	Front Right Fulcrum Lever	£20.14 £16.78
32	MO382318161/0 Available to backorder	Lever	£23.23 £19.36
33	MO125040605/0 Available to backorder	Bushing	£1.55 £1.29
34	MO325318161/1 Available to backorder	Lever	£9.01 £7.51
35	MO112691700/0 Available to backorder	Screw	£1.84 £1.53
38	MO125510069/1 Available to backorder	Pin	£8.59 £7.16
42	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
43	MO382000477/3 In stock	Connecting Rod Assy	£18.30 £15.25
44	MO125510055/1 Available to backorder	Pin	£4.08 £3.40
47	MO112155000/0 In stock	Nut	£1.55 £1.29
48	MO112293200/0 In stock	Nut	£1.55 £1.29
49	MO325318153/2 Available to backorder	Rear Lever	£14.48 £12.07
50	MO112609255/0 Available to backorder	Seeger	£1.55 £1.29
51	MO325318223/0 Available to backorder	Gearshift	£6.77 £5.64
52	MO125510048/1 Available to backorder	Pin	£2.40 £2.00
53	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
54	MO112436050/0 In stock	Plate	£1.84 £1.53
55	MO125510056/1 Available to backorder	Pin	£5.35 £4.46
56	MO325670008/1 In stock	Washer	£1.55 £1.29
57	MO112156602/0 In stock	Nut	£1.39 £1.16
58	MO112794985/0 Available to backorder	Screw	£4.08 £3.40
59	MO112295200/0 In stock	Nut	£1.39 £1.16
60	MO125510070/1 Available to backorder	Pin	£6.19 £5.16
61	MO112523090/0 Available to backorder	Washer	£1.84 £1.53
67	MO112521350/0 In stock	Washer	£1.55 £1.29
