2448H - 2010 - 2T1515283/M10 - Mountfield Ride On Mower Seat and Steering Wheel Diagram

Description

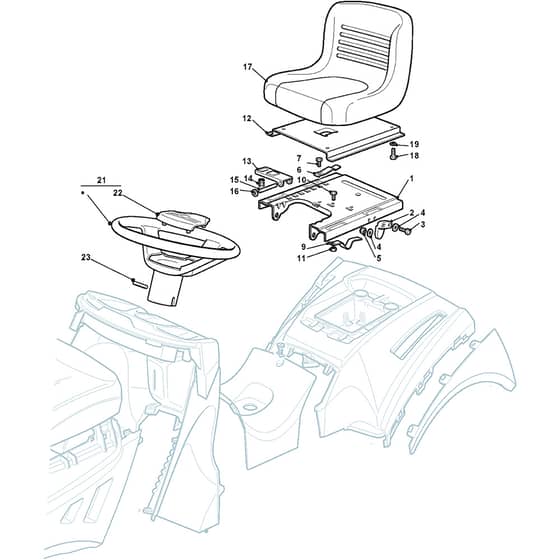

Mountfield 2448H Parts Diagram

Product Name - 2448H

Model Year - 2010

Model Type - THS 122 Hydro

Art.N - 2T1515283/M10

Engine Model -

	Part No.	Details
1	MO325785149/2 Available to backorder	Fixed Seat Support	£43.63 £36.36
2	MO325060033/0 Available to backorder	Seat Switch Cam	£2.24 £1.87
3	MO112815050/0 Available to backorder	Screw	£1.55 £1.29
4	MO112521320/0 Available to backorder	Washer	£1.63 £1.36
6	MO125430203/1 Available to backorder	Spring	£3.38 £2.82
7	MO112731580/0 Available to backorder	Screw	£1.63 £1.36
9	MO125430223/2 Available to backorder	Spring	£6.19 £5.16
10	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
11	MO112154330/0 In stock	Nut	£1.55 £1.29
12	MO325785147/2 Available to backorder	Seat Support From 01-9-2013	£40.82 £34.02
13	MO325318109/1 Available to backorder	Stop Lever	£4.50 £3.75
14	MO125430202/1 Available to backorder	Spring	£1.70 £1.42
15	MO125510000/0 Available to backorder	Pin	£1.39 £1.16
16	MO112604897/0 Available to backorder	Elastic Washer	£1.63 £1.36
17	MO125722471/0 In stock	Seat	£190.04 £158.37
18	MO112793102/0 In stock	Screw	£1.55 £1.29
19	MO112583500/0 In stock	Grower	£1.55 £1.29
22	MO325580505/0 Available to backorder	Cap	£7.62 £6.35
23	MO112620299/0 Available to backorder	Spirol Flexible Pin 6 X 45	£1.84 £1.53
