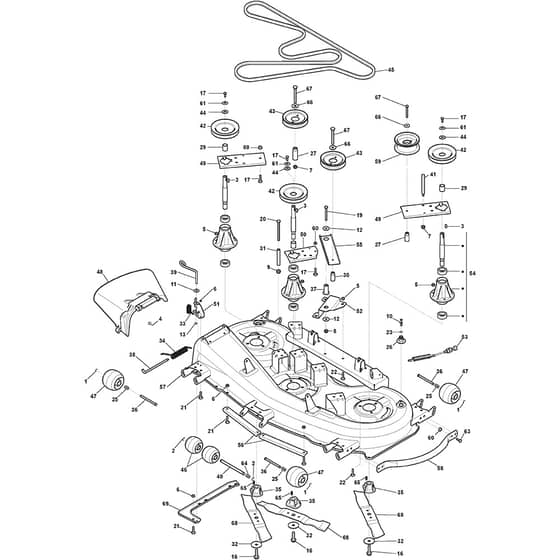

2446H-SD Twin - 2017-2018 - 2T1945283/M17 - Mountfield Ride On Mower Cutting Plate Diagram

Description

Mountfield 2446H-SD Twin Parts Diagram

Product Name - 2446H-SD Twin

Model Year - 2017-2018

Model Type - TS 118 Hydro SD

Art.N - 2T1945283/M17

Engine Model - Intek 8240 V-Twin Easy Start

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112000930/0 In stock	Circlip Ø6	£1.55 £1.29
2	MO112000956/0 Available to backorder	Circlip Ø9	£1.40 £1.17
3	MO112139480/0 Available to backorder	Feather	£1.69 £1.41
4	MO112141418/0 Available to backorder	Cotter Pin	£1.55 £1.29
5	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO112155000/0 In stock	Nut	£1.55 £1.29
8	MO112155020/0 Available to backorder	Nut	£1.69 £1.41
9	MO112156602/0 In stock	Nut	£1.40 £1.17
10	MO112500030/0 In stock	Rivet	£1.49 £1.24
11	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
12	MO1134-5406-01 Available to backorder	Washer	£3.79 £3.16
13	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
16	MO112735696/0 In stock	Screw	£2.65 £2.21
17	MO112793102/0 In stock	Screw	£1.55 £1.29
20	MO112794980/0 Available to backorder	Screw	£2.12 £1.77
21	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
22	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
23	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
25	MO122450115/0 Available to backorder	Spring	£1.94 £1.62
26	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.49 £1.24
27	MO125160099/0 Available to backorder	Spacer	£10.27 £8.56
29	MO125160090/0 Available to backorder	Spacer	£10.27 £8.56
30	MO125160100/0 Available to backorder	Spacer	£10.27 £8.56
31	MO125160097/0 Available to backorder	Spacer	£5.76 £4.80
32	MO125160503/0 In stock	Blade Hub Elastic Disc Lawntr.	£3.50 £2.92
33	MO125430288/0 Available to backorder	Spring	£9.58 £7.98
34	MO125430289/0 Available to backorder	Spring	£13.37 £11.14
35	MO125463200/0 In stock	Blade Holder	£9.08 £7.57
36	MO125510121/1 Available to backorder	Pin	£9.22 £7.68
37	MO125510155/0 Available to backorder	Fulcrum Pin	£8.17 £6.81
38	MO125510156/0 Available to backorder	Fulcrum Pin	£11.27 £9.39
39	MO125510157/1 Available to backorder	Fulcrum Pin From 01-9-2017	£11.27 £9.39

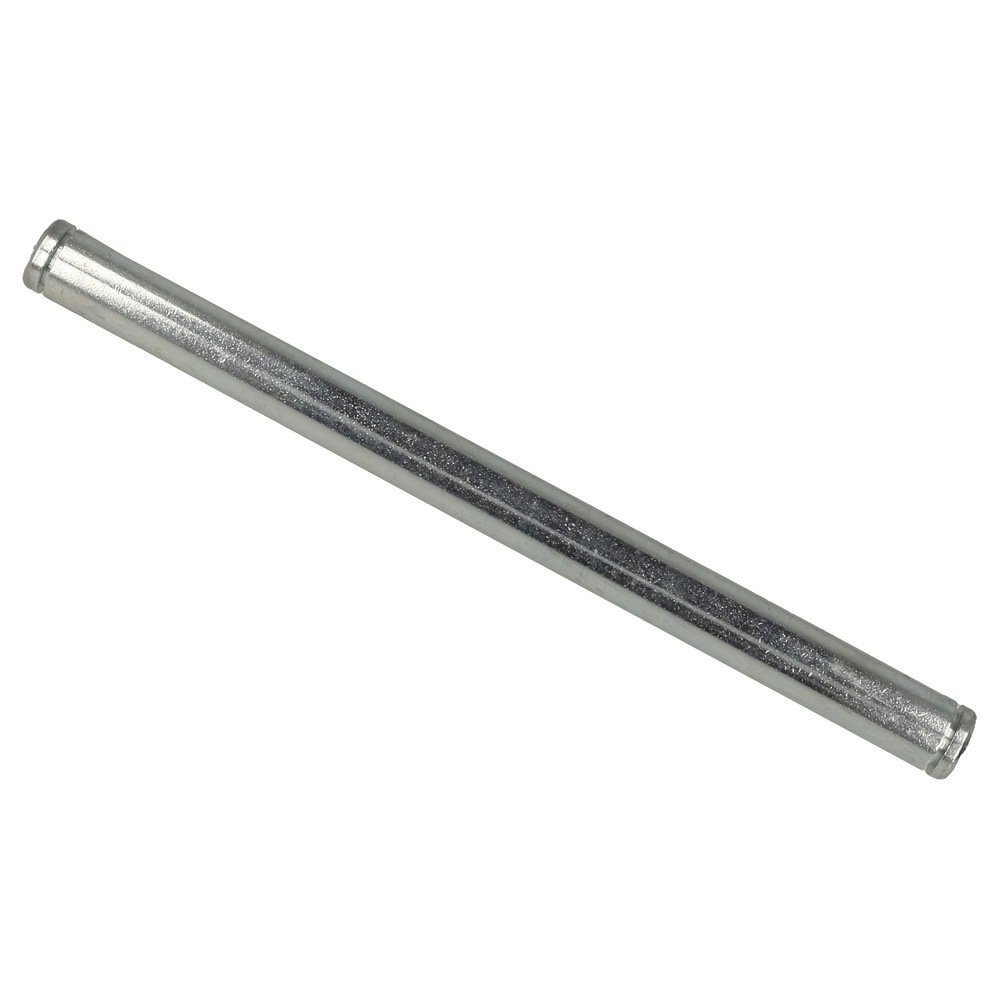

40	MO125510158/0 Available to backorder	Pin	£12.67 £10.56
41	MO125510160/0 Available to backorder	Pin	£9.16 £7.63
42	MO125601549/0 Available to backorder	Pulley	£50.68 £42.23
43	MO382601521/0 In stock	Pulley	£50.68 £42.23
44	MO125670007/0 In stock	Washer	£1.97 £1.64
45	MO135062027/0 In stock	Trapezoidal Belt	£86.18 £71.82
46	MO182700003/0 Available to backorder	Anti Scalp Wheel	£10.42 £8.68
47	MO182700004/0 Available to backorder	Anti Scalp Wheel	£18.86 £15.72
48	MO325600129/0 Available to backorder	Ejection Guard	£30.89 £25.74
49	MO325650175/0 Available to backorder	Stiffening	£14.92 £12.43
50	MO325650177/0 Available to backorder	Stiffening	£12.38 £10.32
51	MO325774633/0 Available to backorder	Fulcrum Clamp	£16.82 £14.02
52	MO325785513/0 Available to backorder	Support	£29.56 £24.63
53	MO382004627/0 Available to backorder	Blades Engagement Cable	£30.97 £25.81
54	MO382207213/0 In stock	Flange Assy	£111.91 £93.26
55	MO382318299/0 Available to backorder	Tightener Lever	£42.23 £35.19
56	MO382526251/0 Available to backorder	Guide Shoe	£9.00 £7.50

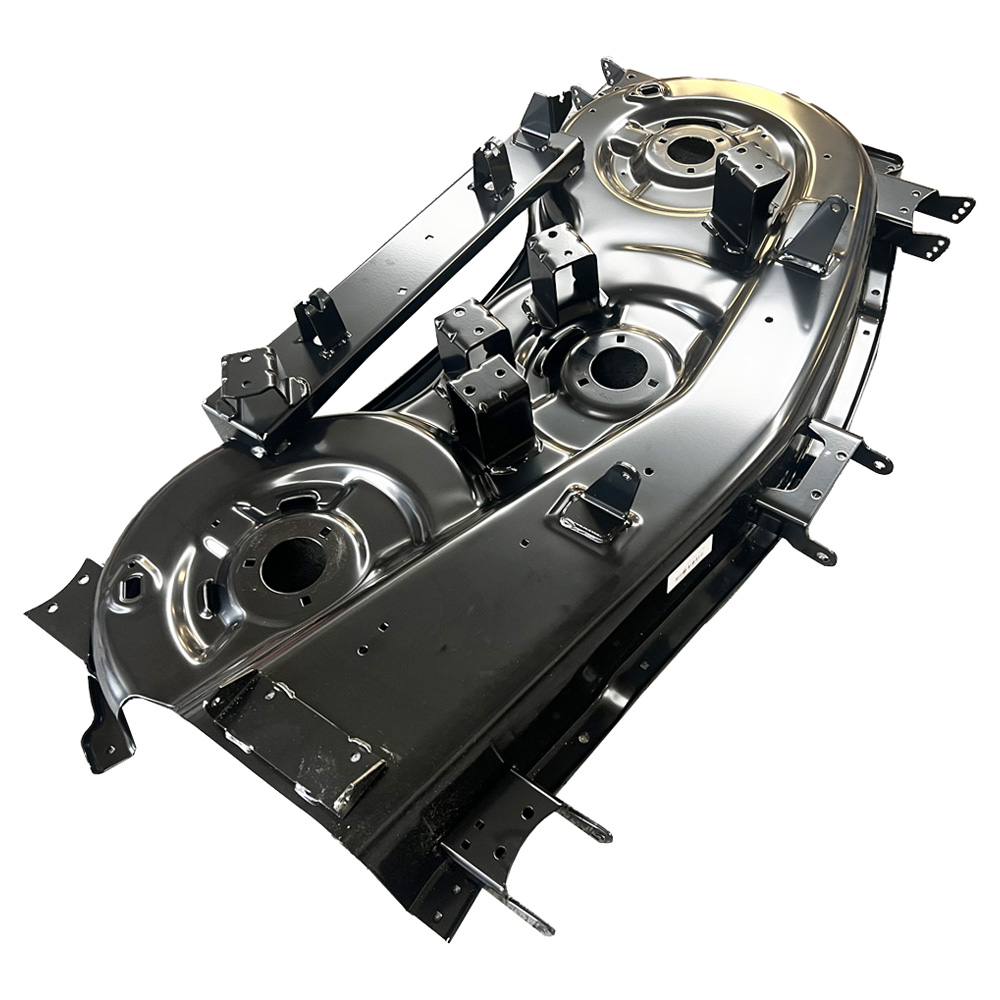

57	MO382565089/0 Available to backorder	Cutting Deck Black Black	£717.95 £598.29
58	MO382869063/0 Available to backorder	Side Stiffening	£37.09 £30.91
59	MO382601520/0 Available to backorder	Pulley	£45.04 £37.53
60	MO112293201/0 In stock	Nut	£1.69 £1.41
61	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
63	MO9959-0820-16 In stock	Screw	£1.55 £1.29
64	MO122430215/0 Available to backorder	Spring	£3.24 £2.70
65	MO112139100/0 In stock	Key	£1.55 £1.29
69	MO382650053/0 Available to backorder	Side Deck Reinforcement	£36.59 £30.49
