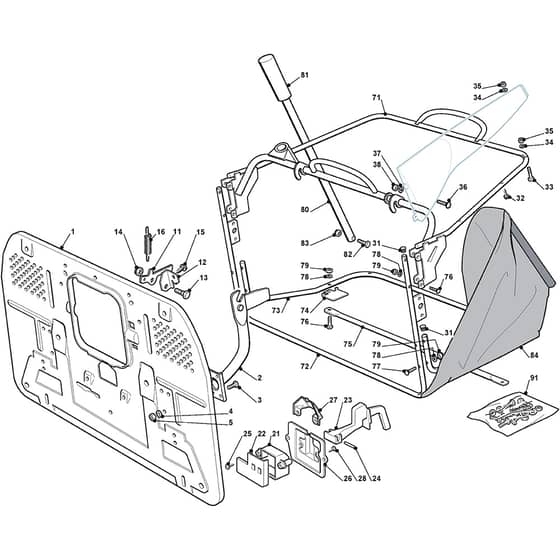

Mountfield 2348H Parts Diagram

Product Name - 2348H

Model Year - 2009

Model Type - THS 122 Hydro

Art.N - 2T8686483/UM9

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382547053/1 Out of stock	Rear Plate	£142.21 £118.51
2	MO182774225/1 Out of stock	Clamp	£32.51 £27.09
3	MO112793102/0 Out of stock	Screw	£1.63 £1.36
4	MO112523060/0 In stock	Washer	£1.49 £1.24
5	MO112293201/0 In stock	Nut	£1.63 £1.36
11	MO325774417/0 Out of stock	Clamp	£6.77 £5.64
13	MO125510080/2 Out of stock	Pin	£1.36 £1.13
14	MO112292102/0 In stock	Nut	£1.63 £1.36
15	MO112735122/1 Out of stock	Screw	£1.49 £1.24
16	MO127430579/0 Out of stock	Clutch Spring	£11.76 £9.80
21	MO125600041/0 Out of stock	Grassc.Full Micro Protection Tcj-F	£3.77 £3.14
22	MO125600042/0 Out of stock	Grasscatcher Micro Prot Cover	£7.33 £6.11
23	MO125318124/0 Out of stock	Full Grassc. Microswtich Cover	£1.90 £1.58
24	MO112400030/0 Out of stock	Pin	£1.75 £1.46
25	MO112728440/0 Out of stock	Screw	£1.36 £1.13
26	MO325785272/1 Out of stock	Micro Protection	£2.04 £1.70
27	MO125600048/0 Out of stock	Empty Micro Grassc.Protection Cover	£1.49 £1.24
28	MO112728450/0 In stock	Screw	£1.49 £1.24
31	MO118566110/0 Out of stock	Push Rod	£1.49 £1.24
32	MO112735410/0 Out of stock	Screw	£1.49 £1.24
33	MO112689500/0 Out of stock	Screw	£1.63 £1.36
71	MO382800079/1 Out of stock	Upper Frame	£182.84 £152.37
72	MO382800089/1 Out of stock	Front Grassbox Frame	£76.52 £63.77
74	MO325547131/0 Out of stock	Plate	£3.53 £2.94
75	MO382650043/0 Out of stock	Lower Stiffening	£19.98 £16.65
76	MO112815220/0 Out of stock	Screw	£1.49 £1.24
77	MO112815245/0 Out of stock	Screw	£1.49 £1.24
78	MO112521330/0 Out of stock	Washer	£1.49 £1.24
80	MO125869029/1 Out of stock	Grasscatcher Lifting Tube	£28.44 £23.70
81	MO125394508/0 Out of stock	Knob	£4.87 £4.06
82	MO112674550/0 Out of stock	Screw	£1.49 £1.24
83	MO112154510/0 In stock	Nut	£1.63 £1.36
84	MO182105945/0 Out of stock	Grasscatcher	£155.76 £129.80
91	MO382180037/3 Out of stock	Grasscatcher Screw Outfit	£65.02 £54.18
