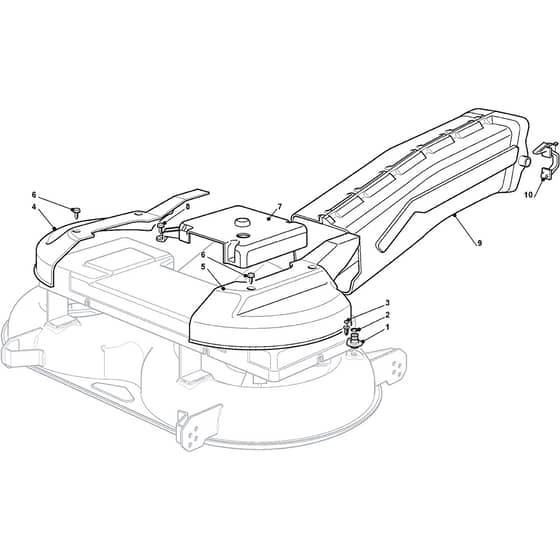

2348H - 2009 - 2T8686483/BM9 - Mountfield Ride On Mower Guards Diagram

Back

2348H - 2009 - 2T8686483/BM9 - Mountfield Ride On Mower Guards Diagram

Name: 2348H - 2009 - 2T8686483/BM9 - Mountfield Ride On Mower Guards Diagram
SKU: 2348h_2t8686483_bm9_guards-group
Price: 1.29 GBP
Availability: InStock

Part No. 2348h_2t8686483_bm9_guards-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2348H - 2009 - 2T8686483/BM9 - Mountfield Ride On Mower Guards Diagram

Description

Mountfield 2348H Parts Diagram

Product Name - 2348H

Model Year - 2009

Model Type - THS 122 Hydro

Art.N - 2T8686483/BM9

Engine Model -

	Part No.	Details
1	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.55 £1.29
2	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
3	MO112500030/0 In stock	Rivet	£1.55 £1.29
7	MO125600050/0 Available to backorder	Protection	£7.74 £6.45
8	MO112735402/0 In stock	Screw	£1.55 £1.29
9	MO382108019/0 In stock	Conveyor	£71.81 £59.84
10	MO325774373/0 In stock	Release Clamp	£2.94 £2.45
