2248H - 2006 - 13-2677-11 - Mountfield Ride On Mower Wheels Diagram

Description

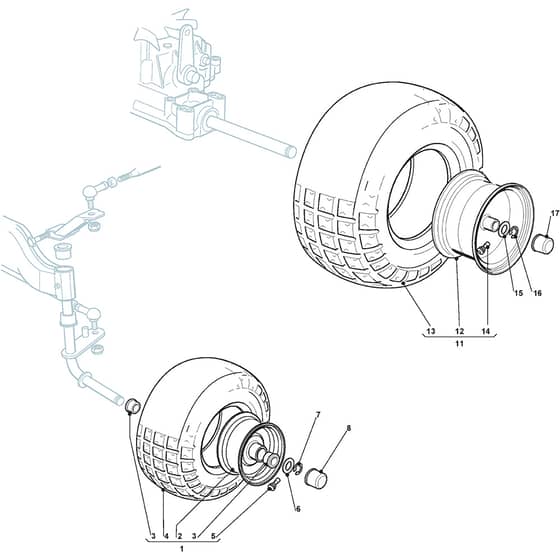

Mountfield 2248H Parts Diagram

Product Name - 2248H

Model Year - 2006

Model Type - TS 122 Hydro

Art.N - 13-2677-11

Engine Model -

	Part No.	Details
1	MO382680007/1 Available to backorder	Front Wheel From 01-9-2009	£128.10 £106.75
2	MO182000595/1 Available to backorder	Rim To 31-8-2009	£68.99 £57.49
2	MO182000590/1 Available to backorder	Front Wheel Rimm From 01-9-2009	£68.99 £57.49
3	MO125122200/2 In stock	Bearing	£11.82 £9.85
4	MO125590047/0 Available to backorder	Tyre 15X6.00-6 (Kings) From 01-9-2009	£44.93 £37.44
7	MO112001000/0 Available to backorder	Circlip Ø15	£1.84 £1.53
12	MO182000592/0 Available to backorder	Rim To 31-8-2009	£109.79 £91.49
13	MO125590033/0 Available to backorder	Tyre 18X8.00-8 (Kings) From 01-9-2009	£81.66 £68.05
14	MO125950000/0 In stock	Valve	£5.34 £4.45
15	MO125670005/2 In stock	Washer	£4.08 £3.40
16	MO112001010/0 In stock	Circlip	£1.84 £1.53
17	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
