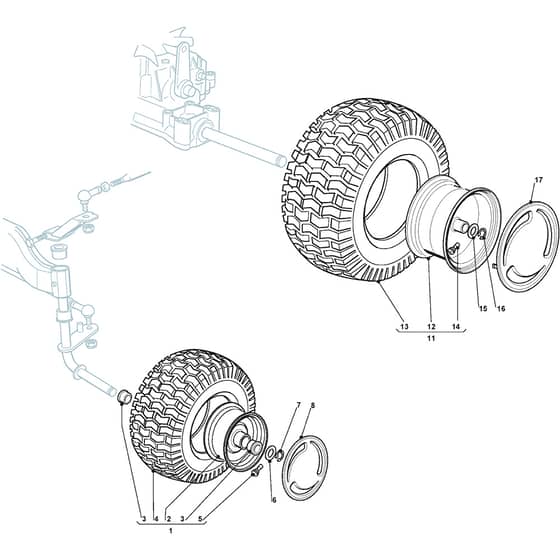

2248H - 2005 - 13-2662-15 - Mountfield Ride On Mower Wheels Diagram

Name: 2248H - 2005 - 13-2662-15 - Mountfield Ride On Mower Wheels Diagram
SKU: 2248h_13_2662_15_wheels-group
Price: 1.53 GBP
Availability: InStock

Part No. 2248h_13_2662_15_wheels-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2248H - 2005 - 13-2662-15 - Mountfield Ride On Mower Wheels Diagram

Description

Mountfield 2248H Parts Diagram

Product Name - 2248H

Model Year - 2005

Model Type - TCP 122 Hydro

Art.N - 13-2662-15

Engine Model -

	Part No.	Details
2	MO182000590/1 Available to backorder	Front Wheel Rimm	£68.99 £57.49
3	MO125122200/2 In stock	Bearing	£11.82 £9.85
4	MO125590000/0 Available to backorder	Tyre 13X5.00-6 Pr2 Tl S365 (Deli Tire)	£39.97 £33.31
5	MO125950000/0 In stock	Valve	£5.34 £4.45
6	MO125670005/2 In stock	Washer	£4.08 £3.40
7	MO112001000/0 Available to backorder	Circlip Ø15	£1.84 £1.53
8	MO382110252/0 Available to backorder	Front Wheel Cover	£15.76 £13.13
11	MO382680057/0 Available to backorder	Rear Wheel Assy	£188.53 £157.11
12	MO182000592/0 Available to backorder	Rear Wheel Rimm	£109.79 £91.49
13	MO382680067/0 Available to backorder	Tyre 18X8.50-8 Pr2 Tl S366K (Deli Tire)	£188.53 £157.11
16	MO112001010/0 In stock	Circlip	£1.84 £1.53
