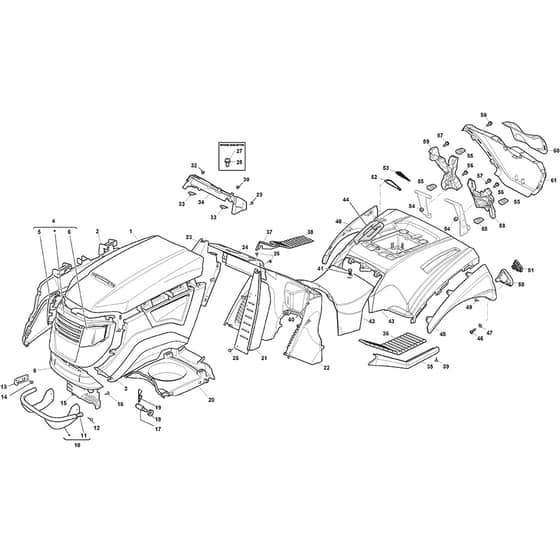

Mountfield 2243H-SD Twin Parts Diagram

Product Name - 2243H-SD Twin

Model Year - 2017-2020

Model Type - TS 108 Hydro SD

Art.N - 2T1845283/M17

Engine Model - Intek 7220 V-Twin Easy Start

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325076977/1 Available to backorder	Upper Engine Hood. Red	£114.73 £95.61
2	MO382394653/1 Available to backorder	Hood. Right Dark Red From S.N 324407	£82.36 £68.63
3	MO382394654/1 Available to backorder	Hood. Left Dark Red From S.N 324407	£95.74 £79.78
4	MO382394613/0 Available to backorder	Hood. Front	£80.58 £67.15
5	MO325410876/0 Available to backorder	Right Grill	£8.80 £7.33
6	MO325410877/0 Available to backorder	Left Grill	£8.80 £7.33
9	MO325076870/1 Available to backorder	Lower Black Hood. Front	£16.46 £13.72
10	MO382869025/0 Available to backorder	Muffler Protection	£125.29 £104.41
11	MO118737860/0 Available to backorder	Cap	£1.55 £1.29
12	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
13	MO325547159/1 Available to backorder	Plate	£4.66 £3.88
14	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
15	MO325774301/2 Available to backorder	Engine Hood Support	£17.74 £14.78
16	MO112735406/0 Available to backorder	Screw From 01-9-2017	£1.55 £1.29
16	MO112735402/0 Available to backorder	Screw To 31-8-2017	£1.55 £1.29
17	MO125510169/1 Available to backorder	Pin	£2.40 £2.00
18	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
19	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
20	MO325108031/0 Available to backorder	Conveyor	£56.32 £46.93
21	MO382785021/9 Available to backorder	Left Dashboard Support From S.N 419953	£38.20 £31.83
22	MO325785449/0 Available to backorder	Dashboard Support	£75.31 £62.76
23	MO382785022/10 Available to backorder	Right Dashboard Support To S.N 419952	£40.63 £33.86
24	MO382785137/1 Available to backorder	Central Dashboard Support	£13.43 £11.19
26	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
27	MO325605003/0 In stock	Push Button Reverse Gear	£30.77 £25.64
28	MO325256250/0 Available to backorder	Screwed Ring	£2.53 £2.11
29	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
30	MO325120233/0 Available to backorder	Cap Starter Control Hole Closing Cap	£3.24 £2.70
32	MO125120200/0 Available to backorder	Cap	£1.40 £1.17
33	MO125260000/0 Available to backorder	Grommet	£2.95 £2.46
34	MO325120266/0 Available to backorder	Dashboard. Grey (Cruise Control)	£43.21 £36.01
35	MO325599005/0 Available to backorder	Left Profil	£17.45 £14.54
36	MO325110279/0 Available to backorder	Left Footboard Cover	£30.97 £25.81
37	MO325599004/0 Available to backorder	Right Profile	£15.78 £13.15
38	MO325110278/1 Available to backorder	Right Footboard Cover	£30.97 £25.81
41	MO125580020/2 In stock	Stake	£8.29 £6.91
42	MO325110507/0 Available to backorder	Grey Central Cover	£35.20 £29.33
43	MO325109798/0 Available to backorder	Red Wheels Cover	£113.32 £94.43
44	MO325207129/1 Available to backorder	Cover. Can Holder	£25.06 £20.88
45	MO325207267/0 Available to backorder	Left Wheel Cover	£20.96 £17.47
46	MO112728689/0 In stock	Screw	£1.40 £1.17
47	MO112523020/0 In stock	Washer	£1.55 £1.29
48	MO325207266/0 Available to backorder	Right Wheel Cover	£20.96 £17.47
49	MO112728686/0 In stock	Screw	£1.55 £1.29
50	MO325596502/0 Available to backorder	Left Rear Reflector Support	£3.94 £3.28
51	MO325069101/0 Available to backorder	Left Rear Reflector	£3.52 £2.93
52	MO325596501/0 Available to backorder	Right Rear Reflector Support	£3.94 £3.28
53	MO325069100/0 Available to backorder	Right Rear Reflector	£3.52 £2.93
54	MO112154510/0 In stock	Nut	£1.55 £1.29
55	MO112437507/0 Available to backorder	Rapid Fixing Plate	£1.69 £1.41
56	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
57	MO112735420/0 Available to backorder	Screw	£4.66 £3.88
58	MO325785526/0 Available to backorder	Support. Left	£13.44 £11.20
59	MO325785525/0 Available to backorder	Support. Right	£13.44 £11.20
60	MO325207268/0 Available to backorder	Rear Cover Black	£14.92 £12.43
61	MO325110490/0 Available to backorder	Rear Cover [Red]	£58.57 £48.81
