2240H Twin - 2019-2020 - 2T0980283/M19 - Mountfield Ride On Mower Brake and Gearbox Controls Diagram

Description

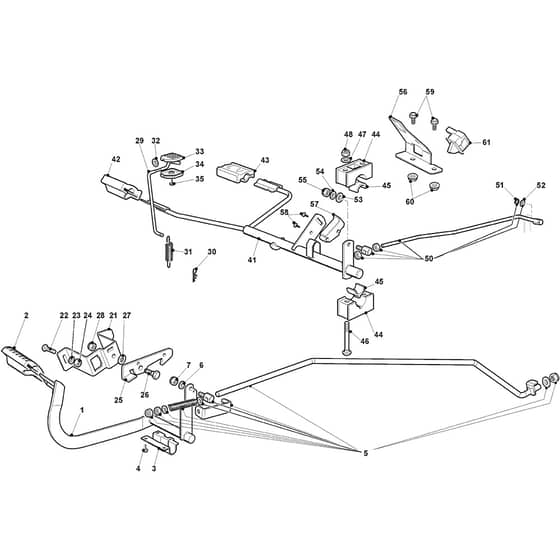

Mountfield 2240H Twin Parts Diagram

Product Name - 2240H Twin

Model Year - 2019-2020

Model Type - TS 102 Hydro

Art.N - 2T0980283/M19

Engine Model - Intek 7220 V-Twin

	Part No.	Details
1	MO382500011/2 Available to backorder	Pedal	£76.02 £63.35
2	MO325110416/0 Available to backorder	Clamp Cover	£10.85 £9.04
3	MO325547081/2 Available to backorder	Plate	£5.06 £4.22
4	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
5	MO382000682/0 Available to backorder	Brake Rod Assy	£47.87 £39.89
6	MO112521350/0 In stock	Washer	£1.55 £1.29
21	MO325785143/1 Available to backorder	Support	£4.50 £3.75
22	MO112815210/0 Available to backorder	Screw	£1.63 £1.36
25	MO325253001/0 Available to backorder	Hook	£4.08 £3.40
26	MO122524970/3 Available to backorder	Pin	£1.70 £1.42
28	MO112155000/0 In stock	Nut	£1.55 £1.29
29	MO125033097/0 Available to backorder	Rod	£13.87 £11.56
30	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
31	MO125430213/0 Available to backorder	Spring	£1.70 £1.42
33	MO325592001/1 Available to backorder	Knob	£1.39 £1.16
34	MO325592002/1 Available to backorder	Knob	£1.39 £1.16
35	MO112727815/0 Available to backorder	Screw	£1.39 £1.16
41	MO382000391/1 Available to backorder	Drive Pedal	£82.37 £68.64
42	MO325110417/0 Available to backorder	Clamp Cover Front	£10.85 £9.04
43	MO325110418/0 Available to backorder	Clamp Cover Rear	£10.85 £9.04
44	MO325785354/0 Available to backorder	Support	£2.11 £1.76
45	MO325034003/0 Available to backorder	Brass	£1.84 £1.53
46	MO112815271/0 Available to backorder	Screw	£1.70 £1.42
50	MO382000681/0 Available to backorder	Rod	£42.22 £35.18
51	MO112000940/0 Available to backorder	Circlip Ø7	£1.55 £1.29
52	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
53	MO112521360/0 In stock	Washer	£1.55 £1.29
54	MO112523040/0 In stock	Washer	£1.55 £1.29
55	MO112154510/0 In stock	Nut	£1.55 £1.29
56	MO325785481/0 Available to backorder	Micro Switch Bracket	£7.52 £6.27
57	MO325060034/1 Available to backorder	Cam	£2.11 £1.76
58	MO112735404/0 Available to backorder	Screw	£1.55 £1.29
59	MO112793102/0 In stock	Screw	£1.55 £1.29
60	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
61	MO119410623/0 In stock	Micro Switch N.C.	£7.62 £6.35
