2240H - 2024-2025 - 2T0980483/M25 - Mountfield Ride On Mower Brake Diagram

Name: 2240H - 2024-2025 - 2T0980483/M25 - Mountfield Ride On Mower Brake Diagram
SKU: 2240h_2t0980483_m25_brake-group
Price: 1.29 GBP
Availability: InStock

Part No. 2240h_2t0980483_m25_brake-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2240H - 2024-2025 - 2T0980483/M25 - Mountfield Ride On Mower Brake Diagram

Description

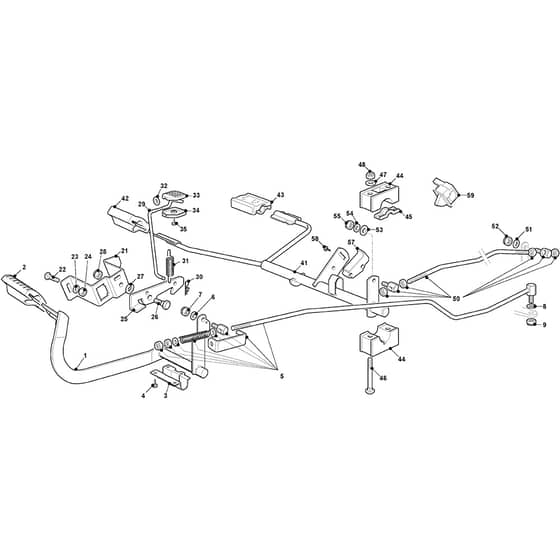

Mountfield 2240H Parts Diagram

Product Name - 2240H

Model Year - 2024-2025

Model Type - TNS 102 Hydro

Art.N - 2T0980483/M25

Engine Model -

	Part No.	Details
1	MO382500011/2 Available to backorder	Pedal	£76.02 £63.35
2	MO325110416/0 Available to backorder	Clamp Cover	£10.85 £9.04
3	MO325547081/2 Available to backorder	Plate	£5.06 £4.22
4	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
5	MO382000582/0 Available to backorder	Rod	£52.08 £43.40
6	MO112521350/0 In stock	Washer	£1.55 £1.29
8	MO112521360/0 In stock	Washer	£1.55 £1.29
9	MO112155000/0 In stock	Nut	£1.55 £1.29
21	MO325785143/1 Available to backorder	Support	£4.50 £3.75
22	MO112815210/0 Available to backorder	Screw	£1.63 £1.36
23	MO112523040/0 In stock	Washer	£1.55 £1.29
61	MO119410623/0 In stock	Micro Switch N.C.	£7.62 £6.35
