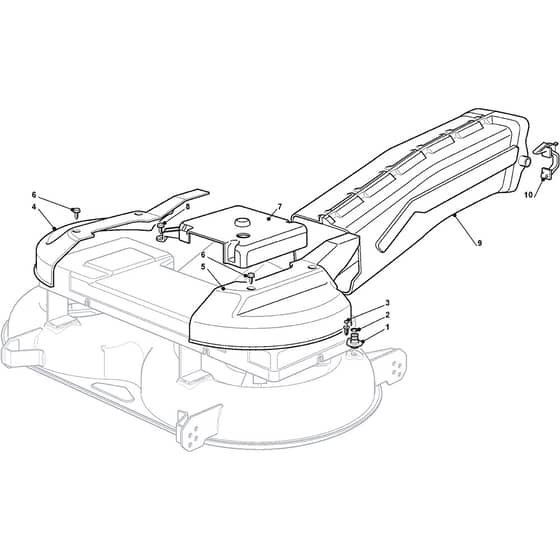

2240H - 2011-2013 - 2T0980283/M11 - Mountfield Ride On Mower Guards Diagram

Name: 2240H - 2011-2013 - 2T0980283/M11 - Mountfield Ride On Mower Guards Diagram
SKU: 2240h_2t0980283_m11_guards-group
Price: 1.29 GBP
Availability: InStock

Part No. 2240h_2t0980283_m11_guards-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2240H - 2011-2013 - 2T0980283/M11 - Mountfield Ride On Mower Guards Diagram

Description

Mountfield 2240H Parts Diagram

Product Name - 2240H

Model Year - 2011-2013

Model Type - TS 102 Hydro

Art.N - 2T0980283/M11

Engine Model -

	Part No.	Details
1	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.55 £1.29
2	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
3	MO112500030/0 In stock	Rivet	£1.55 £1.29
7	MO125600049/0 Available to backorder	Belt Protection	£13.76 £11.47
8	MO112735402/0 In stock	Screw	£1.55 £1.29
9	MO382108016/1 Available to backorder	Conveyor From 01-9-2010	£64.75 £53.96
10	MO325774373/0 In stock	Release Clamp	£2.94 £2.45
