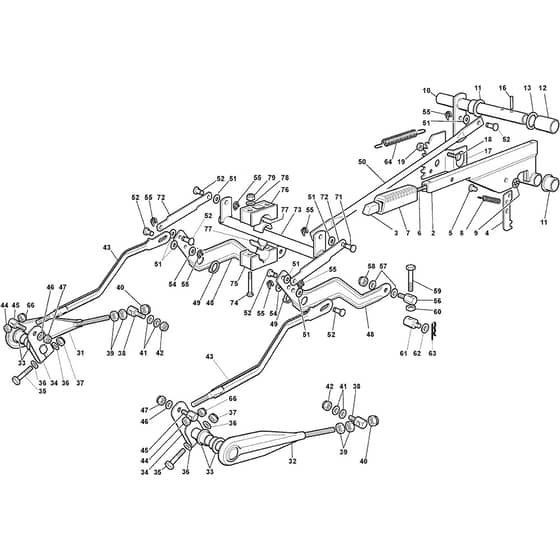

Mountfield 2240H Parts Diagram

Product Name - 2240H

Model Year - 2011-2013

Model Type - TS 102 Hydro

Art.N - 2T0980283/M11

Engine Model -

	Part No.	Details
1	MO382318139/1 Available to backorder	Deck Lifting Lever	£40.82 £34.02
3	MO125605000/1 Available to backorder	Button	£2.24 £1.87
4	MO325470901/1 Available to backorder	Dog Plate	£11.54 £9.62
5	MO125510011/1 Available to backorder	Pin From 01-9-2013	£1.55 £1.29
6	MO125033002/1 Available to backorder	Rod	£4.24 £3.53
7	MO325394536/0 Available to backorder	Knob	£1.70 £1.42
8	MO125430208/1 Available to backorder	Spring From S.N 382500	£3.52 £2.93
9	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
10	MO382000551/0 Available to backorder	Axle	£24.64 £20.53
11	MO122034523/0 Available to backorder	Bushing	£1.55 £1.29
12	MO125160025/1 Available to backorder	Spacer From S.N 382500	£6.19 £5.16
13	MO322672153/0 Available to backorder	Antifriction Washer	£1.55 £1.29
16	MO112620206/0 Available to backorder	Pin	£1.39 £1.16
17	MO325735506/2 Available to backorder	Left Sector From S.N 382500	£22.10 £18.42
18	MO112792611/0 In stock	Screw	£1.55 £1.29
19	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
31	MO382318155/0 Available to backorder	Front Right Fulcrum Lever	£26.88 £22.40
32	MO382318157/0 Available to backorder	Left Fulcrum	£24.49 £20.41
33	MO125040605/0 Available to backorder	Bushing	£1.55 £1.29
34	MO325318161/1 Available to backorder	Lever	£9.01 £7.51
35	MO112691700/0 Available to backorder	Screw	£1.84 £1.53
43	MO382000477/3 In stock	Connecting Rod Ass.Y	£18.30 £15.25
45	MO125510055/1 Available to backorder	Pin	£4.08 £3.40
47	MO112155000/0 In stock	Nut	£1.55 £1.29
48	MO325318153/2 Available to backorder	Rear Lever	£14.48 £12.07
49	MO112609255/0 Available to backorder	Seeger	£1.55 £1.29
50	MO325033071/0 Available to backorder	Rod	£12.26 £10.22
51	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
52	MO125510053/2 Available to backorder	Pin	£1.97 £1.64
54	MO112521350/0 In stock	Washer	£1.55 £1.29
55	MO112436050/0 In stock	Plate	£1.84 £1.53
56	MO125510056/1 Available to backorder	Pin	£5.35 £4.46
57	MO325670008/1 In stock	Washer	£1.55 £1.29
58	MO112156602/0 In stock	Nut	£1.39 £1.16
59	MO112794980/0 Available to backorder	Screw	£2.11 £1.76
60	MO112295200/0 In stock	Nut	£1.39 £1.16
61	MO125510070/1 Available to backorder	Pin	£6.19 £5.16
62	MO112523090/0 Available to backorder	Washer	£1.84 £1.53
63	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
64	MO125430218/1 Available to backorder	Spring From S.N 382500	£5.76 £4.80
66	MO112293200/0 In stock	Nut	£1.55 £1.29
71	MO125510048/1 Available to backorder	Pin	£2.40 £2.00
72	MO325318223/0 Available to backorder	Gearshift	£6.77 £5.64
73	MO382000585/0 Available to backorder	Axle	£38.00 £31.67
74	MO112815271/0 Available to backorder	Screw	£1.70 £1.42
75	MO325785355/0 Available to backorder	Support	£2.40 £2.00
76	MO325785354/0 Available to backorder	Support	£2.11 £1.76
77	MO325034003/0 Available to backorder	Brass	£1.84 £1.53
78	MO112523040/0 In stock	Washer	£1.55 £1.29
79	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
