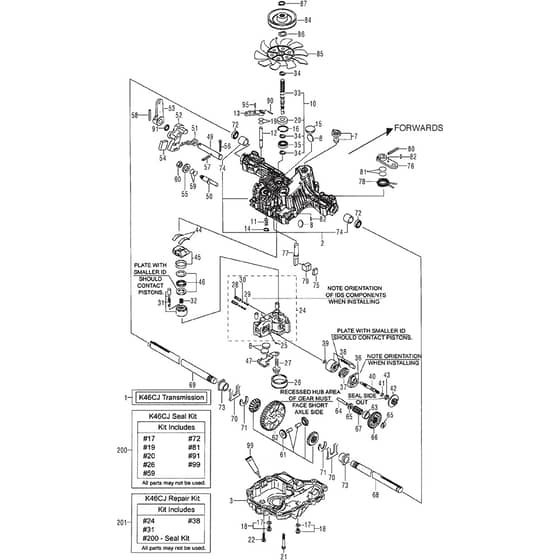

2135H - 2009 - 13-2716-99 - Mountfield Front Mower Kanzaki Transaxle K46Cj Diagram

Name: 2135H - 2009 - 13-2716-99 - Mountfield Front Mower Kanzaki Transaxle K46Cj Diagram
SKU: 2135h_13_2716_99_kanzaki_transaxle_k46cj-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2135H - 2009 - 13-2716-99 - Mountfield Front Mower Kanzaki Transaxle K46Cj Diagram

Description

Mountfield 2135H Parts Diagram

Product Name - 2135H

Model Year - 2009

Model Type -

Art.N - 13-2716-99

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-7766-01 Available to backorder	Transaxle K46Cj	£1,529.28 £1,274.40
7	MO1139-1595-01 Available to backorder	Vent Valve K46CJ	£17.40 £14.50
8	MO1139-1150-01 Available to backorder	Magnet K46CJ	£8.24 £6.87
9	MO1139-1341-01 Available to backorder	Magnet Holder K46CJ	£5.62 £4.68
10	MO1139-1499-01 Available to backorder	Pump Shaft Kit K46CJ	£72.14 £60.12
11	MO1139-1347-01 Available to backorder	Spring K46CJ	£4.52 £3.77
13	MO1139-1189-01 Available to backorder	By-Pass Lever K46CJ	£9.19 £7.66
14	MO1139-1161-01 Available to backorder	Ring K46CJ	£1.55 £1.29
15	MO1139-1735-01 In stock	Bore Plug K46CJ	£9.61 £8.01
16	MO1139-1104-01 Available to backorder	Snap Ring K46CJ	£4.52 £3.77
17	MO1139-1103-01 Available to backorder	Washer K46CJ	£6.31 £5.26
18	MO1139-1500-01 Available to backorder	Drain Bolt Kit K46CJ	£6.60 £5.50
21	MO1139-1295-01 Available to backorder	Screw K46CJ	£4.94 £4.12
25	MO1139-1158-01 Available to backorder	Pin K46CJ	£4.52 £3.77
26	MO1139-1405-01 Available to backorder	Filter K46CJ	£22.76 £18.97
28	MO1139-1468-01 Available to backorder	Ids Valve K46CJ	£13.87 £11.56
29	MO1139-1243-01 Available to backorder	Spring K46CJ	£4.36 £3.63
30	TT168T2084770 Available to backorder	Filter K46CJ	£2.46 £2.05
31	MO1139-1601-01 Available to backorder	Cylinder Block Kit K46CJ	£124.45 £103.71
32	MO1139-1245-01 Available to backorder	Pump Spring K46CJ	£4.81 £4.01
33	MO1139-1406-01 Available to backorder	Pump Shaft K46CJ	£57.71 £48.09
34	MO1139-1750-01 Available to backorder	Ring K46CJ	£4.52 £3.77
35	MO1139-1110-01 Available to backorder	Ball Bearing K46CJ	£17.98 £14.98
36	MO1139-1157-01 Available to backorder	Housing K46CJ	£18.31 £15.26
37	MO1139-1501-01 Available to backorder	Bearing K46CJ	£48.10 £40.08
39	MO1139-1160-01 Available to backorder	Washer K46CJ	£4.52 £3.77
40	MO1139-1353-01 Available to backorder	Motor Shaft K46CJ	£39.61 £33.01
41	MO1139-1021-01 Available to backorder	Snap Ring K46CJ	£4.52 £3.77
42	MO1139-1272-01 Available to backorder	Motor Gear K46CJ	£23.20 £19.33
43	MO1139-1453-01 Available to backorder	Bearing K46CJ	£18.77 £15.64
45	MO1139-2691-01 Available to backorder	Swash Plate K46CJ	£45.26 £37.72
46	MO1139-1508-01 Available to backorder	Thrust Bearing Kit K46CJ	£69.31 £57.76
51	MO1139-1407-01 Available to backorder	Torsion Spring K46CJ	£12.16 £10.13
52	MO1139-1409-01 Available to backorder	Lever K46CJ	£56.11 £46.76
53	MO1139-1325-01 Available to backorder	Control Lever K46CJ	£27.17 £22.64
55	MO1139-1102-01 Available to backorder	Washer K46CJ	£5.76 £4.80
56	MO1139-1355-01 Available to backorder	Cotter Pin K46CJ	£4.52 £3.77
57	MO1139-1329-01 Available to backorder	Pin K46CJ	£4.82 £4.02
58	MO1139-1285-01 Available to backorder	Pin K46CJ	£4.52 £3.77
60	MO1139-1127-01 Available to backorder	Nut K46CJ	£4.52 £3.77
61	MO1139-1404-01 Available to backorder	Diff.Gear Kit K46CJ	£73.56 £61.30
62	MO1139-1258-01 Available to backorder	Final Gear K46CJ	£111.76 £93.13
63	MO1139-1255-01 Available to backorder	Collar K46CJ	£9.89 £8.24
64	MO1139-1256-01 Available to backorder	Reduction Shaft K46CJ	£14.70 £12.25
67	MO1139-1361-01 Available to backorder	Final Pinion Gear K46CJ	£25.18 £20.98
68	MO1139-1342-01 Available to backorder	Axle Shaft-Rh K46CJ	£121.66 £101.38
69	MO1139-1343-01 Available to backorder	Axle Shaft-Lh K46CJ	£121.66 £101.38
70	MO1139-1078-01 Available to backorder	Thrust Washer K46CJ	£12.04 £10.03
71	MO1139-1163-01 Available to backorder	Ring K46CJ	£4.52 £3.77
72	MO1139-1080-01 In stock	Seal 19328 K46CJ	£13.30 £11.08
73	MO1139-1164-01 Available to backorder	Bushing K46CJ	£6.60 £5.50
74	MO1139-1414-01 Available to backorder	Bushing K46CJ	£6.26 £5.22
75	MO1139-1260-01 Available to backorder	Brake Shoe K46CJ	£4.52 £3.77
76	MO1139-1261-01 Available to backorder	Brake Arm K46CJ	£10.04 £8.37
77	MO1139-1320-01 Available to backorder	Brake Shaft K46CJ	£47.80 £39.83
78	MO1139-1411-01 Available to backorder	Return Spring K46CJ	£9.23 £7.69
79	MO1139-1264-01 Available to backorder	Brake Actuator K46CJ	£5.62 £4.68
80	MO1139-1282-01 Available to backorder	Pin K46CJ	£5.04 £4.20
84	MO1139-1484-01 Available to backorder	Belt Pulley K46CJ - 1A6460-25750	£44.50 £37.08
85	MO1134-4190-01 In stock	Fan K46CJ	£21.12 £17.60
86	MO1139-1266-01 Available to backorder	Washer K46CJ	£4.82 £4.02
87	MO1139-1149-01 Available to backorder	Snap Ring K46CJ	£4.97 £4.14
95	MO1139-1279-01 Available to backorder	Pin K46CJ	£4.52 £3.77
99	MO1139-1443-01 Available to backorder	Sealant (Tube) K46CJ	£38.20 £31.83
200	MO1139-1403-01 Available to backorder	Seal Kit Marked S _ K46CJ	£188.96 £157.47
201	MO1139-1600-01 Available to backorder	Repair Kit	£1,250.00 £1,041.67
