2135H - 2009 - 13-2716-99 - Mountfield Front Mower B&S Engine Diagram

Name: 2135H - 2009 - 13-2716-99 - Mountfield Front Mower B&S Engine Diagram
SKU: 2135h_13_2716_99_b_s_engine-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

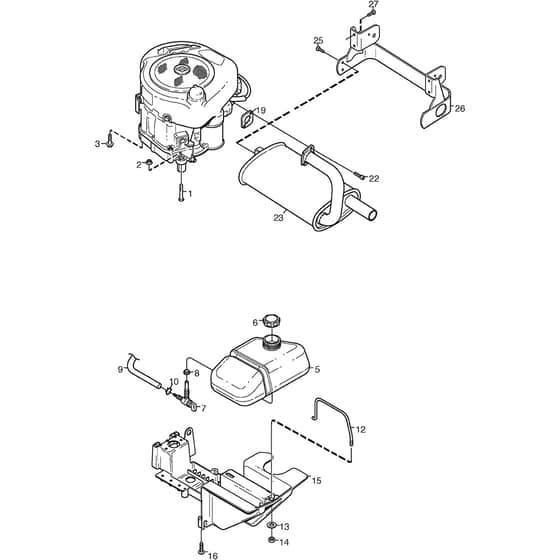

2135H - 2009 - 13-2716-99 - Mountfield Front Mower B&S Engine Diagram

Description

Mountfield 2135H Parts Diagram

Product Name - 2135H

Model Year - 2009

Model Type -

Art.N - 13-2716-99

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO9997-0840-16 Available to backorder	Screw	£1.55 £1.29
2	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
3	MO9955-3725-16 Available to backorder	Screw	£2.53 £2.11
5	MO1134-6626-01 Available to backorder	Fuel Tank	£43.21 £36.01
6	MO125795001/1 In stock	Fuel Tank Cap	£7.96 £6.63
7	MO118563206/0 In stock	Fuel Shut-Off Valve	£23.65 £19.71
8	MO337260156/0 In stock	Grommet	£8.66 £7.22
9	MO1134-2975-15 Available to backorder	Fuel Tube L . 460 mm	£16.09 £13.41
10	MO9578-0023-02 Available to backorder	Hose Clamp	£6.47 £5.39
12	MO1134-4808-01 Available to backorder	Tank Clamp	£13.93 £11.61
13	MO112523040/0 In stock	Washer	£1.49 £1.24
14	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
15	MO1134-4807-02 Available to backorder	Support	£90.10 £75.08
16	MO9829-8830-12 Available to backorder	Screw	£2.12 £1.77
19	MO1134-0433-00 Available to backorder	Gasket	£5.48 £4.57
22	MO1134-4930-01 Available to backorder	Screw	£1.97 £1.64
25	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
