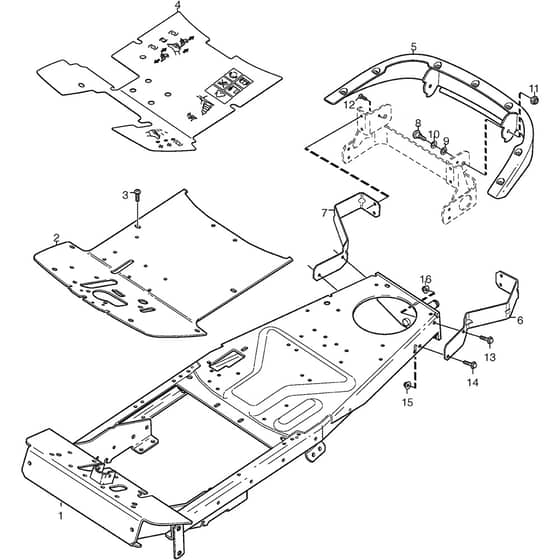

2125M - 2009 - 13-2705-99 - Mountfield Front Mower Frame Diagram

Name: 2125M - 2009 - 13-2705-99 - Mountfield Front Mower Frame Diagram
SKU: 2125m_13_2705_99_frame-group
Price: 1.05 GBP
Availability: InStock

Part No. 2125m_13_2705_99_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2125M - 2009 - 13-2705-99 - Mountfield Front Mower Frame Diagram

Description

Mountfield 2125M Parts Diagram

Product Name - 2125M

Model Year - 2009

Model Type -

Art.N - 13-2705-99

Engine Model -

	Part No.	Details
1	MO387800059/0 Available to backorder	Frame	£773.57 £644.64
2	MO1134-5293-02 Available to backorder	Floor Plate	£154.86 £129.05
3	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
6	MO1134-6630-01 Available to backorder	Attachment-Lh	£40.75 £33.96
8	MO1134-0240-00 In stock	Screw	£8.80 £7.33
9	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
10	MO9694-0001-00 Available to backorder	Washer	£1.63 £1.36
11	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
12	MO9943-0516-16 In stock	Screw	£1.26 £1.05
13	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
14	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
16	MO112293201/0 In stock	Use 112293201.0	£1.70 £1.42
