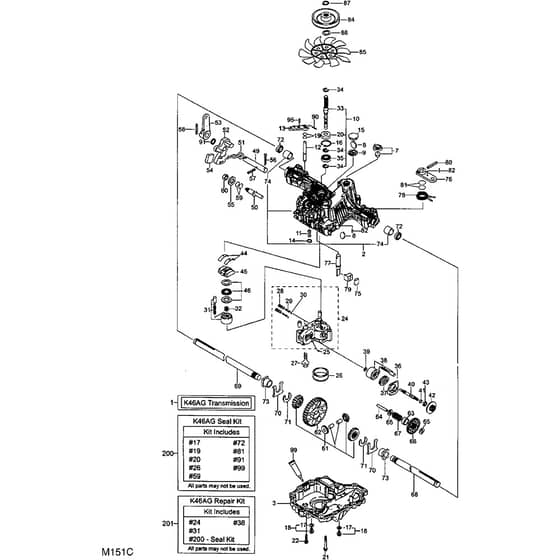

2125H - 2008 - 13-2716-98 - Mountfield Front Mower Kanzaki Transaxle K46Ag Diagram

Name: 2125H - 2008 - 13-2716-98 - Mountfield Front Mower Kanzaki Transaxle K46Ag Diagram
SKU: 2125h_13_2716_98_kanzaki_transaxle_k46ag-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2125H - 2008 - 13-2716-98 - Mountfield Front Mower Kanzaki Transaxle K46Ag Diagram

Description

Mountfield 2125H Parts Diagram

Product Name - 2125H

Model Year - 2008

Model Type -

Art.N - 13-2716-98

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-7766-01 Available to backorder	Transaxle (K46)	£1,529.28 £1,274.40
7	MO1139-1595-01 Available to backorder	Vent Valve Assy K46AG	£17.40 £14.50
8	MO1139-1150-01 Available to backorder	Magnet K46AG	£8.24 £6.87
9	MO1139-1341-01 Available to backorder	Magnet Holder K46AG	£5.62 £4.68
10	MO1139-1499-01 Available to backorder	Pump Shaft Kit K46AG	£72.14 £60.12
11	MO1139-1347-01 Available to backorder	Spring K46AG	£4.52 £3.77
13	MO1139-1189-01 Available to backorder	By-Pass Lever K46AG	£9.19 £7.66
14	MO1139-1161-01 Available to backorder	Ring K46AG	£1.55 £1.29
15	MO1139-1735-01 In stock	Bore Plug K46AG	£9.61 £8.01
16	MO1139-1104-01 Available to backorder	Snap Ring K46AG	£4.52 £3.77
17	MO1139-1103-01 Available to backorder	Washer K46AG	£6.31 £5.26
18	MO1139-1500-01 Available to backorder	Drain Bolt Kit K46AG	£6.60 £5.50
21	MO1139-1295-01 Available to backorder	Screw K46AG	£4.94 £4.12
24	MO1139-1502-01 Available to backorder	Center Case K46AG	£307.98 £256.65
25	MO1139-1158-01 Available to backorder	Pin K46AG	£4.52 £3.77
26	MO1139-1405-01 Available to backorder	Filter K46AG	£22.76 £18.97
29	MO1139-1338-01 Available to backorder	Spring K46AG	£1.75 £1.46
30	MO1139-1346-01 Available to backorder	Ball K46AG	£1.97 £1.64
31	MO1139-1601-01 Available to backorder	Cylinder Block Kit K46AG	£124.45 £103.71
32	MO1139-1245-01 Available to backorder	Pump Spring K46AG	£4.81 £4.01
33	MO1139-1406-01 Available to backorder	Pump Shaft K46AG	£57.71 £48.09
34	MO1139-1750-01 Available to backorder	Ring K46AG	£4.52 £3.77
35	MO1139-1110-01 Available to backorder	Ball Bearing K46AG	£17.98 £14.98
36	MO1139-1157-01 Available to backorder	Housing K46AG	£18.31 £15.26
37	MO1139-1501-01 Available to backorder	Bearing K46AG	£48.10 £40.08
38	MO1139-1139-01 Available to backorder	Cylinder Block Assy K46AG	£229.15 £190.96
39	MO1139-1160-01 Available to backorder	Washer K46AG	£4.52 £3.77
40	MO1139-1353-01 Available to backorder	Motor Shaft K46AG	£39.61 £33.01
41	MO1139-1021-01 Available to backorder	Snap Ring K46AG	£4.52 £3.77
42	MO1139-1272-01 Available to backorder	Motor Gear K46AG	£23.20 £19.33
43	MO1139-1453-01 Available to backorder	Bearing K46AG	£18.77 £15.64
45	MO1139-1475-01 Available to backorder	Swash Plate K46AG	£32.06 £26.72
51	MO1139-1407-01 Available to backorder	Torsion Spring K46AG	£12.16 £10.13
52	MO1139-1409-01 Available to backorder	Lever K46AG	£56.11 £46.76
53	MO1139-1325-01 Available to backorder	Control Lever K46AG	£27.17 £22.64
55	MO1139-1102-01 Available to backorder	Washer K46AG	£5.76 £4.80
56	MO1139-1355-01 Available to backorder	Cotter Pin K46AG	£4.52 £3.77
57	MO1139-1329-01 Available to backorder	Pin K46AG	£4.82 £4.02
58	MO1139-1285-01 Available to backorder	Pin K46AG	£4.52 £3.77
60	MO1139-1127-01 Available to backorder	Nut K46AG	£4.52 £3.77
61	MO1139-1404-01 Available to backorder	Diff.Gear Kit K46AG	£73.56 £61.30
62	MO1139-1258-01 Available to backorder	Final Gear K46AG	£111.76 £93.13
63	MO1139-1255-01 Available to backorder	Collar K46AG	£9.89 £8.24
64	MO1139-1256-01 Available to backorder	Reduction Shaft K46AG	£14.70 £12.25
65	MO1139-1398-01 Available to backorder	Washer K46AG	£5.22 £4.35
67	MO1139-1361-01 Available to backorder	Final Pinion Gear K46AG	£25.18 £20.98
68	MO1139-1342-01 Available to backorder	Axle Shaft-Rh K46AG	£121.66 £101.38
69	MO1139-1343-01 Available to backorder	Axle Shaft-Lh K46AG	£121.66 £101.38
70	MO1139-1078-01 Available to backorder	Thrust Washer K46AG	£12.04 £10.03
71	MO1139-1163-01 Available to backorder	Ring K46AG	£4.52 £3.77
72	MO1139-1080-01 In stock	Seal 19328 K46AG	£13.30 £11.08
73	MO1139-1164-01 Available to backorder	Bushing K46AG	£6.60 £5.50
74	MO1139-1414-01 Available to backorder	Bushing K46AG	£6.26 £5.22
75	MO1139-1260-01 Available to backorder	Brake Shoe K46AG	£4.52 £3.77
76	MO1139-1261-01 Available to backorder	Brake Arm K46AG	£10.04 £8.37
77	MO1139-1320-01 Available to backorder	Brake Shaft K46AG	£47.80 £39.83
78	MO1139-1411-01 Available to backorder	Return Spring K46AG	£9.23 £7.69
79	MO1139-1264-01 Available to backorder	Brake Actuator K46AG	£5.62 £4.68
80	MO1139-1282-01 Available to backorder	Pin K46AG	£5.04 £4.20
84	MO1139-1484-01 Available to backorder	Belt Pulley K46AG - 1A6460-25750	£44.50 £37.08
85	MO1134-4190-01 In stock	Fan K46AG	£21.12 £17.60
86	MO1139-1266-01 Available to backorder	Washer K46AG	£4.82 £4.02
87	MO1139-1149-01 Available to backorder	Snap Ring K46AG	£4.97 £4.14
95	MO1139-1279-01 Available to backorder	Pin K46AG	£4.52 £3.77
99	MO1139-1443-01 Available to backorder	Sealant (Tube) K46AG	£38.20 £31.83
200	MO1139-1403-01 Available to backorder	Seal Kit Marked S _ K46AG	£188.96 £157.47
