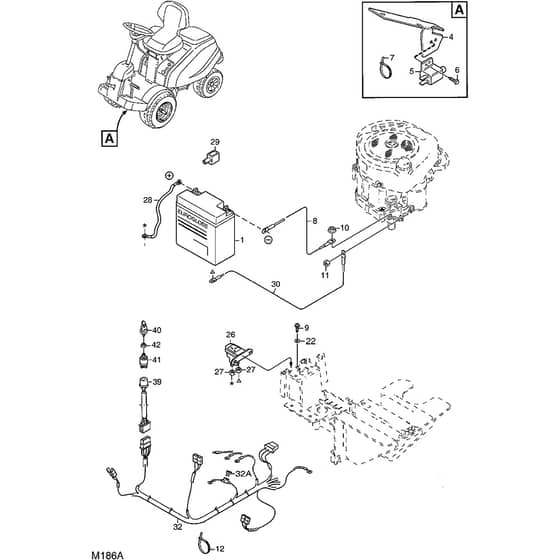

2125H - 2008 - 13-2716-98 - Mountfield Front Mower Electric Equipment Diagram

Name: 2125H - 2008 - 13-2716-98 - Mountfield Front Mower Electric Equipment Diagram
SKU: 2125h_13_2716_98_electric_equipment-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2125H - 2008 - 13-2716-98 - Mountfield Front Mower Electric Equipment Diagram

Description

Mountfield 2125H Parts Diagram

Product Name - 2125H

Model Year - 2008

Model Type -

Art.N - 13-2716-98

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118120068/0 In stock	Battery	£113.48 £94.57
4	MO1134-4610-01 Available to backorder	Switch Bracket	£23.65 £19.71
5	MO1134-3399-02 Available to backorder	Switch	£43.64 £36.37
6	MO9852-8013-16 Available to backorder	Screw	£2.12 £1.77
8	MO1134-2042-02 Available to backorder	Battery Cable L . 350 mm	£25.84 £21.53
9	MO9838-9516-12 Available to backorder	Screw	£2.12 £1.77
10	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
11	MO112361005/0 Available to backorder	Nut 1.4 UNC	£4.22 £3.52
12	MO9579-0003-00 Available to backorder	Cable Holder	£2.12 £1.77
22	MO112523040/0 In stock	Washer	£1.49 £1.24
26	MO118736112/0 In stock	Solenoid	£38.00 £31.67
27	MO9743-5121-32 Available to backorder	Nut	£1.40 £1.17
28	MO1134-0234-02 Available to backorder	Battery Cable (+) L . 395 mm	£24.42 £20.35
29	MO1134-2310-01 Available to backorder	Guard Cap (+)	£8.87 £7.39
30	MO1134-4702-02 Available to backorder	Cable L . 480 mm	£22.69 £18.91
32	MO1134-3496-06 Available to backorder	Fuse (20A) Yellow (32A)	£1.40 £1.17
32	MO187040304/0 Available to backorder	Cable Harness	£126.97 £105.81
39	MO1134-6348-01 Available to backorder	Cable Harness	£30.52 £25.43
40	MO1134-4734-01 In stock	Ignition Key	£16.67 £13.89
41	MO1134-4093-01 Available to backorder	Ignition Switch	£64.75 £53.96
42	MO1134-4749-01 Available to backorder	Nut	£5.42 £4.52
