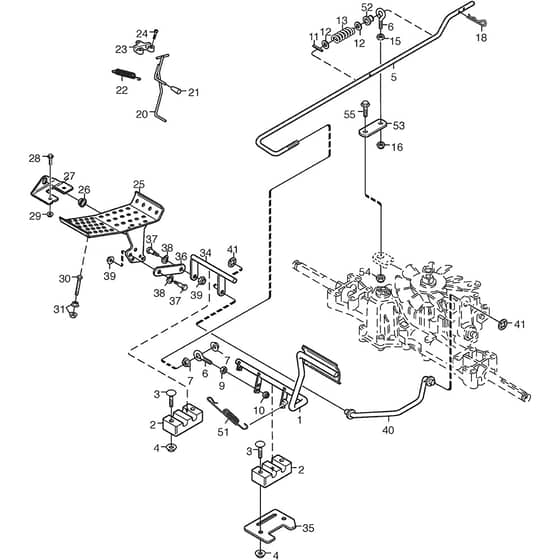

2125H - 2006 - 13-2716-96 - Mountfield Front Mower Foot Controls Diagram

Name: 2125H - 2006 - 13-2716-96 - Mountfield Front Mower Foot Controls Diagram
SKU: 2125h_13_2716_96_foot_controls-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2125H - 2006 - 13-2716-96 - Mountfield Front Mower Foot Controls Diagram

Description

Mountfield 2125H Parts Diagram

Product Name - 2125H

Model Year - 2006

Model Type -

Art.N - 13-2716-96

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-4802-01 Available to backorder	Pedal	£54.90 £45.75
2	MO1134-4624-01 Available to backorder	Bearing	£9.01 £7.51
3	MO9897-0640-12 Available to backorder	Screw	£1.97 £1.64
4	MO112292102/0 In stock	Nut	£1.69 £1.41
5	MO1134-4949-01 Available to backorder	Clutch Rod	£43.64 £36.37
6	MO1134-2138-01 Available to backorder	Eye Bolt	£8.52 £7.10
7	MO9739-1031-22 In stock	Nut	£1.97 £1.64
11	MO9595-0208-00 Available to backorder	Locating Pin	£2.26 £1.88
12	MO112521360/0 In stock	Washer	£1.55 £1.29
13	MO1134-4617-01 Available to backorder	Spring	£4.22 £3.52
18	MO9598-0002-02 Available to backorder	Elastic Pin	£1.55 £1.29
20	MO1134-5353-01 Available to backorder	Brake Rod	£51.62 £43.02
21	MO1134-2786-01 Available to backorder	Knob	£6.05 £5.04
22	MO1131-1497-01 Available to backorder	Brake Spring	£10.20 £8.50
23	MO1134-4002-01 Available to backorder	Brake Rod Attachment	£11.96 £9.97
24	MO9838-9516-12 Available to backorder	Screw	£2.12 £1.77
25	MO1134-6353-01 Available to backorder	Drive Pedal	£46.46 £38.72
26	MO1134-6313-01 Available to backorder	Bearing	£7.03 £5.86
27	MO1134-2700-01 Available to backorder	Bracket	£17.04 £14.20
28	MO9959-0820-16 In stock	Screw	£1.55 £1.29
30	MO9997-0870-16 Available to backorder	Screw	£2.12 £1.77
31	MO112293201/0 In stock	Nut	£1.69 £1.41
34	MO1134-4440-01 Available to backorder	Shaft	£35.12 £29.27
35	MO1134-4793-01 Available to backorder	Stop Plate	£16.88 £14.07
36	MO1134-4441-01 Available to backorder	Link	£12.82 £10.68
37	MO1134-0240-00 In stock	Screw	£8.80 £7.33
38	MO9694-0001-00 Available to backorder	Washer	£1.55 £1.29
40	MO1134-5288-01 Available to backorder	Control Rod	£36.59 £30.49
41	MO112604899/0 In stock	Locking Washer	£1.55 £1.29
51	MO4231-0013-00 In stock	Spring	£8.52 £7.10
52	MO1134-4779-01 Available to backorder	Bushing	£1.82 £1.52
53	MO1134-4972-01 Available to backorder	Brake Link	£12.11 £10.09
54	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
55	MO9997-0820-16 In stock	Screw M6S M8 X 20	£1.55 £1.29
