2125H - 2005 - 13-2716-95 - Mountfield Front Mower Electric Equipment Diagram

Name: 2125H - 2005 - 13-2716-95 - Mountfield Front Mower Electric Equipment Diagram
SKU: 2125h_13_2716_95_electric_equipment-group
Price: 1.22 GBP
Availability: InStock

Part No. 2125h_13_2716_95_electric_equipment-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

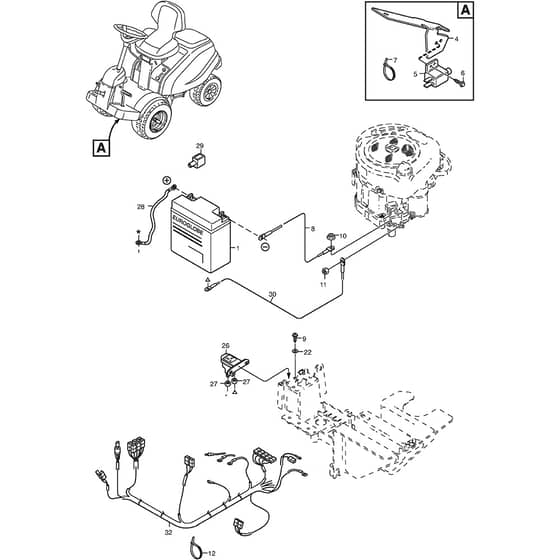

2125H - 2005 - 13-2716-95 - Mountfield Front Mower Electric Equipment Diagram

Description

Mountfield 2125H Parts Diagram

Product Name - 2125H

Model Year - 2005

Model Type -

Art.N - 13-2716-95

Engine Model -

	Part No.	Details
1	MO118120068/0 In stock	Battery	£113.47 £94.56
4	MO1134-4610-01 Available to backorder	Switch Bracket	£23.65 £19.71
5	MO1134-3399-02 Available to backorder	Switch	£43.63 £36.36
6	MO9852-8013-16 Available to backorder	Screw	£2.11 £1.76
8	MO1134-2042-02 Available to backorder	Battery Cable L . 350 mm	£25.84 £21.53
9	MO9838-9516-12 Available to backorder	Screw	£2.11 £1.76
10	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
11	MO112361005/0 Available to backorder	Nut 1.4 UNC	£4.24 £3.53
12	MO9579-0003-00 Available to backorder	Cable Holder	£2.11 £1.76
22	MO112523040/0 In stock	Washer	£1.55 £1.29
26	MO118736112/0 In stock	Solenoid	£38.00 £31.67
27	MO9743-5121-32 Available to backorder	Nut	£1.46 £1.22
28	MO1134-4702-01 Available to backorder	Cable (+) L . 380 mm	£24.85 £20.71
29	MO1134-2310-01 Available to backorder	Guard Cap (+)	£8.86 £7.38
30	MO1134-4702-02 Available to backorder	Cable L . 480 mm	£23.12 £19.27
