2125H - 2004 - 13-2716-94 - Mountfield Front Mower Wheels Diagram

Description

Mountfield 2125H Parts Diagram

Product Name - 2125H

Model Year - 2004

Model Type -

Art.N - 13-2716-94

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
3	MO1134-5009-02 Available to backorder	Stub Axle	£61.93 £51.61
4	MO1134-5009-01 Available to backorder	Right Stub Axle	£61.93 £51.61
7	MO387605001/0 Available to backorder	Steering Pulley	£77.42 £64.52
9	MO1134-0068-00 Available to backorder	Bushing	£4.37 £3.64

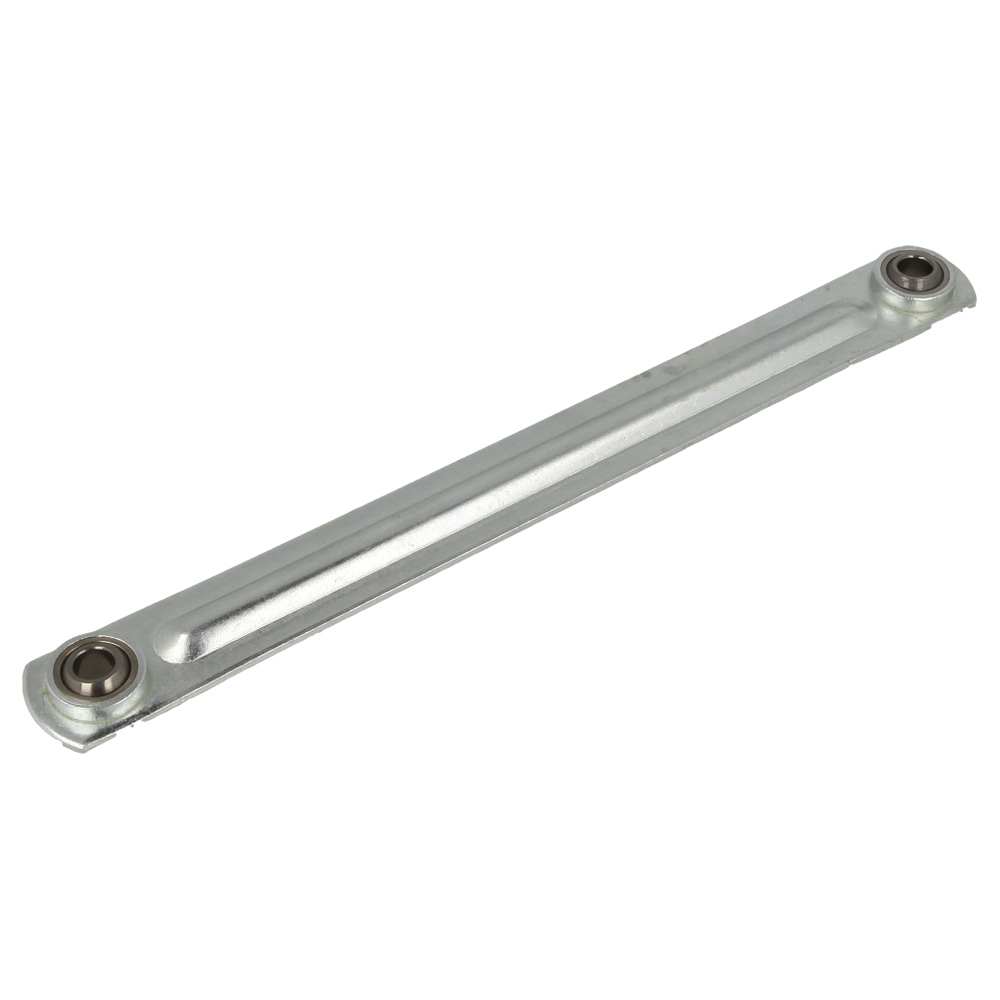

12	MO1134-3247-05 Available to backorder	Tie Rod	£29.56 £24.63
13	MO112691100/0 Available to backorder	Screw L . 35 mm (13B)	£1.55 £1.29
13	MO112793301/0 In stock	Screw L . 25 mm (13A)	£1.55 £1.29
14	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
15	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
16	MO387680305/0 Available to backorder	Rim	£111.22 £92.68
17	MO137038009/0 In stock	Bearing	£5.76 £4.80
18	MO9545-0117-00 Available to backorder	Tyre 13 x 5.00 - 6	£53.50 £44.58
22	MO1134-4344-01 Available to backorder	Hub Cap Black	£9.50 £7.92
25	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29

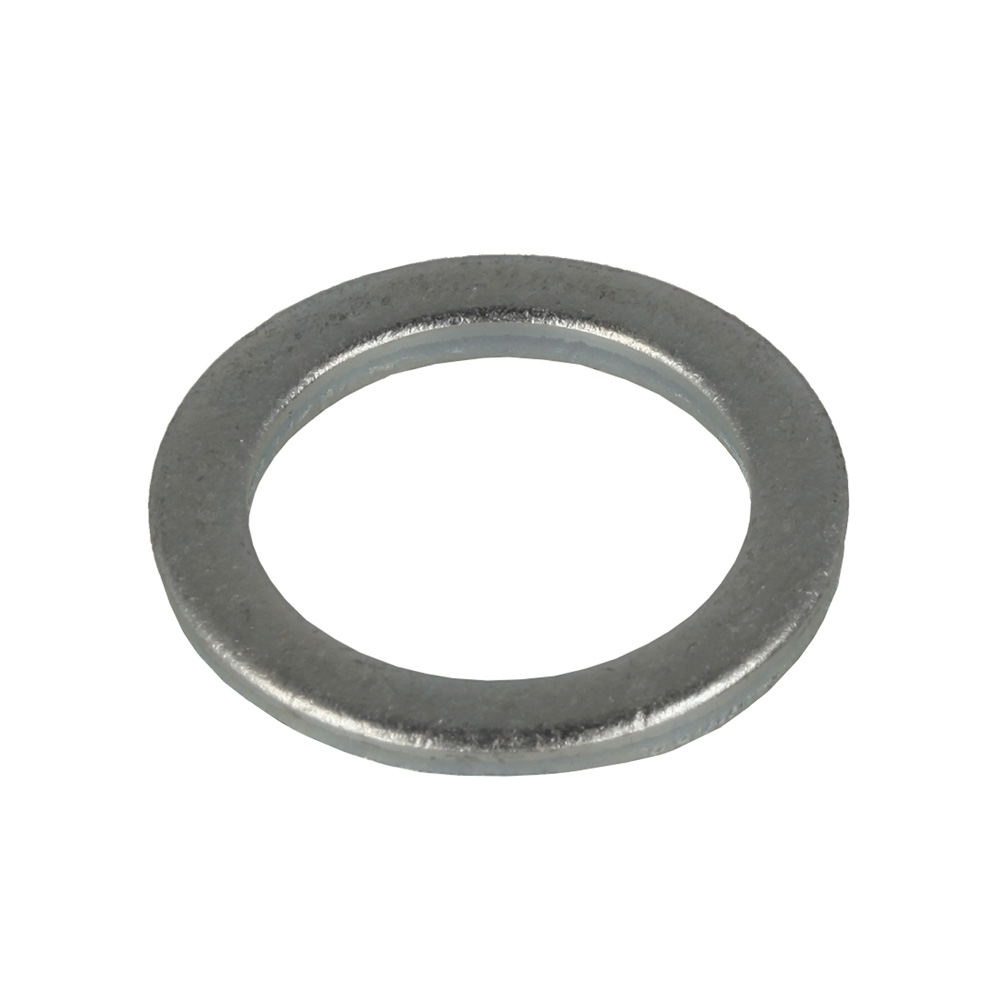

26	MO9699-0088-02 Available to backorder	Washer	£2.12 £1.77
27	MO112609260/0 Available to backorder	Circlip	£1.82 £1.52
28	MO1134-5255-01 Available to backorder	Rim	£100.57 £83.81
29	MO9545-0126-01 In stock	Tyre 16 x 6.00 - 8	£71.08 £59.23
30	MO9545-0500-00 Available to backorder	Valve Assy.	£5.35 £4.46
31	MO112521360/0 In stock	Washer	£1.55 £1.29
32	MO112156602/0 In stock	Lock Nut	£1.40 £1.17
33	MO1134-2471-03 Available to backorder	Key	£8.52 £7.10
34	MO9653-0001-04 Available to backorder	Lock Ring	£2.26 £1.88
35	MO1134-0341-01 Available to backorder	Washer	£6.62 £5.52
36	MO1134-4844-02 Available to backorder	Wheel Hub Assy	£56.16 £46.80

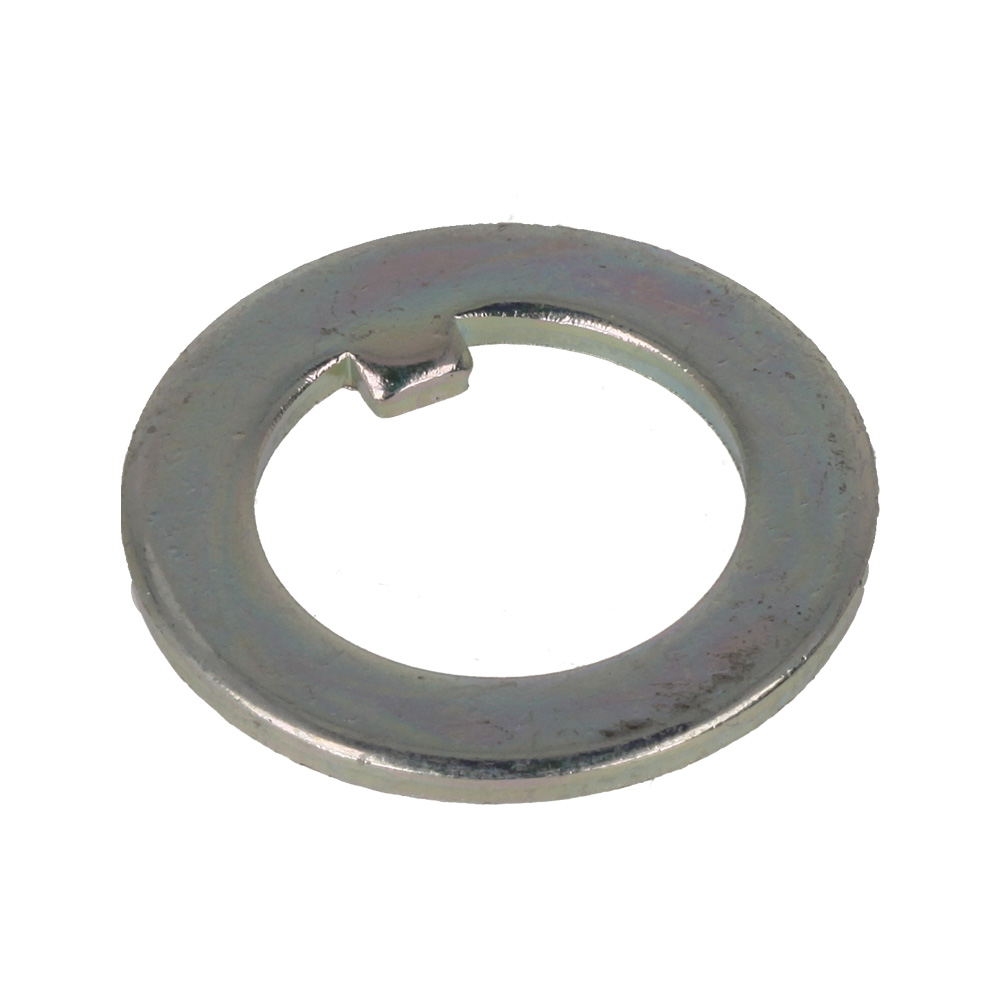

38	MO1134-4981-01 Available to backorder	Washer	£2.95 £2.46
