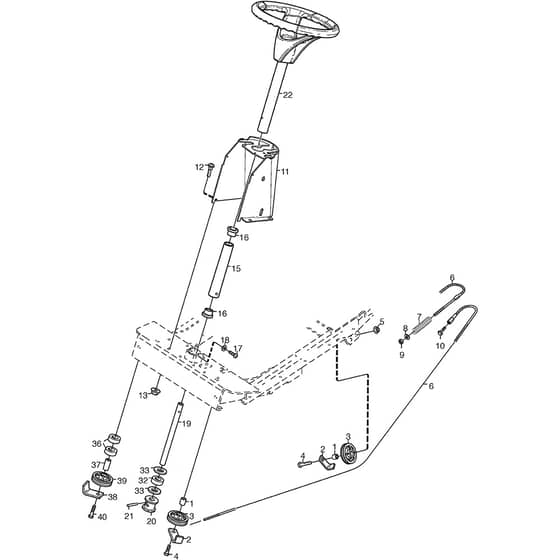

2125H - 2004 - 13-2716-94 - Mountfield Front Mower Steering Diagram

Name: 2125H - 2004 - 13-2716-94 - Mountfield Front Mower Steering Diagram
SKU: 2125h_13_2716_94_steering-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2125H - 2004 - 13-2716-94 - Mountfield Front Mower Steering Diagram

Description

Mountfield 2125H Parts Diagram

Product Name - 2125H

Model Year - 2004

Model Type -

Art.N - 13-2716-94

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-0041-01 Available to backorder	Bushing	£8.94 £7.45
2	MO1134-0046-00 Available to backorder	Wire Clamp	£1.97 £1.64
2	MO1134-3022-01 Available to backorder	Bracket	£56.15 £46.79
3	MO1134-0072-02 Available to backorder	Steering Pulley	£7.39 £6.16
4	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
5	MO9739-1031-22 In stock	Nut	£1.97 £1.64
6	MO1134-2032-04 In stock	Steering Cable	£46.46 £38.72
7	MO1134-1310-01 Available to backorder	Spring	£18.86 £15.72
8	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
9	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
10	MO9959-0820-16 In stock	Screw	£1.55 £1.29
12	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
13	MO112293201/0 In stock	Nut	£1.69 £1.41
15	MO1134-1305-05 Available to backorder	Steering Column.Lower	£44.56 £37.13
16	MO1134-1901-01 Available to backorder	Bearing	£11.96 £9.97
17	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
18	MO112523040/0 In stock	Washer	£1.49 £1.24
19	MO1134-5495-01 Available to backorder	Steering Rod	£86.57 £72.14
20	MO337601201/0 Available to backorder	Steering Pulley	£52.08 £43.40
21	MO9595-0262-00 Available to backorder	Locating Pin	£1.69 £1.41
22	MO387962002/0 Available to backorder	Steering Wheel	£128.40 £107.00
33	MO112521390/0 Available to backorder	Washer	£1.82 £1.52
36	MO1134-3047-01 Available to backorder	Spacer	£7.74 £6.45
37	MO1134-0041-05 Available to backorder	Bushing	£11.06 £9.22
40	MO112692395/2 In stock	Screw M6S M10 X 60 Use 112692395.2	£3.24 £2.70
