2105M - 2008 - 13-2715-98 - Mountfield Front Mower Wheels Diagram

Description

Mountfield 2105M Parts Diagram

Product Name - 2105M

Model Year - 2008

Model Type -

Art.N - 13-2715-98

Engine Model -

	Part No.	Details
1	MO1134-6703-01 Available to backorder	Rear Axle	£429.34 £357.78
3	MO1134-5009-02 Available to backorder	Stub Axle	£61.94 £51.62
4	MO1134-5009-01 Available to backorder	Right Stub Axle	£61.94 £51.62
7	MO387605001/0 Available to backorder	Steering Pulley	£77.44 £64.53
8	MO1134-5575-01 Available to backorder	Spacer	£7.62 £6.35
9	MO1134-0068-00 Available to backorder	Bushing	£4.37 £3.64
10	MO112521390/0 Available to backorder	Washer	£1.84 £1.53
11	MO112694100/0 Available to backorder	Screw	£4.08 £3.40
12	MO1134-3247-05 Available to backorder	Tie Rod	£29.57 £24.64
13	MO112793301/0 Available to backorder	Screw L . 25 mm (13A)	£1.55 £1.29
13	MO112691100/0 Available to backorder	Screw L . 35 mm (13B)	£1.63 £1.36
14	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
15	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
16	MO387680305/0 Available to backorder	Rim	£111.20 £92.67
18	MO9545-0117-00 Available to backorder	Tyre 13 x 5.00 - 6	£53.50 £44.58
22	MO1134-4344-01 Available to backorder	Hub Cap Black	£9.52 £7.93
25	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
26	MO9699-0088-02 Available to backorder	Washer	£2.22 £1.85
27	MO112609260/0 In stock	Circlip	£1.84 £1.53
28	MO1134-5255-01 Available to backorder	Rim	£68.99 £57.49
29	MO9545-0126-01 In stock	Tyre 16 x 6.00 - 8	£71.09 £59.24
30	MO9545-0500-00 Available to backorder	Valve Assy.	£5.34 £4.45
32	MO9731-1031-22 Available to backorder	Nut	£2.22 £1.85
33	MO1134-2471-03 Available to backorder	Key	£8.53 £7.11
34	MO9653-0001-04 Available to backorder	Lock Ring	£2.24 £1.87
35	MO1134-0341-01 Available to backorder	Washer	£6.64 £5.53
36	MO1134-4844-02 Available to backorder	Wheel Hub Assy	£56.16 £46.80

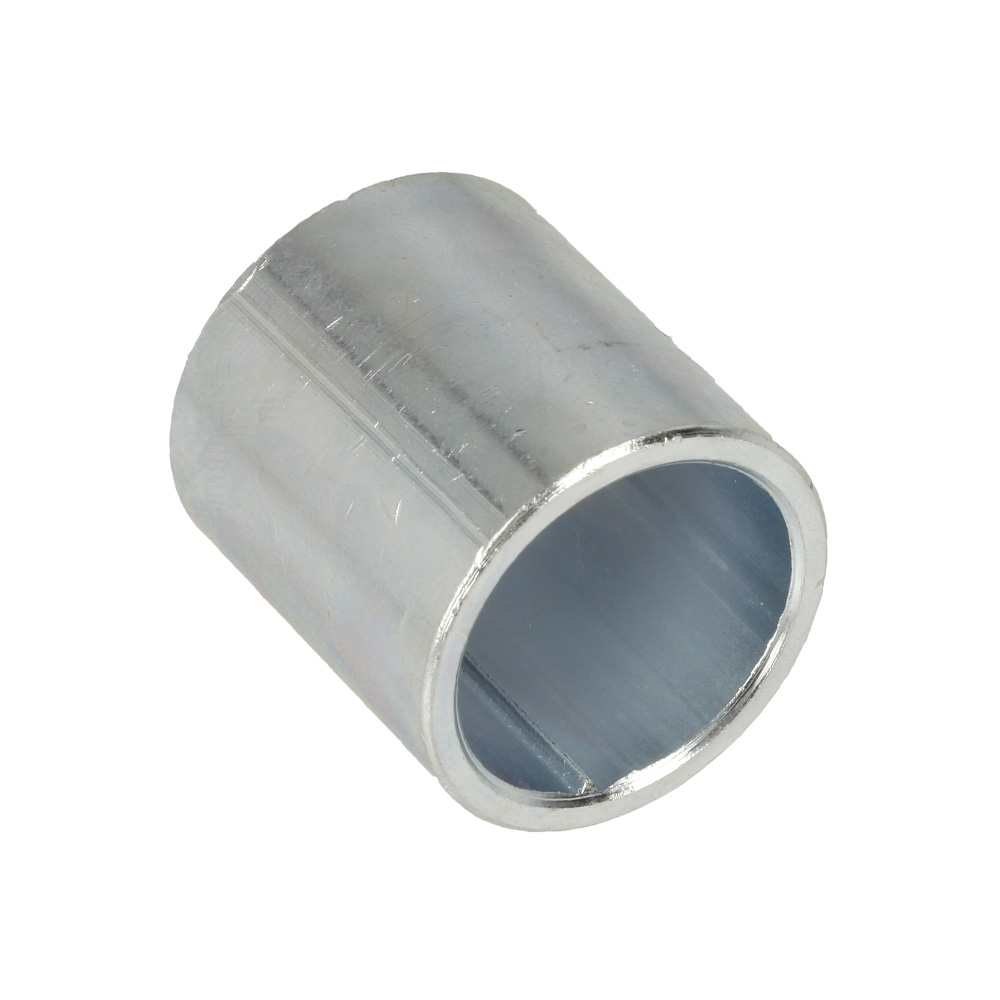

37	MO1134-4845-02 Available to backorder	Hub Sleeve	£8.59 £7.16
38	MO1134-4981-01 Available to backorder	Washer	£2.95 £2.46
50	MO1134-6274-01 Available to backorder	Attachment Pos 51 - 52 incl.	£46.48 £38.73
51	MO137038009/0 In stock	Bearing	£5.76 £4.80
52	MO9501-0502-00 Available to backorder	Grease Joint	£8.53 £7.11
