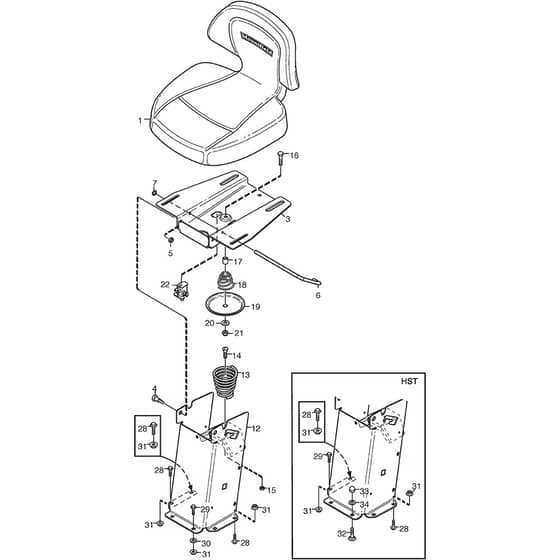

2105M - 2007 - 13-2715-97 - Mountfield Front Mower Seat Diagram

Name: 2105M - 2007 - 13-2715-97 - Mountfield Front Mower Seat Diagram
SKU: 2105m_13_2715_97_seat-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2105M - 2007 - 13-2715-97 - Mountfield Front Mower Seat Diagram

Description

Mountfield 2105M Parts Diagram

Product Name - 2105M

Model Year - 2007

Model Type -

Art.N - 13-2715-97

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
3	MO1134-5301-01 Available to backorder	Upper Seat Bracket	£109.09 £90.91
4	MO1134-0240-00 In stock	Screw	£8.80 £7.33
6	MO1134-5454-01 Available to backorder	Catch	£10.84 £9.03
7	MO112604899/0 In stock	Locking Washer	£1.55 £1.29
13	MO137430116/0 Available to backorder	Spring	£25.34 £21.12
14	MO9924-1235-19 Available to backorder	Screw	£3.79 £3.16
15	MO9747-1231-02 Available to backorder	Nut	£1.78 £1.48
16	MO9997-0840-16 Available to backorder	Screw	£1.55 £1.29
17	MO1134-1565-06 Available to backorder	Spacer	£10.98 £9.15
18	MO1134-5302-01 Available to backorder	Spring	£8.52 £7.10
19	MO1134-5299-01 Available to backorder	Push Plate	£17.60 £14.67
20	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
21	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
22	MO1134-3156-02 Available to backorder	Switch	£46.46 £38.72
28	MO9959-0820-16 In stock	Screw L . 20 mm	£1.55 £1.29
29	MO9959-0825-16 Available to backorder	Screw L . 25 mm	£1.55 £1.29
30	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
31	MO112293201/0 In stock	Use 112293201.0	£1.69 £1.41
