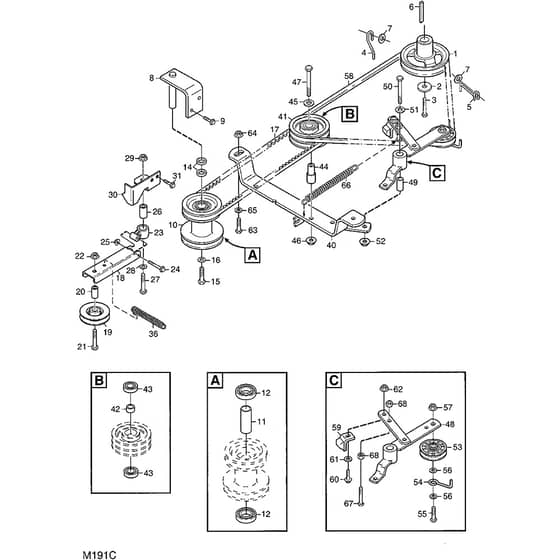

2105M - 2007 - 13-2715-97 - Mountfield Front Mower PTO (Power Take Off) Diagram

Name: 2105M - 2007 - 13-2715-97 - Mountfield Front Mower PTO (Power Take Off) Diagram
SKU: 2105m_13_2715_97_pto_power_take_off_-group
Price: 1.29 GBP
Availability: InStock

Part No. 2105m_13_2715_97_pto_power_take_off_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2105M - 2007 - 13-2715-97 - Mountfield Front Mower PTO (Power Take Off) Diagram

Description

Mountfield 2105M Parts Diagram

Product Name - 2105M

Model Year - 2007

Model Type -

Art.N - 13-2715-97

Engine Model -

	Part No.	Details
1	MO1137-0081-01 Available to backorder	Engine Pulley	£30.98 £25.82
2	MO1134-5017-01 Available to backorder	Washer	£3.79 £3.16
3	MO9987-5332-16 Available to backorder	Screw	£2.11 £1.76
4	MO1134-5058-01 Available to backorder	Belt Guide	£19.01 £15.84
5	MO1134-5057-01 Available to backorder	Belt Guide	£18.43 £15.36
6	MO9600-0251-01 Available to backorder	Key L . 2 1.2"	£6.46 £5.38
7	MO112523060/0 In stock	Washer	£1.55 £1.29
8	MO1134-4650-01 Available to backorder	Pulley Bracket	£57.14 £47.62
9	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
10	MO1134-4643-01 Available to backorder	Intermediate Belt Pulley Pos 11 - 12 incl.	£267.47 £222.89
11	MO1134-0051-12 Available to backorder	Spacer	£15.34 £12.78
12	MO119216056/0 In stock	Ball Bearing	£22.25 £18.54
14	MO1134-0052-00 Available to backorder	Spacer	£8.52 £7.10
15	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
16	MO112521360/0 In stock	Washer	£1.55 £1.29
17	MO1134-9079-01 In stock	Drive Belt	£37.73 £31.44
68	MO112293201/0 In stock	Use 112293201.0	£1.70 £1.42
