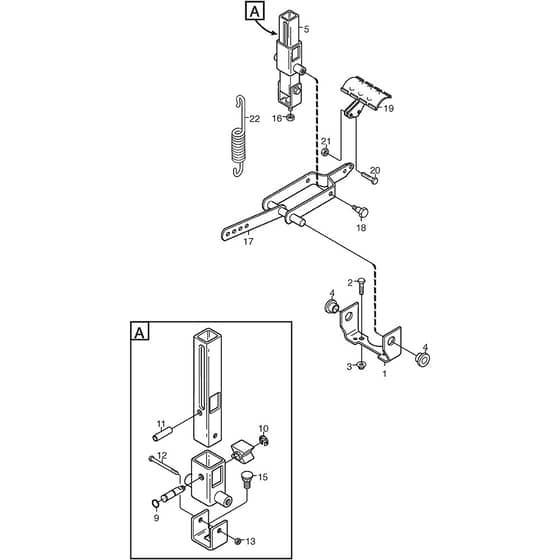

2105M - 2007 - 13-2715-97 - Mountfield Front Mower Lifting Device Diagram

Name: 2105M - 2007 - 13-2715-97 - Mountfield Front Mower Lifting Device Diagram
SKU: 2105m_13_2715_97_lifting_device-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2105M - 2007 - 13-2715-97 - Mountfield Front Mower Lifting Device Diagram

Description

Mountfield 2105M Parts Diagram

Product Name - 2105M

Model Year - 2007

Model Type -

Art.N - 13-2715-97

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-4117-01 Available to backorder	Bracket	£30.97 £25.81
2	MO9959-1025-16 Available to backorder	Screw	£2.68 £2.23
2	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
3	MO9739-1031-22 In stock	Nut	£1.97 £1.64
4	MO1134-2684-01 Available to backorder	Bearing	£6.76 £5.63
5	MO1134-4945-01 Available to backorder	Lift Catch Assy Pos 9 - 15 incl.	£118.94 £99.12
10	MO9650-0039-04 Available to backorder	Lock Ring	£2.12 £1.77
11	MO9595-0276-01 Available to backorder	Locating Pin	£3.10 £2.58
12	MO112689500/0 Available to backorder	Screw	£1.55 £1.29
13	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
15	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
16	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
18	MO1134-0240-00 In stock	Screw	£8.80 £7.33
19	MO1134-4938-01 Available to backorder	Lift Pedal	£24.01 £20.01
20	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
21	MO112292102/0 In stock	Nut	£1.69 £1.41
22	MO4231-0013-00 In stock	Spring	£8.52 £7.10
