2105M - 2005 - 13-2715-95 - Mountfield Front Mower Electric Equipment Diagram

Name: 2105M - 2005 - 13-2715-95 - Mountfield Front Mower Electric Equipment Diagram
SKU: 2105m_13_2715_95_electric_equipment-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2105M - 2005 - 13-2715-95 - Mountfield Front Mower Electric Equipment Diagram

Description

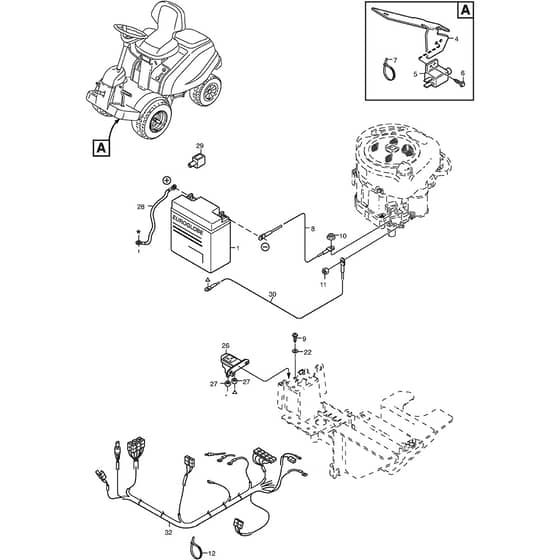

Mountfield 2105M Parts Diagram

Product Name - 2105M

Model Year - 2005

Model Type -

Art.N - 13-2715-95

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118120068/0 In stock	Battery	£113.48 £94.57
8	MO1134-2042-02 Available to backorder	Battery Cable L . 350 mm	£25.84 £21.53
9	MO9838-9516-12 Available to backorder	Screw	£2.12 £1.77
10	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
11	MO112361005/0 Available to backorder	Nut 1.4 UNC	£4.22 £3.52
12	MO9579-0003-00 Available to backorder	Cable Holder	£2.12 £1.77
22	MO112523040/0 In stock	Washer	£1.49 £1.24
26	MO118736112/0 In stock	Solenoid	£38.00 £31.67
27	MO9743-5121-32 Available to backorder	Nut	£1.40 £1.17
28	MO1134-4702-01 Available to backorder	Cable (+) L . 380 mm	£24.84 £20.70
29	MO1134-2310-01 Available to backorder	Guard Cap (+)	£8.87 £7.39
30	MO1134-4702-02 Available to backorder	Cable L . 480 mm	£22.69 £18.91
32	MO1134-5766-01 Available to backorder	Harness (Ready Manual)	£274.51 £228.76
