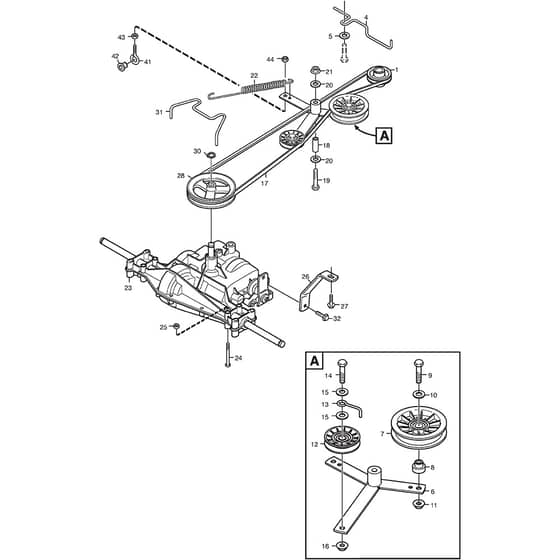

2105M - 2004 - 13-2715-94 - Mountfield Front Mower Transmission Diagram

Description

Mountfield 2105M Parts Diagram

Product Name - 2105M

Model Year - 2004

Model Type -

Art.N - 13-2715-94

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-4611-01 Available to backorder	Engine Belt Pulley	£147.80 £123.17
4	MO1134-5414-01 Available to backorder	Belt Guide	£52.22 £43.52
5	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
6	MO1134-4519-01 Available to backorder	Tension Arm	£43.64 £36.37
7	MO387605016/0 Available to backorder	Tension Roller	£45.04 £37.53
8	MO1134-4614-01 Available to backorder	Spacer	£10.42 £8.68
10	MO112521360/0 In stock	Washer	£1.55 £1.29
11	MO9739-1031-22 In stock	Nut	£1.97 £1.64
12	MO387605008/0 In stock	Tension Roller (Black)	£35.20 £29.33
13	MO1134-1795-01 Available to backorder	Belt Stirrup	£11.47 £9.56
14	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
17	MO1134-9164-01 Available to backorder	Drive Belt	£51.16 £42.63
18	MO1134-1565-08 Available to backorder	Spacer	£8.65 £7.21
22	MO1134-5214-01 Available to backorder	Spring	£13.09 £10.91
23	MO1134-4847-01 Available to backorder	Transaxle (Dana 4360-197) Dana 4360-197	£630.83 £525.69
24	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
24	MO9997-0870-16 Available to backorder	Screw	£2.12 £1.77
26	MO1134-4687-01 Available to backorder	Strut	£16.75 £13.96
27	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
28	MO1137-0006-01 Available to backorder	Belt Pulley	£36.53 £30.44
30	MO112608950/0 Available to backorder	Circlip	£1.55 £1.29
31	MO1134-4707-01 Available to backorder	Belt Guide	£19.01 £15.84
41	MO1134-2138-01 Available to backorder	Eye Bolt	£8.52 £7.10
42	MO1134-4779-01 Available to backorder	Bushing	£1.82 £1.52
43	MO112293201/0 In stock	Nut	£1.69 £1.41
44	MO112155000/0 In stock	Use 112155000.0	£1.55 £1.29
