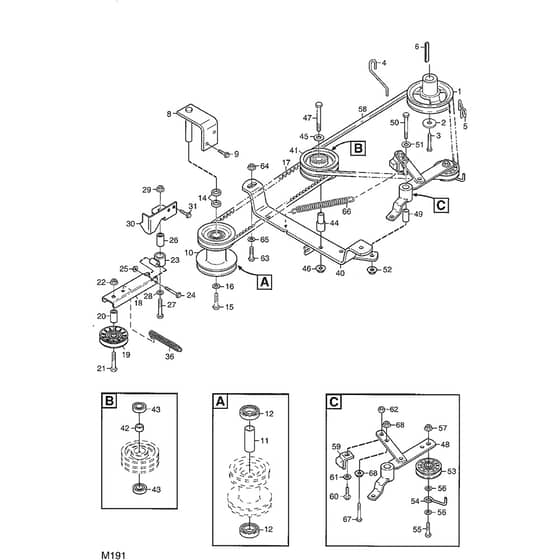

2105M - 2004 - 13-2715-94 - Mountfield Front Mower PTO (Power Take Off) Diagram

Name: 2105M - 2004 - 13-2715-94 - Mountfield Front Mower PTO (Power Take Off) Diagram
SKU: 2105m_13_2715_94_pto_power_take_off_-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2105M - 2004 - 13-2715-94 - Mountfield Front Mower PTO (Power Take Off) Diagram

Description

Mountfield 2105M Parts Diagram

Product Name - 2105M

Model Year - 2004

Model Type -

Art.N - 13-2715-94

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1137-0081-01 Available to backorder	Engine Pulley	£30.97 £25.81
2	MO1134-5017-01 Available to backorder	Washer	£3.79 £3.16
3	MO9987-5332-16 Available to backorder	Screw	£2.12 £1.77
4	MO1134-5058-01 Available to backorder	Belt Guide	£19.01 £15.84
5	MO1134-5057-01 Available to backorder	Belt Guide	£18.43 £15.36
6	MO9600-0251-01 Available to backorder	Key L . 2 1.2"	£6.47 £5.39
8	MO1134-4650-01 Available to backorder	Pulley Bracket	£57.13 £47.61
10	MO1134-4643-01 Available to backorder	Intermediate Belt Pulley Pos 11 - 12 incl.	£267.47 £222.89
11	MO1134-0051-12 Available to backorder	Spacer	£15.34 £12.78
14	MO1134-0052-00 Available to backorder	Spacer	£8.52 £7.10
17	MO1134-9079-01 In stock	Drive Belt	£37.72 £31.43
18	MO1134-5231-01 Available to backorder	Tension Arm	£23.36 £19.47
21	MO112692395/2 In stock	Screw	£3.24 £2.70
23	MO1134-6314-01 Available to backorder	Holder-Tension Arm	£8.34 £6.95
24	MO112689500/0 Available to backorder	Screw	£1.55 £1.29
25	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
26	MO1134-4619-01 Available to backorder	Spacer	£9.16 £7.63
27	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
30	MO1134-4708-02 Available to backorder	Bracket	£54.90 £45.75
31	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
36	MO1131-1507-00 Available to backorder	Spring	£32.38 £26.98
40	MO1134-5037-01 Available to backorder	Mounting Bracket (Black)	£60.54 £50.45
41	MO387605002/0 Available to backorder	Belt Pulley Pos 42 - 43 incl.	£83.06 £69.22
42	MO1134-0051-09 Available to backorder	Spacer	£13.66 £11.38
43	MO119216056/0 In stock	Ball Bearing	£22.25 £18.54
44	MO1134-1839-02 Available to backorder	Shaft	£18.10 £15.08
45	MO112521360/0 In stock	Washer	£1.55 £1.29
46	MO9739-1031-22 In stock	Nut	£1.97 £1.64
47	MO9997-1070-12 In stock	Screw	£3.52 £2.93
48	MO1137-0144-01 Available to backorder	Clutch Lever	£40.82 £34.02
49	MO1134-1565-10 Available to backorder	Spacer	£8.23 £6.86
50	MO112793900/0 Available to backorder	Screw	£1.55 £1.29
51	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
52	MO112293201/0 In stock	Nut	£1.69 £1.41
53	MO387605008/0 In stock	Tension Roller (Black)	£35.20 £29.33
54	MO1134-1795-01 Available to backorder	Belt Stirrup	£11.47 £9.56
58	MO1134-9078-01 Available to backorder	V-Belt	£22.88 £19.07
59	MO1134-4164-03 Available to backorder	Brake Pad	£30.97 £25.81
61	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
62	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
63	MO9959-0820-16 In stock	Screw	£1.55 £1.29
66	MO1134-3974-01 Available to backorder	Spring	£12.10 £10.08
