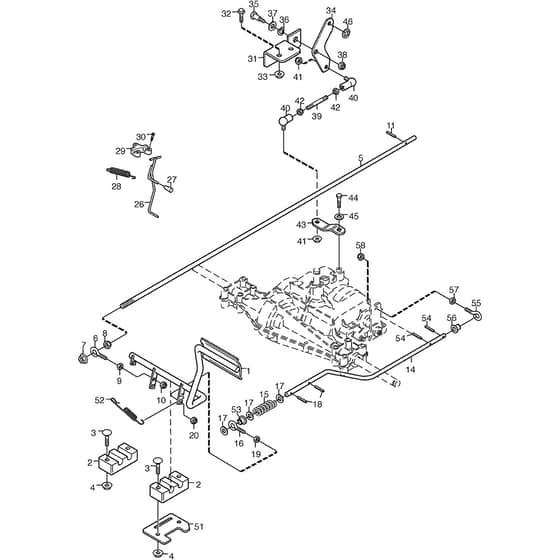

2105M - 2004 - 13-2715-94 - Mountfield Front Mower Foot Controls Diagram

Name: 2105M - 2004 - 13-2715-94 - Mountfield Front Mower Foot Controls Diagram
SKU: 2105m_13_2715_94_foot_controls-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2105M - 2004 - 13-2715-94 - Mountfield Front Mower Foot Controls Diagram

Description

Mountfield 2105M Parts Diagram

Product Name - 2105M

Model Year - 2004

Model Type -

Art.N - 13-2715-94

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-4802-01 Available to backorder	Pedal	£54.90 £45.75
2	MO1134-4624-01 Available to backorder	Bearing	£9.01 £7.51
4	MO112292102/0 In stock	Nut	£1.69 £1.41
5	MO1134-4795-01 Available to backorder	Clutch Rod	£33.79 £28.16
7	MO9739-1031-22 In stock	Nut	£1.97 £1.64
8	MO112156602/0 In stock	Lock Nut	£1.40 £1.17
14	MO1134-4777-01 Available to backorder	Brake Rod	£35.20 £29.33
15	MO1134-4617-01 Available to backorder	Spring	£4.22 £3.52
16	MO1134-2138-01 Available to backorder	Eye Bolt	£8.52 £7.10
17	MO112521360/0 In stock	Washer	£1.55 £1.29
18	MO9595-0208-00 Available to backorder	Locating Pin	£2.26 £1.88
26	MO1134-5353-01 Available to backorder	Brake Rod	£51.62 £43.02
27	MO1134-2786-01 Available to backorder	Knob	£6.05 £5.04
28	MO1131-1497-01 Available to backorder	Brake Spring	£10.20 £8.50
29	MO1134-4002-01 Available to backorder	Brake Rod Attachment	£11.96 £9.97
30	MO9838-9516-12 Available to backorder	Screw	£2.12 £1.77
31	MO1134-4714-01 Available to backorder	Angle Bracket	£23.58 £19.65
32	MO9959-0820-16 In stock	Screw	£1.55 £1.29
33	MO112293201/0 In stock	Nut	£1.69 £1.41
34	MO1134-4715-01 Available to backorder	Triangular Plate	£21.62 £18.02
35	MO1134-0240-00 In stock	Screw	£8.80 £7.33
36	MO9694-0001-00 Available to backorder	Washer	£1.55 £1.29
37	MO122671652/0 Available to backorder	Washer	£2.29 £1.91
38	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
