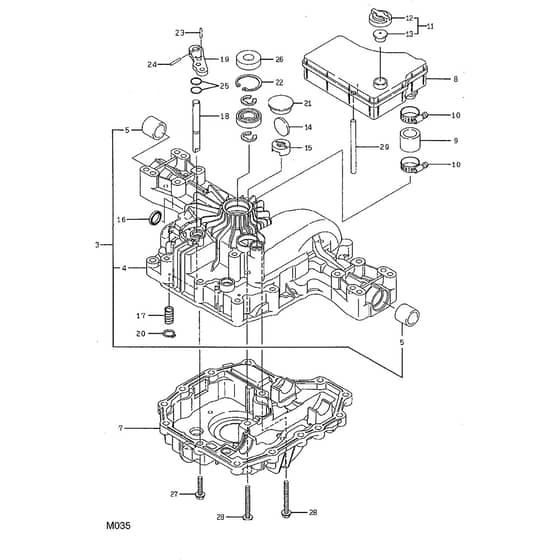

2048H - 2002 - 13-2655-12 - Mountfield Ride On Mower Transaxle Cover Diagram

Description

Mountfield 2048H Parts Diagram

Product Name - 2048H

Model Year - 2002

Model Type - TCP 102 Hydro

Art.N - 13-2655-12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
8	TT1A646024460 Available to backorder	Reservoir Tank K46F	£42.48 £35.40
11	MO1139-1595-01 Available to backorder	Vent Valve Assy Pos 12 - 13 incl. _ K46F	£17.40 £14.50
14	MO1139-1150-01 Available to backorder	Magnet K46F	£8.24 £6.87
16	TT1A646024440 Available to backorder	Seal Ring K46F	£7.32 £6.10
19	MO1139-1189-01 Available to backorder	By-Pass Lever K46F	£9.19 £7.66
20	MO1139-1161-01 Available to backorder	Ring K46F	£1.55 £1.29
21	MO1139-1735-01 In stock	Bore Plug K46F	£9.61 £8.01
22	MO1139-1104-01 Available to backorder	Snap Ring K46F	£4.52 £3.77
23	MO1139-1279-01 Available to backorder	Pin K46F	£4.52 £3.77
25	MO1139-1117-01 Available to backorder	O-Ring K46F	£4.52 £3.77
26	MO1139-1119-01 Available to backorder	Seal 15357 K46F	£6.10 £5.08
28	MO1139-1295-01 Available to backorder	Screw K46F	£4.94 £4.12
