2048H - 2002 - 13-2655-12 - Mountfield Ride On Mower Body Diagram

Description

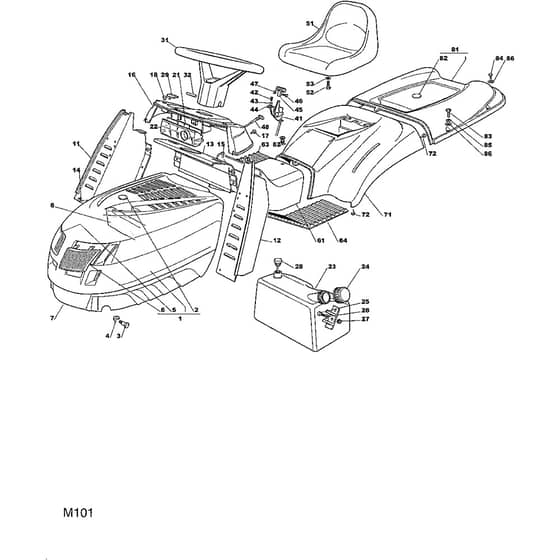

Mountfield 2048H Parts Diagram

Product Name - 2048H

Model Year - 2002

Model Type - TCP 102 Hydro

Art.N - 13-2655-12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382076841/3 Available to backorder	Engine Hood-Red	£222.79 £185.66
2	MO325547025/1 Available to backorder	Plate-Red	£1.82 £1.52
3	MO125510023/1 Available to backorder	Bolt	£5.10 £4.25
4	MO112436050/0 In stock	Lock Plate	£1.82 £1.52
5	MO125410860/0 Available to backorder	Grill-Rh	£19.70 £16.42
6	MO125410861/0 Available to backorder	Grill-Lh	£19.70 £16.42
7	MO125076808/0 Available to backorder	Engine Hood-Lower	£78.84 £65.70
11	MO382785022/8 Available to backorder	Dashboard Support. Right	£29.56 £24.63
12	MO382785021/9 Available to backorder	Dashboard Support. Left	£38.20 £31.83
15	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
16	MO325120278/0 Available to backorder	Dashboard	£43.64 £36.37
18	MO125120200/0 Available to backorder	Plug	£1.40 £1.17
21	MO125600009/0 Available to backorder	Protection-El.Card	£15.76 £13.13
22	MO125600051/0 Available to backorder	Protection-El.Card	£10.14 £8.45
23	MO325735111/3 Available to backorder	Fuel Tank	£53.50 £44.58
24	MO125795000/1 In stock	Tank Cap	£7.74 £6.45
25	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
26	MO112523020/0 In stock	Washer	£1.55 £1.29
27	MO112154330/0 In stock	Nut	£1.55 £1.29
28	MO125290000/0 Available to backorder	Fuel Level Indicator	£52.55 £43.79
29	MO125260000/0 Available to backorder	Grommet	£2.95 £2.46
32	MO112620300/0 Available to backorder	Locating Pin	£1.82 £1.52
41	MO182000201/2 Available to backorder	Throttle Control	£27.59 £22.99
42	MO112788512/0 Available to backorder	Screw	£1.55 £1.29
44	MO112521310/0 Available to backorder	Washer	£1.40 £1.17
45	MO125394501/0 Available to backorder	T-Handle	£1.55 £1.29
47	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
48	MO125090001/2 In stock	Starter Drive	£19.36 £16.13
51	MO125722451/2 Available to backorder	Seat	£197.09 £164.24
52	MO9997-0820-16 In stock	Screw	£1.55 £1.29
53	MO112583500/0 Available to backorder	Washer	£1.55 £1.29
61	MO325110239/1 Available to backorder	Cover-Red	£30.83 £25.69
62	MO125580020/2 In stock	Pivot	£8.29 £6.91
63	MO125110270/0 Available to backorder	Footboard Cover-R	£54.08 £45.07
64	MO382110314/0 Available to backorder	Footboard Cover-L	£54.08 £45.07
72	MO112735402/0 Available to backorder	Screw	£1.55 £1.29
83	MO112674700/0 Available to backorder	Screw	£1.55 £1.29
84	MO112729601/1 Available to backorder	Screw	£1.48 £1.23
85	MO112581200/0 Available to backorder	Washer	£1.97 £1.64
86	MO112521360/0 In stock	Washer	£1.55 £1.29
