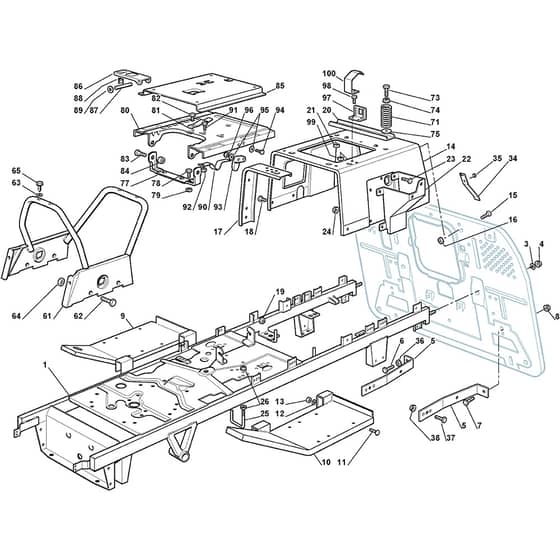

2040H - 2006 - 299941983/MO6 - Mountfield Ride On Mower Frame Diagram

Name: 2040H - 2006 - 299941983/MO6 - Mountfield Ride On Mower Frame Diagram
SKU: 2040h_299941983_mo6_frame-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

2040H - 2006 - 299941983/MO6 - Mountfield Ride On Mower Frame Diagram

Description

Mountfield 2040H Parts Diagram

Product Name - 2040H

Model Year - 2006

Model Type - TS 102 Hydro

Art.N - 299941983/MO6

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
3	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
4	MO112295200/0 In stock	Nut	£1.40 £1.17
5	MO325774273/2 Available to backorder	Stiffening From 01-9-2003	£8.87 £7.39
6	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
7	MO112793102/0 In stock	Screw	£1.55 £1.29
8	MO112293201/0 In stock	Nut	£1.69 £1.41
9	MO382510041/2 Available to backorder	Right Footboard Support	£80.84 £67.37
10	MO382510043/2 Available to backorder	Left Footboard Support	£80.84 £67.37
11	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
12	MO112523040/0 In stock	Washer	£1.49 £1.24
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO325785133/5 Available to backorder	Seat Support	£68.99 £57.49
15	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
16	MO112292102/0 In stock	Nut	£1.69 £1.41
17	MO325650065/1 Available to backorder	Stiffening	£9.28 £7.73
100	MO325430255/0 Available to backorder	Seat Protection Spring	£3.94 £3.28
