195 S - Bertolini Tiller Frame Diagram

Part No. 195_s_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

195 S - Bertolini Tiller Frame Diagram

195 S - Bertolini Tiller Frame Diagram

Description

Bertolini 195 S Parts Diagram

Ref.		Img.	Part No.	Details
	2		EFL66150894 Available to backorder	Washer		£0.48 £0.40
	3		EFL66150884 Available to backorder	Nut		£0.79 £0.66
	5		EFL66151115 Available to backorder	Front Wheel		£31.92 £26.60
	6		EFL66151116 Available to backorder	Nut		£1.61 £1.34
	7		EFL66151117 Available to backorder	Pin		£2.45 £2.04

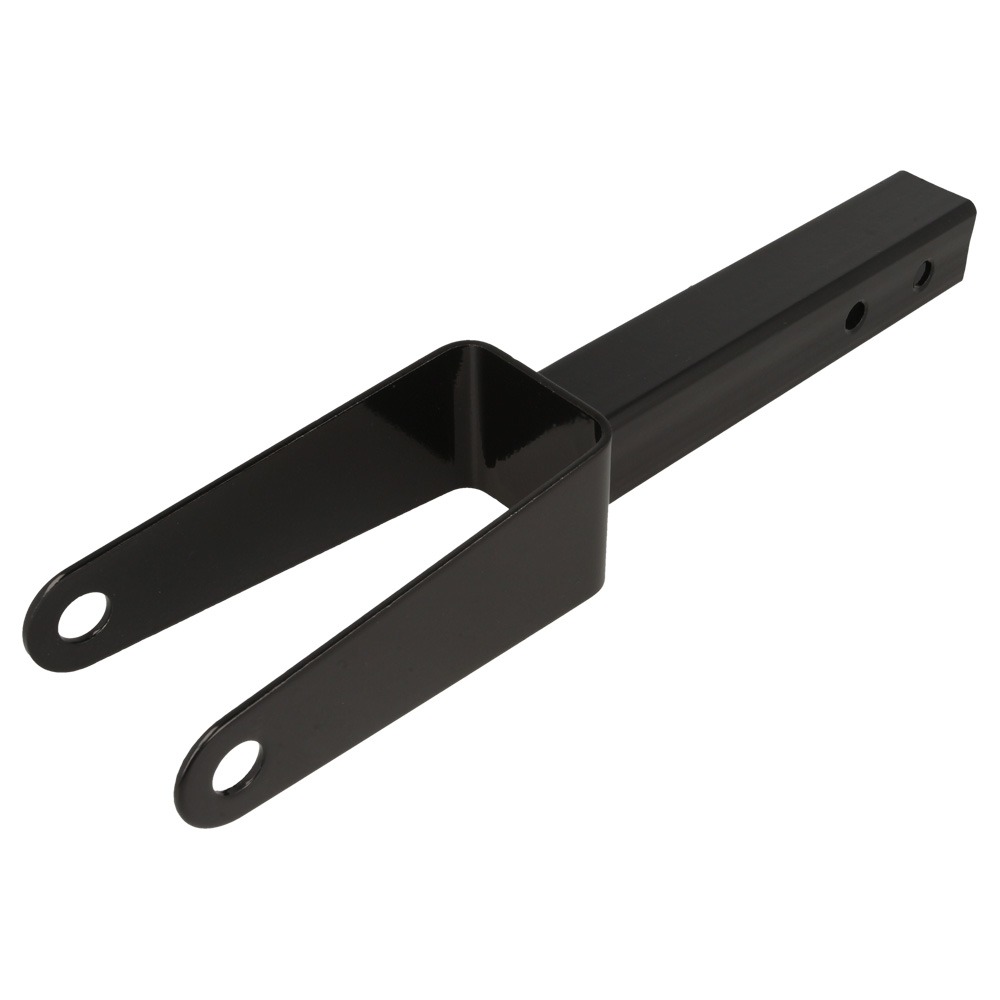

	8		EFL66151118 Available to backorder	Fork		£23.04 £19.20
	9		EFL66150902 Available to backorder	Pin		£1.20 £1.00
	13		EFL66150885 Available to backorder	Nut		£0.62 £0.52
	15		EFL66151648 Available to backorder	Fender		£30.96 £25.80
	16		EFL66150317 Available to backorder	Screw		£0.58 £0.48

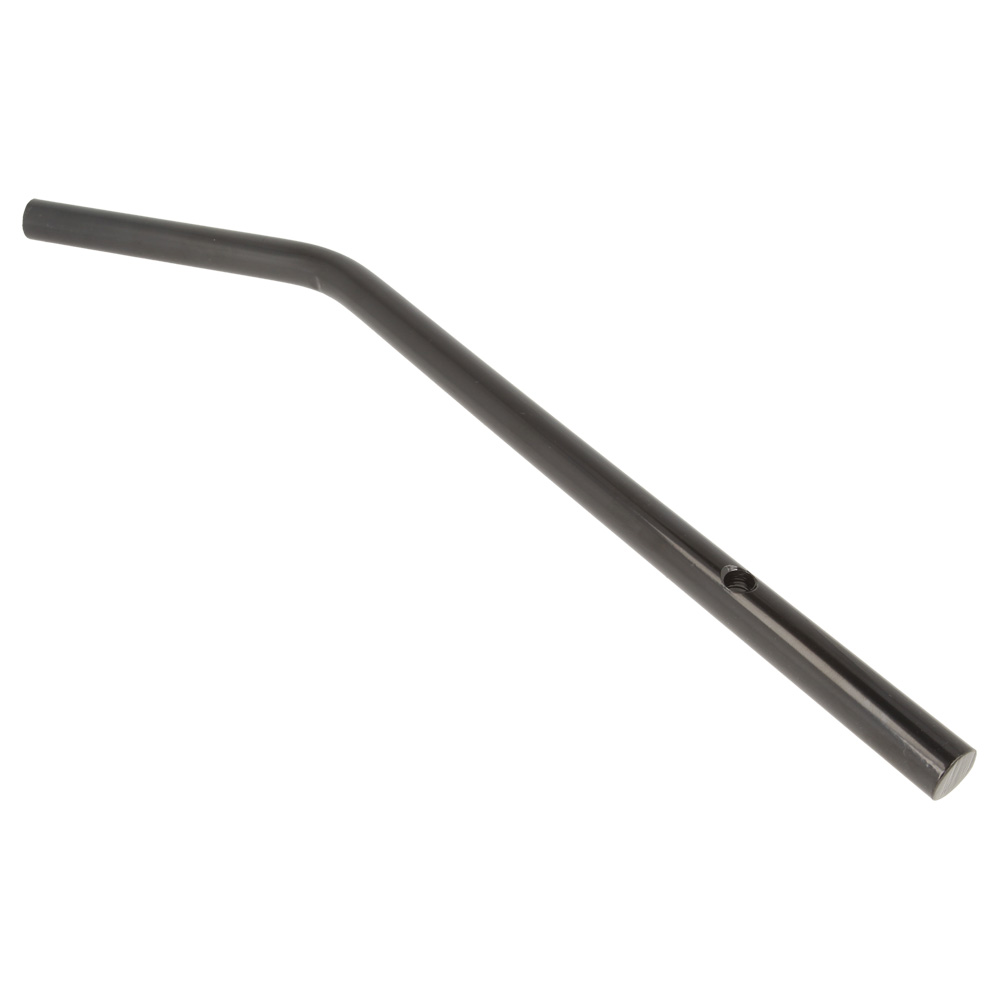

	17		EFL66151649 Available to backorder	Arm		£36.96 £30.80
	20		EFL66151119 Available to backorder	Pin		£4.56 £3.80
	21		EFL66150883 Available to backorder	Clip		£3.36 £2.80

Description

Bertolini 195 S Parts Diagram
