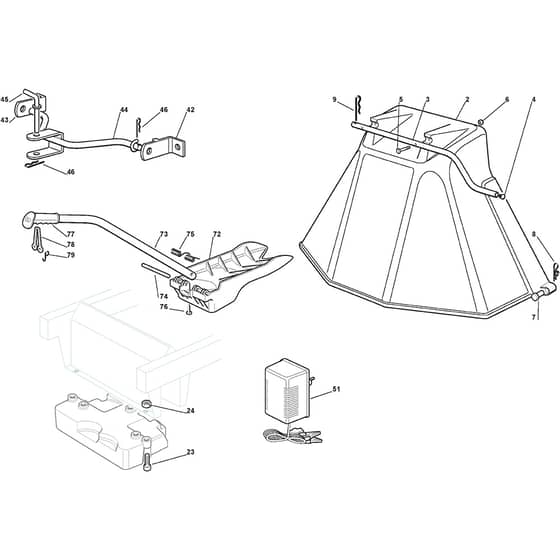

1840H - 2012 - 2T0950283/MFR - Mountfield Ride On Mower Options Diagram

Description

Mountfield 1840H Parts Diagram

Product Name - 1840H

Model Year - 2012

Model Type - TS 102 Hydro

Art.N - 2T0950283/MFR

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO382400003/1 Available to backorder	Ejection Guard From 01-9-2006	£61.93 £51.61
3	MO325869043/0 Available to backorder	Rear Support	£18.59 £15.49
4	MO118566112/0 Available to backorder	Polyethylene Push Road D.20Inch	£1.55 £1.29
5	MO112689515/0 Available to backorder	Screw	£1.55 £1.29
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO125510022/1 Available to backorder	Pin From 01-9-2012	£3.10 £2.58
8	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
23	MO112760520/0 Available to backorder	Screw	£1.55 £1.29
24	MO112155000/0 In stock	Nut	£1.55 £1.29
42	MO382735502/0 Available to backorder	Bracket	£13.93 £11.61
43	MO325774213/0 Available to backorder	Bracket	£5.64 £4.70
44	MO382033115/0 Available to backorder	Tow Bar From 01-9-2014	£43.64 £36.37
45	MO125510021/1 In stock	Hitch Pin	£11.12 £9.27
46	MO124487999/0 Available to backorder	Spring Pin	£1.82 £1.52
51	MO1134-9250-01 In stock	Battery Charger 12V 1A - Uk Plugg UK plug From 01-9-2009	£60.06 £50.05
72	MO325140097/0 Available to backorder	Deflector	£33.79 £28.16
73	MO325394005/0 Available to backorder	Handle	£21.83 £18.19
74	MO125510077/0 Available to backorder	Pin	£3.38 £2.82
75	MO125430245/0 Available to backorder	Spring	£3.52 £2.93
76	MO112735405/0 Available to backorder	Screw	£1.55 £1.29
77	MO325280000/1 Available to backorder	Handgrip	£3.10 £2.58
78	MO125840011/1 In stock	Tie Rod From 01-9-2003	£7.19 £5.99
79	MO125253004/0 Available to backorder	Fixing Hook	£1.55 £1.29
