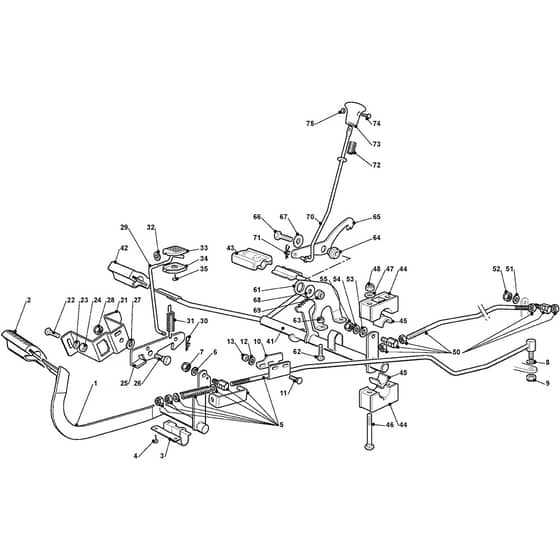

1840H - 2011-2013 - 2T0950283/M11 - Mountfield Ride On Mower Brake and Gearbox Controls Diagram

Description

Mountfield 1840H Parts Diagram

Product Name - 1840H

Model Year - 2011-2013

Model Type - TS 102 Hydro

Art.N - 2T0950283/M11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382500011/2 Available to backorder	Pedal	£76.02 £63.35
2	MO325110416/0 Available to backorder	Clamp Cover	£10.84 £9.03
3	MO325547081/2 Available to backorder	Plate	£5.06 £4.22
4	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
5	MO382000582/0 Available to backorder	Rod	£52.08 £43.40
6	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
8	MO112521360/0 In stock	Washer	£1.55 £1.29
10	MO325547281/1 Available to backorder	Plate	£6.62 £5.52
21	MO325785143/1 Available to backorder	Support	£4.33 £3.61
22	MO112815210/0 Available to backorder	Screw	£1.55 £1.29
25	MO325253001/0 Available to backorder	Hook	£4.08 £3.40
26	MO122524970/2 Available to backorder	Fulcrum Pin	£1.90 £1.58
27	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
28	MO112155000/0 In stock	Nut	£1.55 £1.29
29	MO125033097/0 Available to backorder	Rod	£13.87 £11.56
30	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
31	MO125430213/0 Available to backorder	Spring	£1.69 £1.41
32	MO112523020/0 In stock	Washer	£1.55 £1.29
33	MO325592001/1 Available to backorder	Knob	£1.40 £1.17
34	MO325592002/1 Available to backorder	Knob	£1.40 £1.17
35	MO112727815/0 Available to backorder	Screw	£1.40 £1.17
41	MO382000389/1 Available to backorder	Gear Control Axle	£84.47 £70.39
42	MO325110417/0 Available to backorder	Clamp Cover Front	£10.84 £9.03
43	MO325110418/0 Available to backorder	Clamp Cover Rear	£10.84 £9.03
44	MO325785354/0 Available to backorder	Support	£2.12 £1.77
45	MO325034003/0 Available to backorder	Brass	£1.82 £1.52
46	MO112815271/0 Available to backorder	Screw	£1.69 £1.41
47	MO112523040/0 In stock	Washer	£1.49 £1.24
48	MO112154510/0 In stock	Nut	£1.55 £1.29
50	MO382000579/0 Available to backorder	Rod	£33.79 £28.16
61	MO325774477/0 Available to backorder	Clamp	£24.78 £20.65
63	MO112292102/0 In stock	Nut	£1.69 £1.41
64	MO125040638/0 Available to backorder	Bushing	£5.48 £4.57
65	MO325022000/1 Available to backorder	Hook	£39.42 £32.85
66	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
67	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
68	MO322672152/0 Available to backorder	Antifriction Washer	£1.82 £1.52
70	MO125033091/0 Available to backorder	Rod	£13.31 £11.09
71	MO124487995/0 Available to backorder	Cotter Pin	£1.55 £1.29
72	MO125430232/0 Available to backorder	Spring	£1.55 £1.29
73	MO325605002/0 Available to backorder	Button	£2.40 £2.00
74	MO112726389/0 Available to backorder	Screw	£1.49 £1.24
75	MO112290800/0 Available to backorder	Hexagon Nut M4 Uni 5588 Acc.6S	£1.55 £1.29
