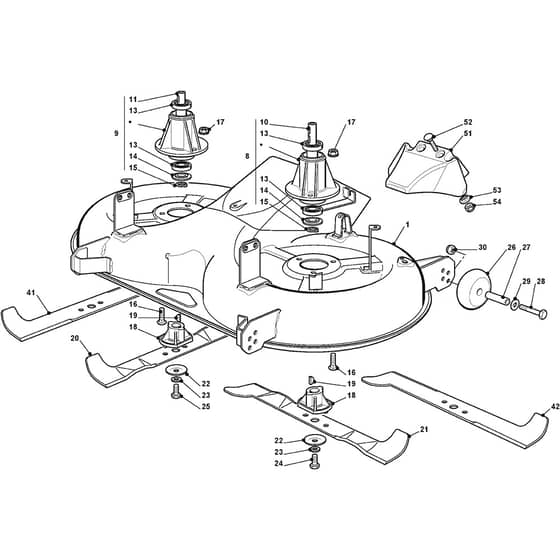

1840H - 2010 - 2T5662483/UM9 - Mountfield Ride On Mower Cutting Plate Diagram

Description

Mountfield 1840H Parts Diagram

Product Name - 1840H

Model Year - 2010

Model Type - TS 102 Hydro

Art.N - 2T5662483/UM9

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
8	MO382207200/2LC Available to backorder	Main Blade Shaft Ass.Y	£101.35 £84.46
9	MO382207201/3LC Available to backorder	Secondary Blade Shaft Ass.Y	£91.51 £76.26
10	MO125020800/1 Available to backorder	Main Blade Shaft	£46.46 £38.72
11	MO125020801/2 Available to backorder	Secondary Blade Shaft	£42.23 £35.19
13	MO119216047/0 In stock	Bearing	£15.78 £13.15
14	MO325160501/1 Available to backorder	Dust Cover Disc	£1.49 £1.24
15	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
16	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
17	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
18	MO125463200/0 In stock	Blade Holder	£9.08 £7.57
19	MO112139100/0 In stock	Key	£1.55 £1.29
20	MO182004348/0 In stock	Right Mulching Blade. Winged	£30.97 £25.81
21	MO182004347/0 In stock	Left Mulching Blade. Winged	£30.97 £25.81
22	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
23	MO112523080/0 In stock	Washer	£1.55 £1.29
24	MO112735694/0 In stock	Screw	£1.97 £1.64
25	MO112735695/1 In stock	Screw	£3.79 £3.16
26	MO182700001/0 In stock	Levelling Small Wheel	£5.48 £4.57
27	MO125510072/1 In stock	Pin	£1.82 £1.52
28	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
29	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
30	MO112293201/0 In stock	Nut	£1.69 £1.41
41	MO182004341/1 In stock	Right Blade. Winged	£29.63 £24.69
42	MO182004340/1 In stock	Left Blade. Winged	£29.63 £24.69
51	MO325140100/0 Available to backorder	Deflector From 01-9-2008	£20.34 £16.95
52	MO112815210/0 Available to backorder	Screw	£1.55 £1.29
53	MO125038002/1 In stock	Bushing	£1.55 £1.29
54	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
