Cobra 17CX10B - 17" 10 Blade Cassette Fortis17B May 2023 Main Diagram

Description

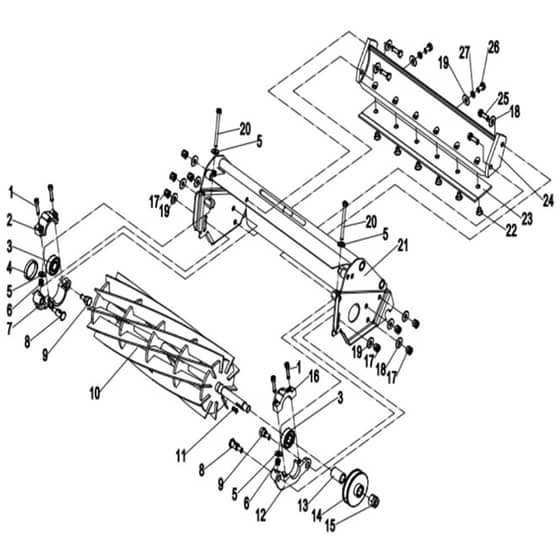

Cobra 17CX10B Cylinder Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO7240622 Available to backorder	Hexagon Socket Head Screw M6×30-Black	£1.20 £1.00
2	CO4070810 Available to backorder	Right Bearing Housing (Upper)	£6.06 £5.05
3	CO7061237 Available to backorder	Deep Groove Ball Bearing 6203Z-Nsk	£10.70 £8.92
4	CO4163490 Available to backorder	Spacer	£5.54 £4.62
5	CO7030604 Available to backorder	Washer - A 6	£1.20 £1.00
6	CO7020615 In stock	Hex Lock Nut M6-Lh	£1.20 £1.00
7	CO4070820 Available to backorder	Right Bearing Housing (Lower)	£13.72 £11.43
8	CO1070290 Available to backorder	Bolt (With Holes)	£5.59 £4.66
9	CO1070280 Available to backorder	Bolt	£4.02 £3.35
11	CO7110501 Available to backorder	Key-A 5×5×16	£1.25 £1.04
12	CO4070800 Available to backorder	Left Bearing Housing (Lower)	£13.72 £11.43
13	CO4034702 Available to backorder	Pulley Spacer	£4.63 £3.86
14	CO1042023 Available to backorder	Drive Pulley	£25.45 £21.21
15	CO7021407 Available to backorder	Hex Lock Nut M14	£1.25 £1.04
16	CO4070790 Available to backorder	Left Bearing Housing (Upper)	£6.06 £5.05
17	CO7020803 Available to backorder	Hex Lock Nut M8	£1.25 £1.04
18	CO7030819 Available to backorder	Flat Washer - A 8	£1.25 £1.04
19	CO7030813 Available to backorder	Washer - A 8	£1.25 £1.04
20	CO7290612 In stock	Slotted Cylindrical Head Screw M6×80-L	£4.90 £4.08
21	CO4034922A-9005 Available to backorder	Bracket(17")	£84.43 £70.36
22	CO7260813 Available to backorder	Screw-M8×12-A2-70	£1.74 £1.45
24	CO4034921-9005 Available to backorder	Bed Knife Holder (17")	£115.38 £96.15
25	CO7010821 Available to backorder	Hex Head Bolt - Full Thread M8×25	£1.25 £1.04
26	CO7240809 Available to backorder	Hexagon Socket Head Screw M8×16	£1.25 £1.04
27	CO7040802 Available to backorder	Spring Washer 8	£1.25 £1.04
