1740H - 2003 - 299941633/MOU - Mountfield Ride On Mower B&S Engine Diagram

Description

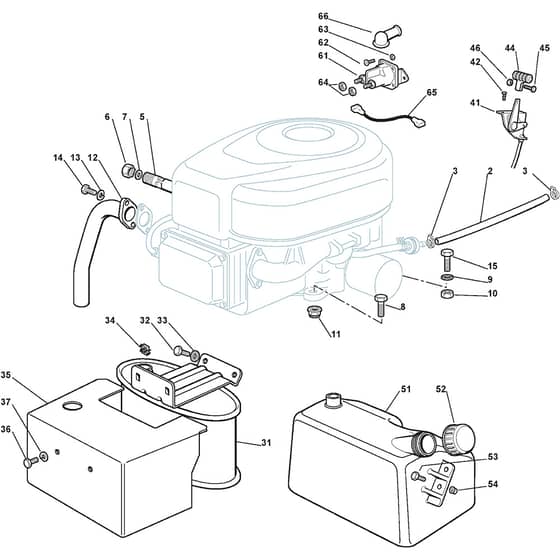

Mountfield 1740H Parts Diagram

Product Name - 1740H

Model Year - 2003

Model Type - TCP 102 Hydro

Art.N - 299941633/MOU

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325869016/1 Available to backorder	Fuel Pipe L300	£8.02 £6.68
3	MO118375062/0 Available to backorder	Fair Led	£1.82 £1.52
5	MO125598050/0 Available to backorder	Oil Discharge Extension	£8.02 £6.68
6	MO118737849/0 Available to backorder	Plug	£2.53 £2.11
7	MO118401001/1 Available to backorder	Oil Drain Seal	£1.55 £1.29
8	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
11	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
12	MO118738206/0 Available to backorder	Exhaust Pipe	£81.66 £68.05
14	MO112735530/0 Available to backorder	Screw	£1.82 £1.52
15	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
31	MO182750010/0 Available to backorder	Muffler	£123.89 £103.24
32	MO112793102/0 In stock	Screw	£1.55 £1.29
33	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
34	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
35	MO382598009/2 Available to backorder	Muffler Protection From 01-9-2003	£42.23 £35.19
36	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
37	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
41	MO182000200/1 Available to backorder	Throttle Cable	£24.49 £20.41
42	MO125943012/0 Available to backorder	Screw	£1.55 £1.29
44	MO125394501/0 Available to backorder	Knob	£1.55 £1.29
45	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
46	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
51	MO125735110/3 Available to backorder	Tank From 01-9-2004	£53.72 £44.77
52	MO125795000/1 In stock	Fuel Cap From 01-9-2003	£7.74 £6.45
53	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
54	MO112500092/0 Available to backorder	Rivet	£1.55 £1.29
61	MO118736113/0 In stock	Starter Relay	£38.00 £31.67
62	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
63	MO112292102/0 In stock	Nut	£1.69 £1.41
64	MO9743-5121-32 Available to backorder	Nut	£1.40 £1.17
65	MO125065017/0 Available to backorder	Cable	£9.43 £7.86
66	MO118564861/2 Available to backorder	Red Rubber Terminal Cover	£6.76 £5.63
