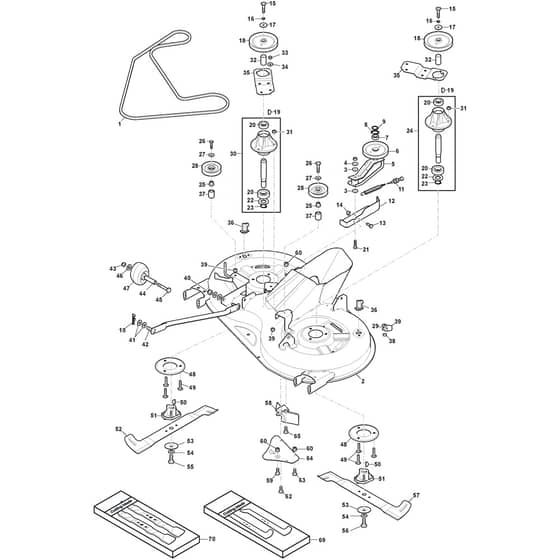

1738H - 2025 - 2T0830483/M25 - Mountfield Ride On Mower Cutting plate Diagram

Description

Mountfield 1738H Parts Diagram

Product Name - 1738H

Model Year - 2025

Model Type - TCNS 98 Hydro

Art.N - 2T0830483/M25

	Part No.	Details
1	MO135061509/0LC In stock	Drive Belt	£67.90 £56.58
2	MO382564118/1 Available to backorder	Cutting Plate Black	£457.50 £381.25
3	MO322672152/0 Available to backorder	Antifriction Washer	£1.84 £1.53
4	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
5	MO382318141/2 In stock	Lever	£36.59 £30.49
6	MO125601564/1 Available to backorder	Pulley	£45.04 £37.53
7	MO119216048/0 In stock	Bearing	£18.31 £15.26
8	MO112610800/0 In stock	Seeger	£1.70 £1.42
9	MO112609200/0 Available to backorder	Seeger	£1.63 £1.36
10	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
12	MO325785391/1 Available to backorder	Bracket	£15.20 £12.67
13	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
14	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
15	MO112793102/0 In stock	Screw	£1.55 £1.29
16	MO112583500/0 In stock	Grower	£1.55 £1.29
17	MO125670007/0 In stock	Washer	£1.97 £1.64
18	MO125601604/0 Available to backorder	Pulley	£52.08 £43.40
19	MO112139480/0 In stock	Feather	£1.70 £1.42
20	MO119216047/0 In stock	Bearing	£15.78 £13.15
21	MO112691700/0 Available to backorder	Screw	£1.84 £1.53
22	MO325160501/1 Available to backorder	Dust Cover Disc	£1.55 £1.29
23	MO112609260/0 In stock	Seeger	£1.84 £1.53
25	MO125160110/0 Available to backorder	Spacer	£3.38 £2.82
26	MO112691600/0 Available to backorder	Screw	£1.84 £1.53
27	MO112524010/0 Available to backorder	Washer	£1.84 £1.53
28	MO125601613/1 In stock	Pulley	£16.99 £14.16
29	MO1134-5626-03 Available to backorder	Spacer	£2.53 £2.11
32	MO125160098/0 Available to backorder	Spacer	£4.24 £3.53
33	MO112293201/0 In stock	Nut	£1.70 £1.42
34	MO112523060/0 In stock	Washer	£1.55 £1.29
35	MO325774617/0 Available to backorder	Stiffening	£13.66 £11.38
38	MO122170600/0 Available to backorder	Spacer	£1.82 £1.52
39	MO9578-0028-01 Available to backorder	Tube Clamp	£9.42 £7.85
40	MO112156602/0 In stock	Nut	£1.39 £1.16
41	MO325670008/1 In stock	Washer	£1.55 £1.29
44	MO125160072/0 In stock	Spacer	£3.92 £3.27
45	MO112692100/0 Available to backorder	Screw	£2.82 £2.35
46	MO112521350/0 In stock	Washer	£1.55 £1.29
47	MO182700006/0 In stock	Anti Scalp Wheel Ø95	£17.68 £14.73
48	MO325160505/0 Available to backorder	Disc	£12.80 £10.67
49	MO112818700/0 In stock	Screw	£1.55 £1.29
50	MO112139100/0 In stock	Key	£1.55 £1.29
51	MO125463200/0 In stock	Blade Holder	£9.07 £7.56
52	MO182004362/0 In stock	Right Blade. Winged	£23.65 £19.71
53	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
54	MO112523080/0 In stock	Washer	£1.55 £1.29
55	MO112735695/1 In stock	Screw	£3.79 £3.16
56	MO112735694/0 In stock	Screw	£1.97 £1.64
57	MO182004363/0 In stock	Left Blade. Winged	£23.65 £19.71
58	MO325140111/0 Available to backorder	Deflector	£6.76 £5.63
59	MO112790781/0 In stock	Screw	£1.55 £1.29
60	MO112154510/0 In stock	Nut	£1.55 £1.29
62	MO112815220/0 Available to backorder	Screw	£1.63 £1.36
63	MO112815210/0 Available to backorder	Screw	£1.63 £1.36
64	MO325785509/0 Available to backorder	Rear Deflector Suppot	£10.42 £8.68
65	MO112791213/1 In stock	Screw	£1.55 £1.29
69	MO1134-9226-01 In stock	Winged Blades	£65.98 £54.98
70	MO1134-9234-01 Available to backorder	Mulching Blades	£48.48 £40.40
