Description

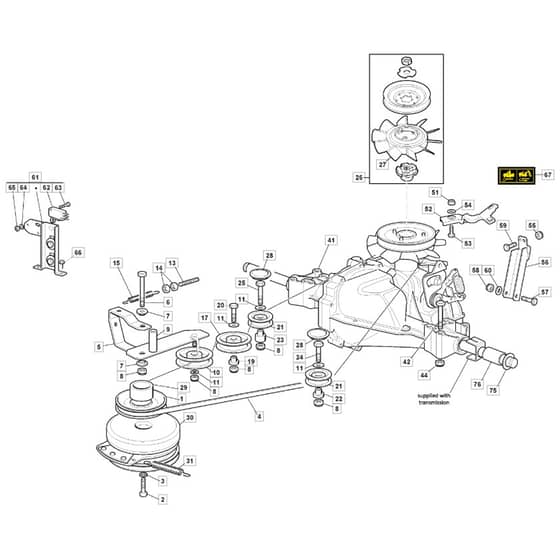

Mountfield 1736H Twin Parts Diagram

Product Name - 1736H Twin

Model Year - 2022-2023

Model Type - TCS 92 Hydro

Art.N - 2T0785483/M22

Engine Model - ST 600 Twin Powered by STIGA

Ref. Img. Part No. Details
  1 Pulley
Pulley
MO125601577/0 Out of stock
Pulley
£43.33 £36.11

  2 Screw
Screw
MO112737320/0 Out of stock
Screw
£4.20 £3.50

  3 Washer
Washer
MO112543000/0 Out of stock
Washer
£1.49 £1.24

  4 Belt
Belt
MO135062019/0 In stock
Belt
£38.52 £32.10

  5 Lever
Lever
MO382318165/2 Out of stock
Lever
£26.69 £22.24

  6 Screw
Screw
MO112793905/0 Out of stock
Screw
£1.90 £1.58

  7 Bushing
Bushing
MO125038002/1 Out of stock
Bushing
£1.49 £1.24

  9 Spacer
Spacer
MO125160027/0 Out of stock
Spacer
£2.44 £2.03

  10 Pulley
Pulley
MO125601554/0 In stock
Pulley
£23.40 £19.50

  11 Washer
Washer
MO112523060/0 In stock
Washer
£1.49 £1.24

  13 Tie Rod
Tie Rod
MO125840010/1 Out of stock
Tie Rod
£1.90 £1.58

  14 Nut
Nut
MO112293200/0 In stock
Nut
£1.63 £1.36

  15 Spring
Spring
MO125430219/1 Out of stock
Spring
£3.53 £2.94

  17 Pulley
Pulley
MO325601599/0 In stock
Pulley
£17.52 £14.60

  19 Spacer
Spacer
MO125160056/0 Out of stock
Spacer
£4.48 £3.73

  20 Screw
Screw
MO112691800/0 Out of stock
Screw
£1.49 £1.24

  21 Pulley
Pulley
MO325601570/1 Out of stock
Pulley
£23.44 £19.53

  22 Left Spacer
Left Spacer
MO125160030/2 Out of stock
Left Spacer
£6.23 £5.19

  23 Spacer
Spacer
MO125160024/2 Out of stock
Spacer
£7.98 £6.65

  24 Screw
Screw
MO112691115/0 Out of stock
Screw
£1.49 £1.24

  25 Screw
Screw
MO112691400/0 Out of stock
Screw
£1.49 £1.24

  26 Fan Kit
Fan Kit
MO118802723/0 Out of stock
Fan Kit
£155.76 £129.80

  27 Fan
Fan
MO118870130/0 Out of stock
Fan
£35.02 £29.18

  28 Cover
Cover
MO125109521/1 Out of stock
Cover
£1.49 £1.24

  29 Spacer
Spacer
MO125160021/0 Out of stock
Spacer
£5.63 £4.69

  30 Electromagnetic Clutch
Electromagnetic Clutch
MO118399077/1 Out of stock
Electromagnetic Clutch
£270.89 £225.74

  31 Brake Spring
Brake Spring
MO125430210/1 Out of stock
Brake Spring
£2.58 £2.15

  41 Transmission Unit Hyg T2
Transmission Unit Hyg T2
MO118400990/0 Out of stock
Transmission Unit Hyg T2
£1,919.52 £1,599.60

  42 Screw
Screw
MO112691600/0 Out of stock
Screw
£1.75 £1.46

  44 Nut
Nut
MO112154210/0 In stock
Nut
£1.80 £1.50

  51 Nut
Nut
MO112154510/0 In stock
Nut
£1.63 £1.36

  52 Lever
Lever
MO325318253/0 Out of stock
Lever
£4.60 £3.83

  53 Screw
Screw
MO112791213/1 Out of stock
Screw
£1.63 £1.36

  54 Washer
Washer
MO112523040/0 In stock
Washer
£1.63 £1.36

  55 Nut
Nut
MO112293201/0 In stock
Nut
£1.63 £1.36

  56 Support
Support
MO382785199/0 Out of stock
Support
£25.26 £21.05

  57 Screw
Screw
MO112691700/0 Out of stock
Screw
£1.75 £1.46

  58 Nut
Nut
MO112155000/0 In stock
Nut
£1.63 £1.36

  59 Screw
Screw
MO112793701/0 Out of stock
Screw
£1.63 £1.36

  60 Washer
Washer
MO112521350/0 In stock
Washer
£1.63 £1.36

  61 Switch Ass.Y
Switch Ass.Y
MO382394853/0LC Out of stock
Switch Ass.Y
£54.18 £45.15

  62 Microswitch
Microswitch
MO119410609/1LC In stock
Microswitch
£24.84 £20.70

  63 Screw
Screw
MO112735602/0 Out of stock
Screw
£1.49 £1.24

  64 Grower
Grower
MO112581100/0 Out of stock
Grower
£1.28 £1.07

  65 Nut
Nut
MO112290791/0 Out of stock
Nut
£1.49 £1.24

  66 Screw
Screw
MO112735110/0 Out of stock
Screw
£1.49 £1.24

  67 Label
Label
MO114370818/0 Out of stock
Label
£2.17 £1.81

  75 Washer
Washer
MO125670005/2 Out of stock
Washer
£3.92 £3.27

  76 Spacer
Spacer
MO125160023/0 Out of stock
Spacer
£7.03 £5.86
