1736H Twin - 2022-2023 - 2T0785483/M22 - Mountfield Ride On Mower Ignition Coil Diagram

Description

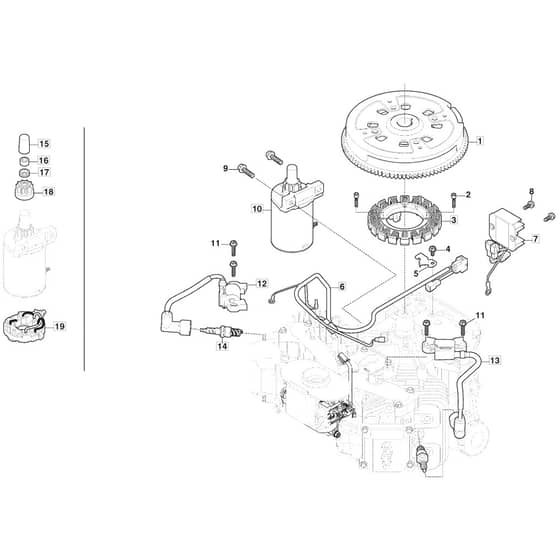

Mountfield 1736H Twin Parts Diagram

Product Name - 1736H Twin

Model Year - 2022-2023

Model Type - TCS 92 Hydro

Art.N - 2T0785483/M22

Engine Model - ST 600 Twin Powered by STIGA

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118551593/0 Out of stock	Flywheel	£201.53 £167.94
3	MO118551594/0 Out of stock	Coil Assy. Charge	£62.81 £52.34
6	MO118551599/0 Out of stock	Harness Assy	£12.34 £10.28
7	MO118551596/0 Out of stock	Rectfier	£52.34 £43.62
10	MO118551595/0 Out of stock	Start Motor Assy	£138.24 £115.20
12	MO118551598/0 Out of stock	Electronic Coil	£35.60 £29.67
13	MO118551597/0 Out of stock	Electronic Coil	£35.60 £29.67
14	9408 In stock	Spark Plug (Rn9Yc) RN9YC	£4.56 £3.80
15	MO118552282/0 Out of stock	Plug	£1.49 £1.24
16	MO118552283/0 Out of stock	Collar	£3.92 £3.27
17	MO118552284/0 Out of stock	Spring	£6.50 £5.42
18	MO118552285/0 Out of stock	Pinion	£35.21 £29.34
19	MO118552281/0 Out of stock	Carbon Brush	£22.62 £18.85
