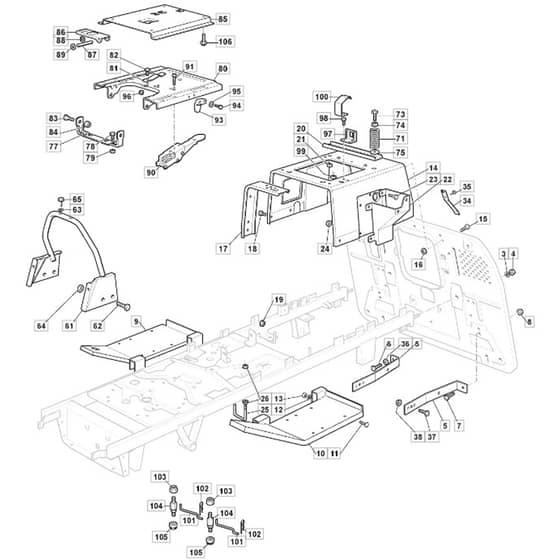

Mountfield 1736H Twin Parts Diagram

Product Name - 1736H Twin

Model Year - 2022-2023

Model Type - TCS 92 Hydro

Art.N - 2T0785483/M22

Engine Model - ST 600 Twin Powered by STIGA

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112523060/0 In stock	Washer	£1.49 £1.24
4	MO9739-1031-22 In stock	Nut	£1.90 £1.58
5	MO325774273/2 Out of stock	Stiffening	£8.53 £7.11
6	MO112691100/0 Out of stock	Screw	£1.63 £1.36
7	MO112793102/0 Out of stock	Screw	£1.63 £1.36
9	MO382510041/2 Out of stock	Right Footboard Support	£78.56 £65.47
10	MO382510043/2 Out of stock	Left Footboard Support	£78.56 £65.47
11	MO112815245/0 Out of stock	Screw	£1.49 £1.24
12	MO112523040/0 In stock	Washer	£1.63 £1.36
13	MO112154510/0 In stock	Nut	£1.63 £1.36
14	MO325785133/5 Out of stock	Seat Support	£66.37 £55.31
15	MO112791011/0 Out of stock	Screw	£1.36 £1.13
16	MO112292102/0 In stock	Nut	£1.63 £1.36
17	MO325650065/1 Out of stock	Pulley Stiffening	£8.93 £7.44
18	MO112791400/0 In stock	Screw	Was £1.34 £1.12 Special Price £0.89 £0.74
20	MO325650067/1 Out of stock	Pulley Stiffening	£5.69 £4.74
21	MO112360420/0 Out of stock	Nut	£1.49 £1.24
22	MO325785137/1 Out of stock	Support	£33.86 £28.22
25	MO125580019/1 Out of stock	Belt Guide (Hydro)	£3.79 £3.16
34	MO125430238/1 Out of stock	Spring	£3.92 £3.27
35	MO112731580/0 Out of stock	Screw	£1.49 £1.24
36	MO112154220/0 Out of stock	Nut	£1.49 £1.24
37	MO112800815/0 Out of stock	Screw	£1.49 £1.24
61	MO382650045/0 Out of stock	Central Stiffening Support Frame	£39.28 £32.73
63	MO112521330/0 Out of stock	Washer	£1.49 £1.24
65	MO112731350/0 Out of stock	Screw	£1.49 £1.24
71	MO125430205/1 Out of stock	Spring	£5.69 £4.74
73	MO125943001/1 Out of stock	Screw	£1.90 £1.58
75	MO112523070/0 Out of stock	Washer	£1.49 £1.24
77	MO382774305/0 Out of stock	Seat Clamp Support	£11.24 £9.37
78	MO112792611/0 Out of stock	Screw	£1.49 £1.24
79	MO112293201/0 In stock	Nut	£1.63 £1.36
80	MO382785301/0 Out of stock	Fixed Seat Support	£41.99 £34.99
81	MO125430203/1 Out of stock	Spring	£3.25 £2.71
83	MO122524970/3 Out of stock	Pin	£1.63 £1.36
84	MO112155010/0 Out of stock	Nut	£2.04 £1.70
85	MO325785147/2 Out of stock	Seat Support	£39.28 £32.73
86	MO325318109/1 Out of stock	Stop Lever	£4.33 £3.61
87	MO125510000/0 Out of stock	Pin	£1.36 £1.13
88	MO125430202/1 Out of stock	Spring	£1.63 £1.36
89	MO112604897/0 Out of stock	Elastic Washer	£1.49 £1.24
90	MO382318316/1 Out of stock	Opc Spring And Lever Assy	£39.28 £32.73
91	MO112735661/0 Out of stock	Screw	£1.63 £1.36
93	MO325060049/0 Out of stock	Seat Switch Cam	£2.17 £1.81
94	MO112815050/0 Out of stock	Screw	£1.49 £1.24
95	MO112523020/0 Out of stock	Washer	£1.49 £1.24
96	MO112154330/0 Out of stock	Nut	£1.49 £1.24
97	MO325755025/3 Out of stock	Bracket	£5.54 £4.62
98	MO112727796/0 Out of stock	Screw	£1.49 £1.24
99	MO9739-0531-22 Out of stock	Nut	£2.04 £1.70
100	MO325430255/0 Out of stock	Spring	£3.79 £3.16
101	MO125510119/0 Out of stock	Tie Rod	£12.80 £10.67
102	MO124487997/0 Out of stock	Cotter Pin	£1.49 £1.24
103	MO112155000/0 Out of stock	Nut	£1.63 £1.36
104	MO125510168/0 Out of stock	Pin	£4.33 £3.61
106	MO9959-0820-16 Out of stock	Screw M6Sf M8 X 20 Tl	£1.49 £1.24
