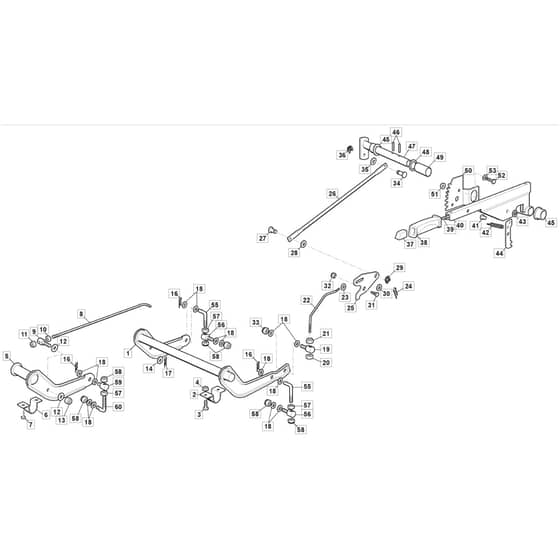

Description

Mountfield 1736H Twin Parts Diagram

Product Name - 1736H Twin

Model Year - 2022-2023

Model Type - TCS 92 Hydro

Art.N - 2T0785483/M22

Engine Model - ST 600 Twin Powered by STIGA

Ref. Img. Part No. Details
  2 Plate
Plate
MO325547037/2 Out of stock
Plate
£3.25 £2.71

  3 Screw
Screw
MO112791011/0 Out of stock
Screw
£1.36 £1.13

  4 Nut
Nut
MO112292102/0 In stock
Nut
£1.63 £1.36

  5 Fulcrum Lever
Fulcrum Lever
MO382318137/0 Out of stock
Fulcrum Lever
£33.86 £28.22

  6 Plate
Plate
MO325547041/1 Out of stock
Plate
£5.15 £4.29

  7 Screw
Screw
MO112731601/0 Out of stock
Screw
£1.90 £1.58

  8 Rod
Rod
MO125033051/1 Out of stock
Rod
£16.60 £13.83

  9 Pin
Pin
MO125510040/2 Out of stock
Pin
£5.54 £4.62

  10 Nut
Nut
MO112293200/0 In stock
Nut
£1.63 £1.36

  11 Nut
Nut
MO112155000/0 Out of stock
Nut
£1.63 £1.36

  12 Antifriction Washer
Antifriction Washer
MO325670011/0 Out of stock
Antifriction Washer
£1.49 £1.24

  14 Washer
Washer
MO112521350/0 In stock
Washer
£1.63 £1.36

  16 Cotter Pin
Cotter Pin
MO125110800/0 Out of stock
Cotter Pin
£1.75 £1.46

  17 Cotter Pin
Cotter Pin
MO124487997/0 Out of stock
Cotter Pin
£1.49 £1.24

  18 Washer
Washer
MO325670008/1 Out of stock
Washer
£1.63 £1.36

  19 Pin
Pin
MO125510007/2 Out of stock
Pin
£5.42 £4.52

  20 Nut
Nut
MO112295200/0 Out of stock
Nut
£1.49 £1.24

  21 Nut
Nut
MO112156602/0 In stock
Nut
£1.36 £1.13

  26 Reinforcement Rod
Reinforcement Rod
MO325033049/1 Out of stock
Reinforcement Rod
£16.58 £13.82

  27 Pin
Pin
MO125510053/2 Out of stock
Pin
£1.90 £1.58

  29 Plate
Plate
MO112436050/0 In stock
Plate
£1.75 £1.46

  30 Washer
Washer
MO112521360/0 In stock
Washer
£1.63 £1.36

  31 Pin
Pin
MO122524970/3 Out of stock
Pin
£1.63 £1.36

  32 Nut
Nut
MO112155010/0 Out of stock
Nut
£2.04 £1.70

  37 Button
Button
MO125605000/1 Out of stock
Button
£2.17 £1.81

  38 Knob
Knob
MO325394536/0 Out of stock
Knob
£1.63 £1.36

  39 Rod
Rod
MO125033002/1 Out of stock
Rod
£4.07 £3.39

  40 Deck Lifting Lever
Deck Lifting Lever
MO382318139/1 Out of stock
Deck Lifting Lever
£39.28 £32.73

  41 Pin
Pin
MO125510011/1 Out of stock
Pin
£1.49 £1.24

  42 Spring
Spring
MO125430208/1 Out of stock
Spring
£3.38 £2.82

  43 Crown Fastener
Crown Fastener
MO112604899/0 In stock
Crown Fastener
£1.63 £1.36

  44 Dog Plate
Dog Plate
MO325470901/1 Out of stock
Dog Plate
£11.10 £9.25

  45 Bushing
Bushing
MO122034523/0 Out of stock
Bushing
£1.49 £1.24

  46 Pin
Pin
MO112620206/0 Out of stock
Pin
£1.36 £1.13

  48 Antifriction Washer
Antifriction Washer
MO322672153/0 Out of stock
Antifriction Washer
£1.49 £1.24

  49 Spacer
Spacer
MO125160025/1 Out of stock
Spacer
£5.96 £4.97

  50 Left Sector
Left Sector
MO325735506/2 Out of stock
Left Sector
£21.26 £17.72

  51 Nut
Nut
MO112293201/0 In stock
Nut
£1.63 £1.36

  52 Screw
Screw
MO112792611/0 Out of stock
Screw
£1.49 £1.24

  56 Pin
Pin
MO125510024/1 Out of stock
Pin
£5.96 £4.97

  59 Pin
Pin
MO125510069/1 Out of stock
Pin
£8.27 £6.89
